CAW0079 CALIBRE Digital Tachometer

CAW0079 CALIBRE Digital Tachometer

Digital tachometer provides accurate non-contact speed measurement. To use the digital tachometer, aim it at a rotating object, activate the device, and read the RPM, count, or frequency on the LCD screen. It stores 5 max, min, and average results.

Manual

Descriptions:

  • Digital Tachometer is able to measure the rolling speed accurately without direct contact.
  • It is able to measure speed (RPM), count (CNT), and frequency (HZ) with high resolution and wide range measurement.

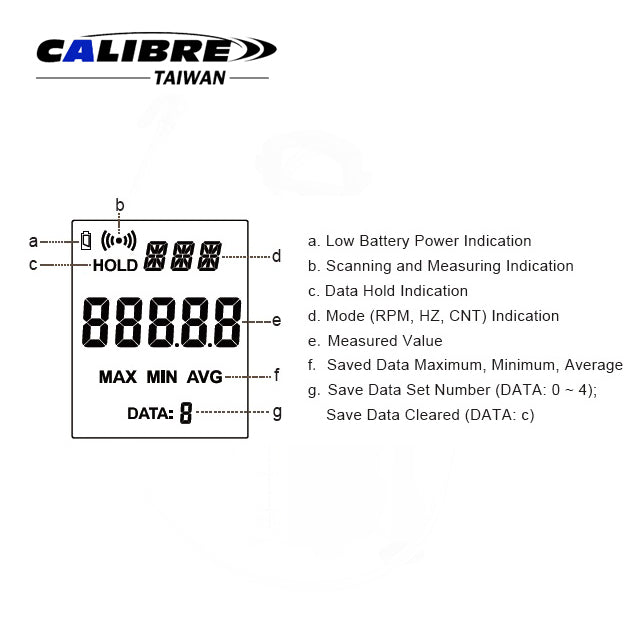

  • The result will be display by large LCD with background light.
  • User is able to store 5 sets of measured results, which includes 5 maximum, 5 minimum, and 5 average values.
Feature:
  • Display: 5 digits
  • Accuracy: ± (0.05%+1 digits)
  • Sampling Time: 0.5s (≧120 rpm)
  • Non-contact Measurement: 2 ~ 99999 rpm
  • Counting range: 1 ~ 99999
  • Resolution: 0.1 (rpm / Hz); 1 (counts)
  • Measuring Distance: 50 ~ 500mm
  • Automatic Power Off: 30 sec (not functioning during AUTOMATIC MODE)
  • Power Consumption: about 45mA
  • Battery: 9V
  • Working Temperature: 0 ~ 50°C (32 ~ 122°F)
  • Storage Temperature: -10 ~ 60°C (14 ~ 140°F)
Packaging:
  • 1pc/Color Box
  • 50pc/ctn
