CAW0051 CALIBRE Sonic Belt Tension Tester
CAW0051 CALIBRE Sonic Belt Tension Tester
Belt tension tool
Belt tension tool with portable probe stores 20 frequency sets, up to 600Hz. Auto power-off after 5 mins or manually via ON/OFF switch.
Manual Download Here
Feature:
- Portable Probe
- 20 sets Frequency Storage
- Maximum Frequency: 600Hz
- Automatically Power-off: The instrument will automatically power off when no
- operation for 5 minutes.
- User can also make the instrument power off by pressing ON/OFF switch for 2S.
- Power Source: 2 AAA battery (not included)

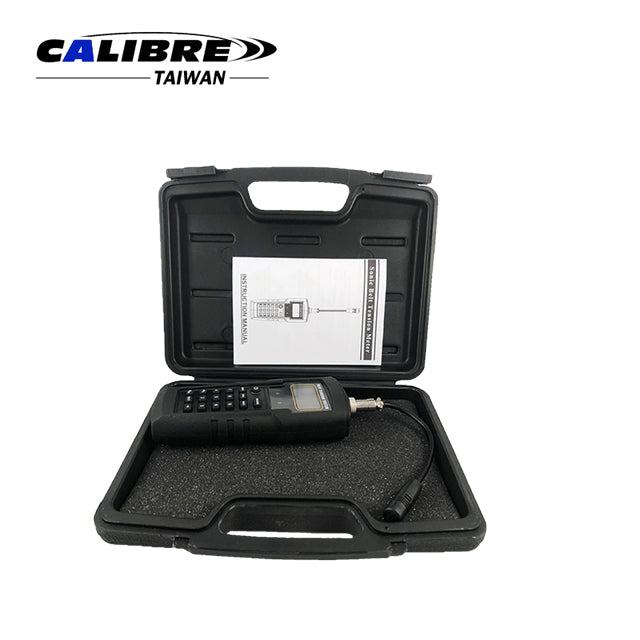

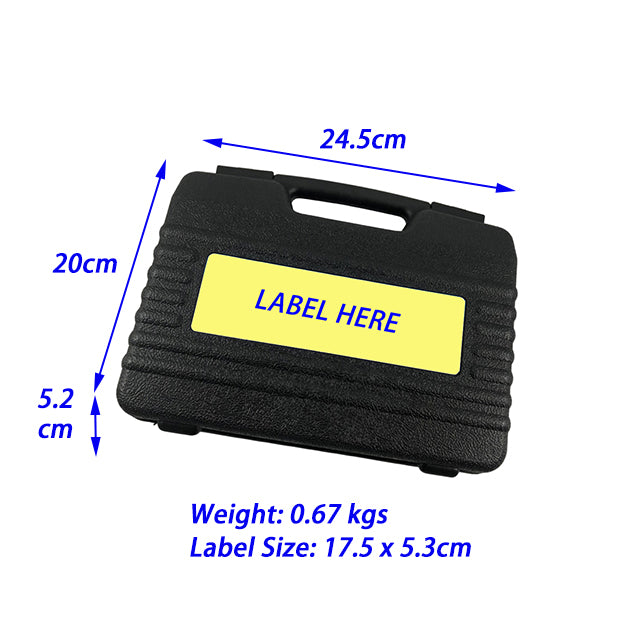

Packaging:
- 1Set/Blow Mould Case
- 10Set/6/7kgs/1.2'
OPERATION
1. PROBE INSTALLATION
Tightly connect the notch of probe to the convex point of instrument,
and then completely screw the outer nut.
2. LCD DISPLAY
Long press the button, the following content will be displayed on LCD:
3. PRODUCT DESCRIPTION
BATTERY REPLACEMENT
Please turn off the power, remove the Probe and the Sofr Rubber before battery replacement.
CAUTION:
1. The instrument will auto power off after 5 minutes without any operation.
2. Battery capacity icon is shown on the top right of the display. If it is full-black, it is full power. If it is empty, it is low power.
3. Please replace the battery if the device is low power.
