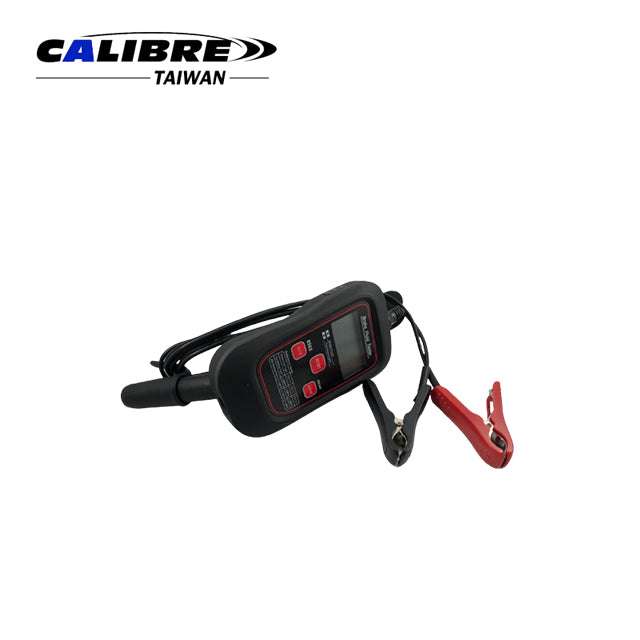

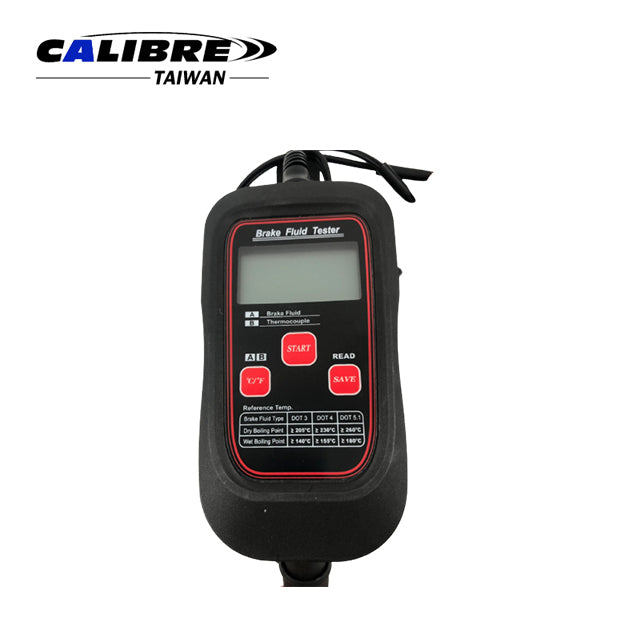

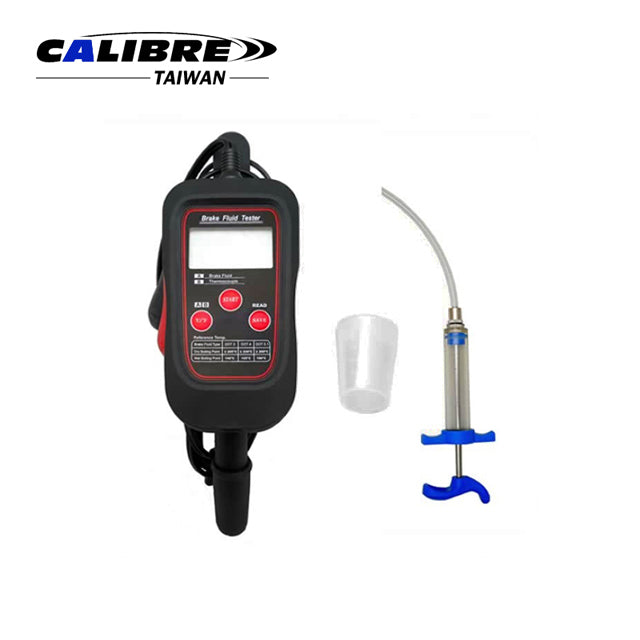

CAW0035 TAIWAN CALIBRE Brake Fluid Boiling Point Tester

CAW0035 TAIWAN CALIBRE Brake Fluid Boiling Point Tester

Type

Brake fluid test kit

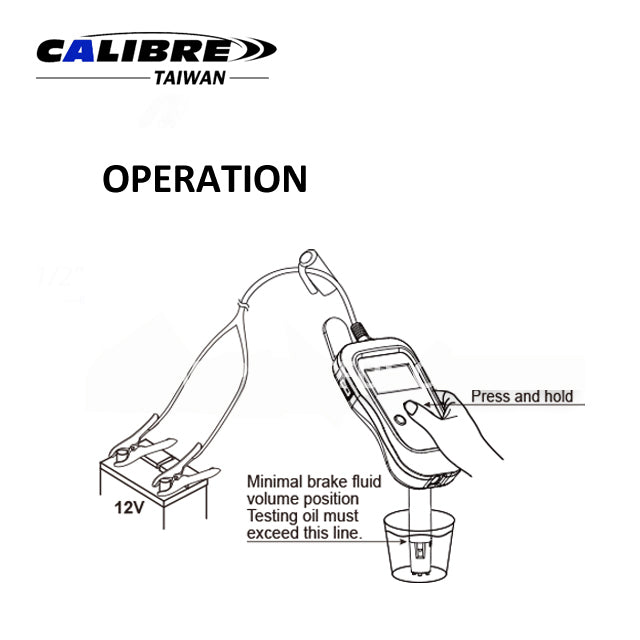

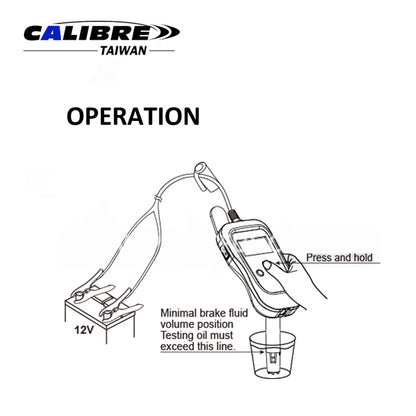

Brake fluid test kit by TAIWAN CALIBRE measures boiling points of DOT3, DOT4, and DOT5.1 fluids to determine maintenance needs. Powered by a 12V battery, it provides accurate wet boiling temperature readings up to 320°C. To operate, connect the clamps to the battery, submerge the heating tip in the fluid, and start the test. It also supports K-type thermocouples for measuring various other liquid temperatures up to 500°C.

Type:

  • CAW0035: Non-replaceable Heating Tip.

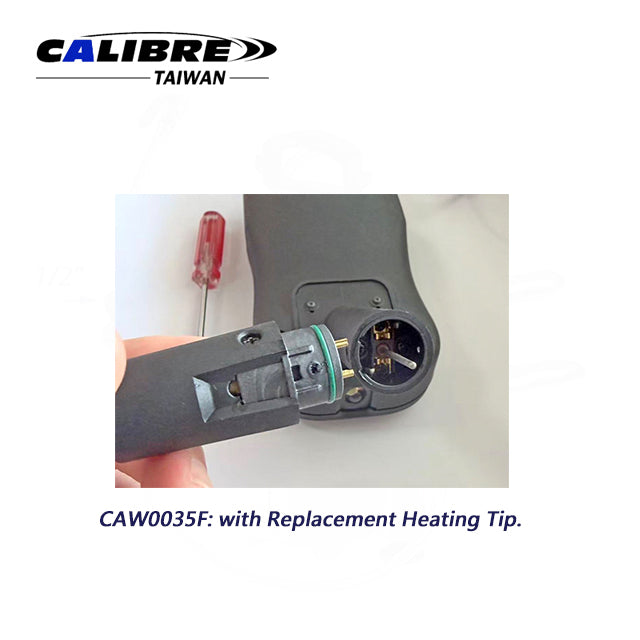

  • CAW0035F: with Replacement Heating Tip.

Descriptions:

  • This tester can measure the boil point of the brake fluid.
  • It can measure the wet boiling temperature of the brake fluid for technician as a reference for maintenance.
  • It can be the reference when technician is going to change the brake fluid.
  • Besides the brake fluid, user can also measure the temperature of other fluid by connecting the tester with K-type thermocouple.

Features:

  • With CE & UKCA Approvals.
  • Use on oil type of DOT3, DOT4, DOT5.1
  • Power: 12V automotive battery
  • Testing current: 5 ~ 7A
  • Measurement range of brake fluid：≤320°C（≤608°F ）
  • Measurement range of K-type thermocouple：-60°C ~ 500°C（-76°F ~ 932°F）
  • Working Environment: 0 ~ 50°C

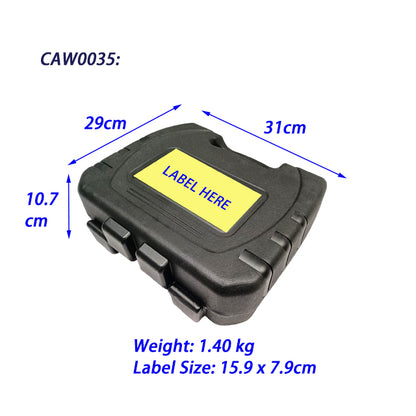

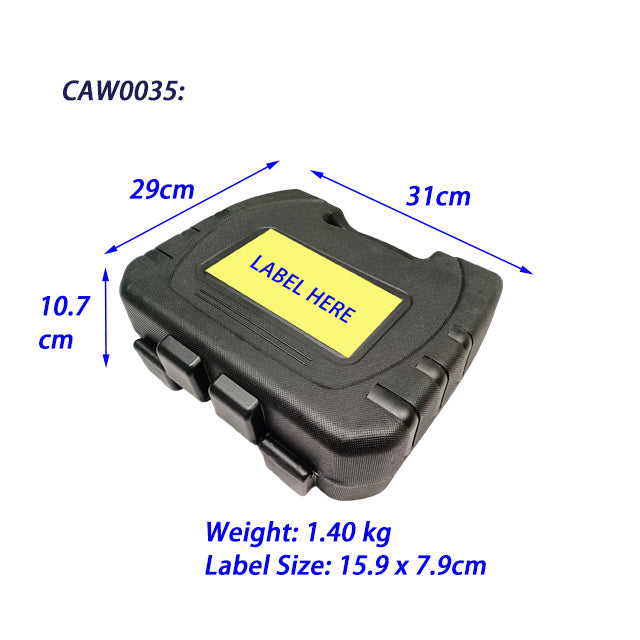

Packaging:

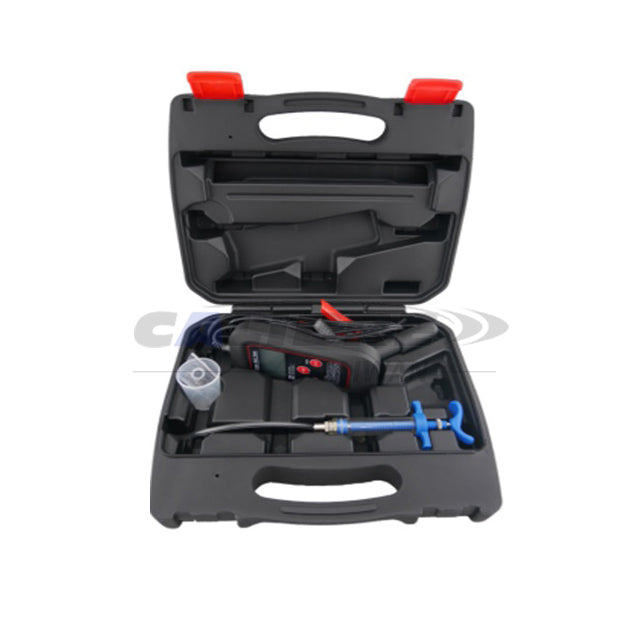

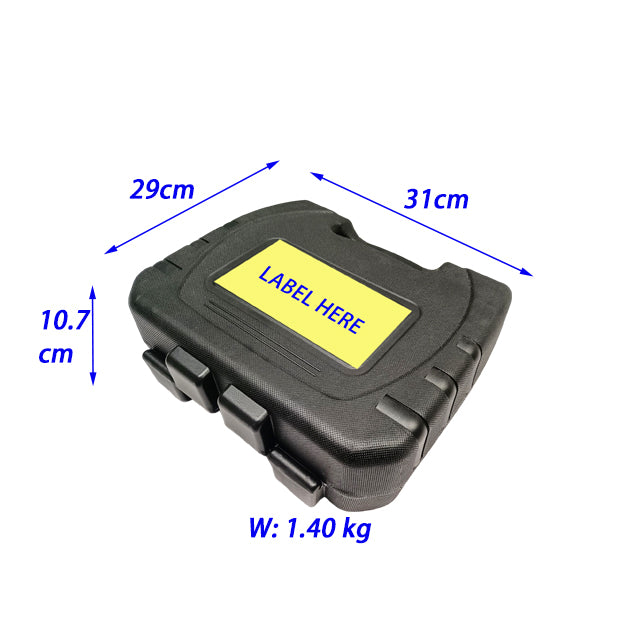

  • 1Set/Blow Mould Case
  • 10Set/13.7kg/14.7kg/4'
