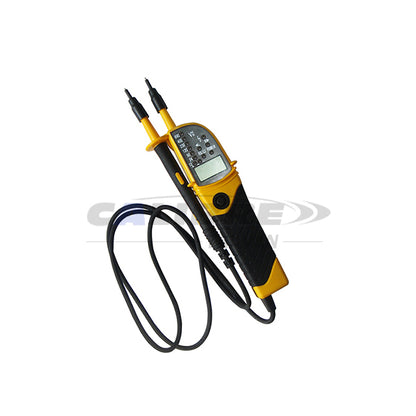

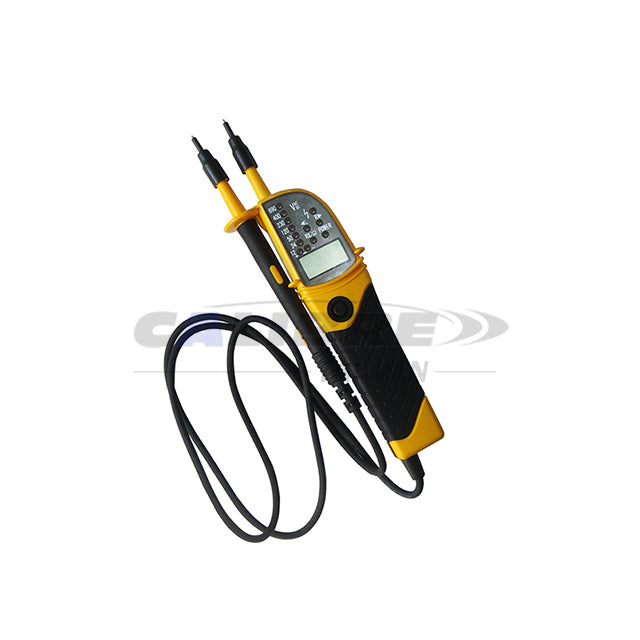

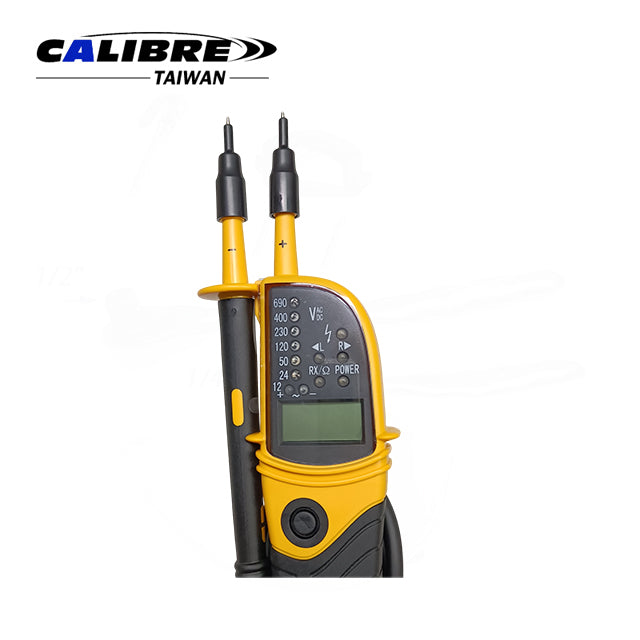

CAW0029 TAIWAN CALIBRE Multifunctional Voltage Tester With LED/LCD Display

CAW0029 TAIWAN CALIBRE Multifunctional Voltage Tester With LED/LCD Display

Voltage tester

To use the tester, ensure it's powered on (auto ON/OFF). Place both probes on the test points. The LED/LCD display will show AC/DC voltage level across seven stages. Use the R/L LED indicators for phase rotation testing. Adjust probe spacing with the two-way clip.

Manual Download Here

Descriptions:

  • LED/LCD display tester is a professional 2-pole voltage tester, which provides electricians with a versatile high quality Voltage and Continuity tester. Suitable for checking AC/DC 12-690V.

Feature:

  • With Bauart, ETL and CE Approval.
  • Protection class: IP 64
  • Self-Diagnostic Test.
  • Auto-power ON/OFF.

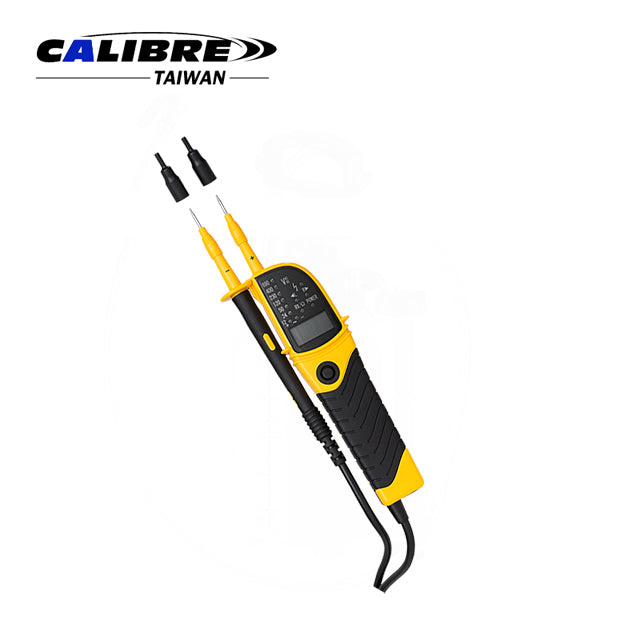

  • Probe cover protects user and probe tip.
  • Compact design, light weight and portable.
  • Phase rotation test with R/L LEDs displayed.
  • Two-way clip for adjustable spacing of probes.

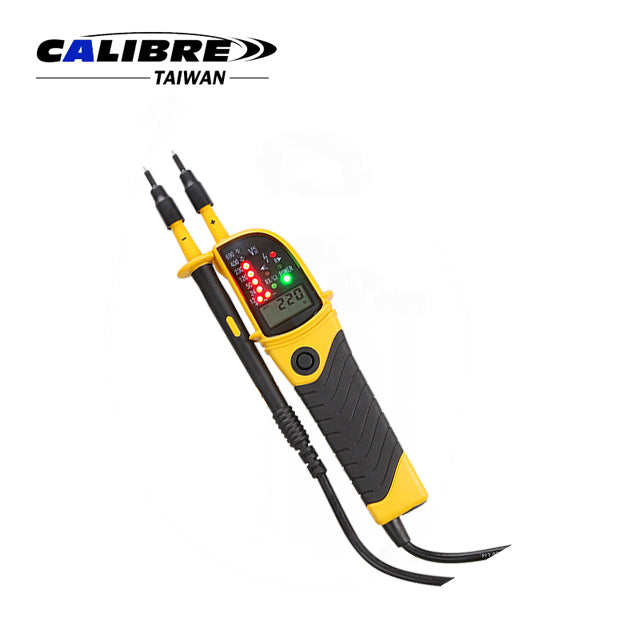

  • AC and DC voltage test by seven stages LED / LCD displays.
  • Testing range: 12~690V(±12/24/50/120/230/400/690V) LEDs indication.
  • Voltage value display
  • Polarity indication
  • Continuity test
  • High voltage indication ≧50V
  • Illumination
  • CAT III 690V
  • Safety standard: EN61243-3 / EN61010
  • Powered by AAA 1.5V x 2 batteries (not included)

Function:

  • Double-pole Test
  • High Voltage Indication
  • Phase Rotation Test
  • Polarity Indication
  • Continuity Test
  • Illumination
Packaging:
  • 1pc/Color Box
  • 50pc/12/13kgs/1.9'

OPERATION MANUAL

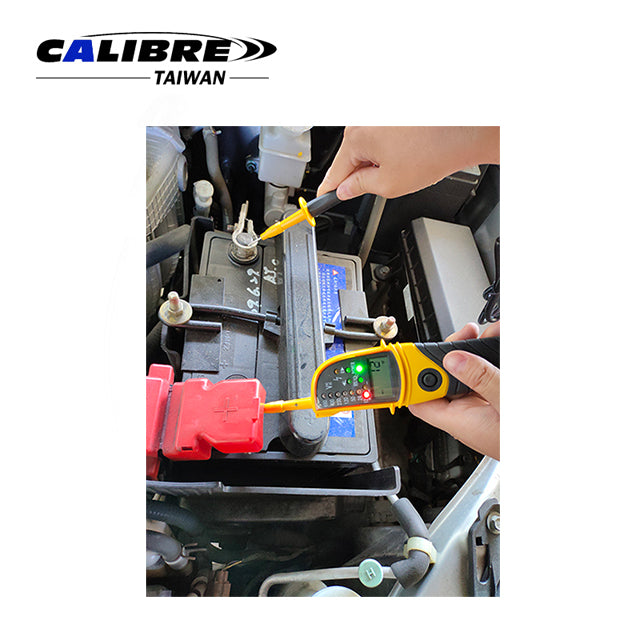

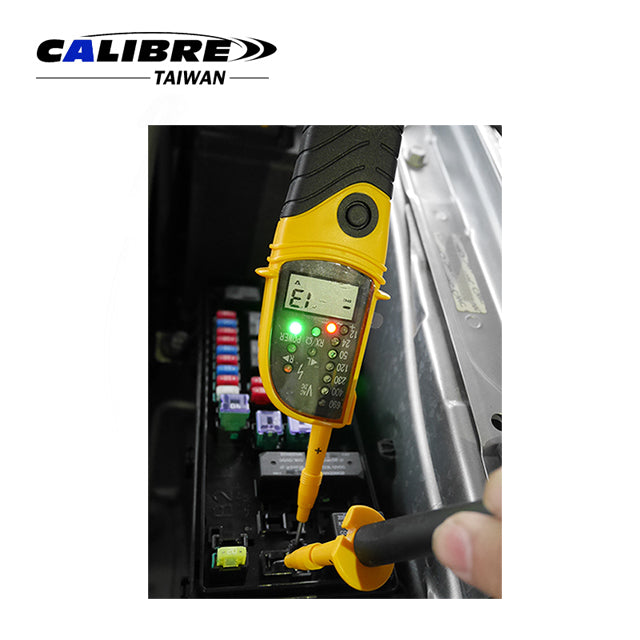

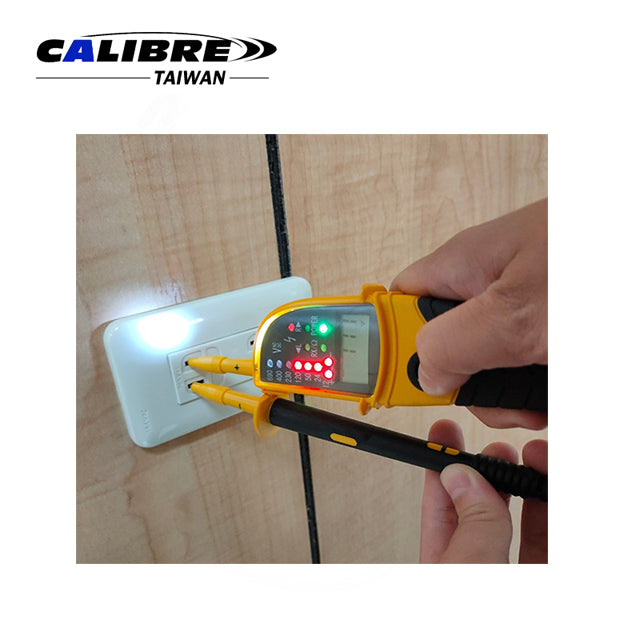

Voltage test (Double-pole test)

Connect both probes to the object under test.
The voltage is indicated by LEDs and LCD

NOTE
*When the L2 probe + is the positive (negative) potential, the Polarity indication LED indicates "+DC" ("-DC").

High voltage indication

Grasp the instrument firmly and connect both probes to the object under test.
LED lights up when a voltage of approx,50V AC or more exists in the object under test.(50V AC/DC)

Phase rotation test

L LED and R LED for Phase roation test may operate on various wiring systems,but effective
testing result can be obtained only on Three-phase system.
Grasp the instrument firmly and connect both probes to the object under test.( Grasp method
show as below fig)
Phase-to-phase voltage is indicated by each Voltage LED.
R LED indicates that the field is rotating towards the right direction of the "probe -".
With this connection, the motor will go positive rotation.

L LED indicates that the field is rotating towards the left direction of the "probe -".
With this connection, the motor will go negative rotation.

The principle of measurement
The instrument detects the phase rising order regarding the user as EARTH.

NOTE
Function of this test may not be fully achieved if the insulation condition of user or of the equip-ment under test is not enough.

SPECIFICATION
