  • 6-1000V AC/DC Multi-function Voltage Tester
1 7

Projen Taiwan

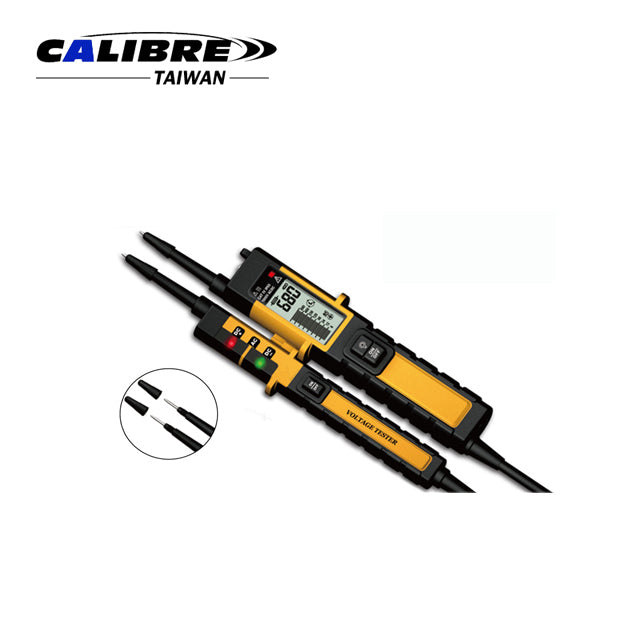

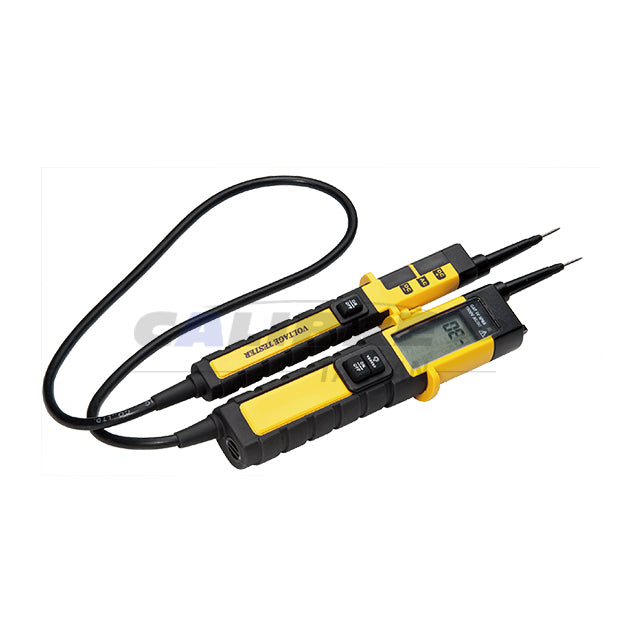

CAW0026 TAIWAN CALIBRE 6-1000V AC/DC Multi-function Voltage Tester

CAW0026 TAIWAN CALIBRE 6-1000V AC/DC Multi-function Voltage Tester

Manual

Descriptions:

  • Multi-function Voltage Tester is a professional 2-pole voltage tester, which provides electricians with a versatile high quality Voltage and Continuity tester. Suitable for checking DC 6-1000V and AC 24-1000V. CAT IV 1000V voltage category also for checking high voltage on electric / Hybrid vehicles.

Function:

  • AC / DC Polarity Measurement
  • Voltage Measurement
  • High Voltage Indication
  • Phase Rotation Test
  • Non-contact Voltage Sensing
  • Continuity Test
  • Illumination

Features:

  • With GS and CE Approval.
  • Protection class: IP 65
  • Auto power off.
  • LCD resolution 1V.
  • Illumination for testing point.
  • Display range: 6-1000VDC, 24-1000VAC.
  • Probe cap to protect user and test probe.
  • Dual switch for protection & function switch.
  • Polarity indication LED lights up when voltage approximate ≧ 24V AC/DC.
  • Voltage value display
  • Polarity indication
  • High voltage indicaion: Warning symbol display on LCD when voltage indication ≧100V
  • Powered by AAA 1.5V x 2 batteries (not included)
  • Safety standard: EN61243-3 / EN61326-1
  • CAT Category: CAT IV 1000V

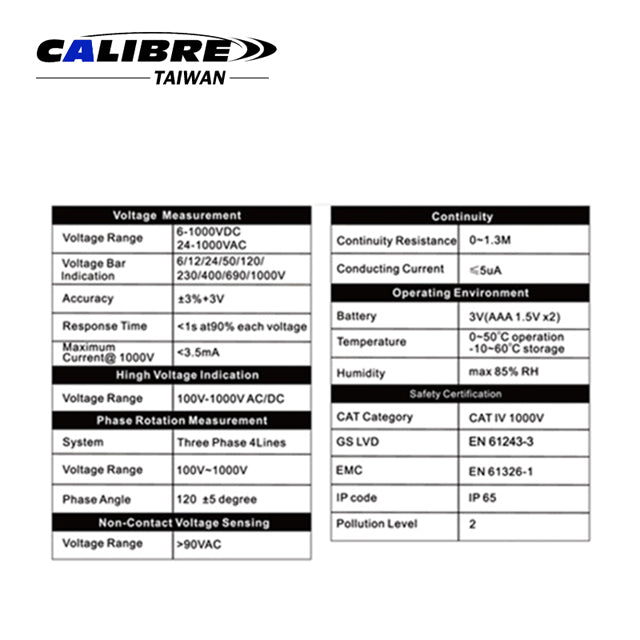

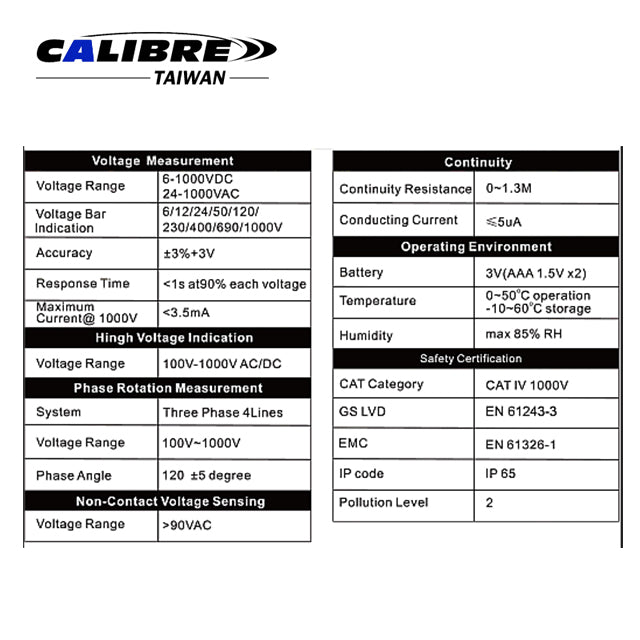

Voltage Measurement:

  • Voltage Range: 6-1000V DC, 24-1000V AC
  • Voltage Bar Indication: 6/12/24/50/120/230/400/690/1000V
  • Accuracy: ±3% + 3V
  • Response Time: <1s at 90% each voltage
  • Maximum Current @1000V: <3.5mA

High Voltage Indication:

  • Voltage Range: 100V-1000V AC/DC

Phase Rotation Measurement:

  • System: Three Phase 4Lines
  • Voltage Range: 100V~1000V
  • Phase Angle: 120 ± 5 degree

Non-Contact Voltage Sensing:

  • Voltage Range: > 90VAC

Continuity:

  • Continuity Resistance: 0~1.3M
  • Conducting Current: ≤ 5uA

Operating Environment:

  • Battery: 3V (AAA 1.5V x 2)
  • Temperature: 0~50°C operation
  • -10~60°C storage
  • Humidity: max 85% RH

Safety Certification:

  • CAT Category: CAT IV 1000V
  • GS LVD: EN 61243-3
  • EMC: EN 61326-1
  • IP code: IP 65
  • Pollution Level: 2
Packaging:
  • 1Set/Color Box
  • 50Set/19/20kgs/3.3'
