CAW0015 TAIWAN CALIBRE 14-48V Digital Display Auto Circuit Tester

CAW0015 TAIWAN CALIBRE 14-48V Digital Display Auto Circuit Tester

Auto electrical tester

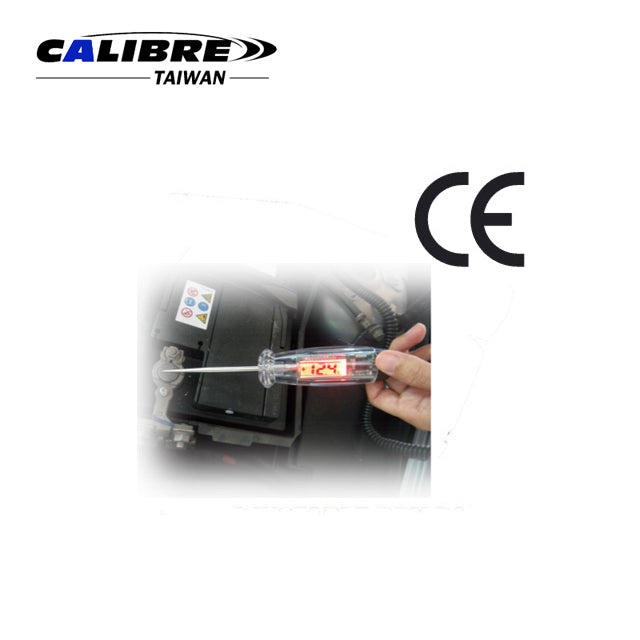

Auto electrical tester measures 10–55V on 12, 24, and 48V DC systems. Connect the spring cable (up to 3m), use the stainless steel probe to test points, and view voltage on the LCD. LED shows red for power, green for ground. Draws <10mA.

Feature:

  • Digital display to read the accurate voltage value.
  • Available for 12 & 24V & 48V DC system.
  • LED indication for power (Red) and ground (Green).
  • Stainless steel testing probe.
  • Voltage measurement from 10 – 55 V.
  • Spring cable, which is able to extend to 3 meter.
  • Small testing current, < 10mA.

Application:

  • Testing Current: <10mA
  • Display: LCD
  • Resolution: 0.1V
  • Accuracy: ±3%
  • LED Indication: Green (-) / Red (+)
  • Cable Length: Spring Cable, maximum 3m
  • Operating Humidity: <80%
Packaging:
  • 1pc/Sliding Card
  • 10/60pc/13/14kgs/3.63'
