CAW0008 TAIWAN CALIBRE 12/24/48V Nixie Display Circuit Tester

CAW0008 TAIWAN CALIBRE 12/24/48V Nixie Display Circuit Tester

Electrical circuit tester

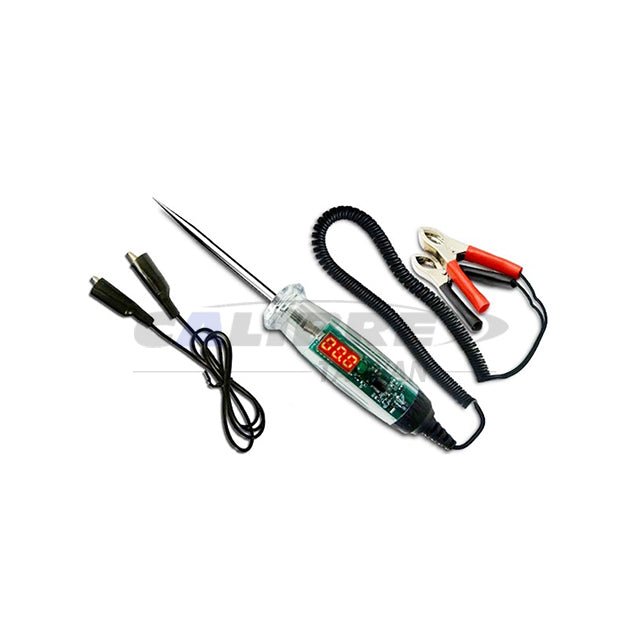

Electrical circuit tester measures 0.3–60V DC on 12–48V systems. Connect the red clip to positive and black to negative. The nixie display shows voltage; buzzer and green LED indicate voltage below 0.3V or connection polarity. Features a 12’ coil cord with battery clips for easy testing.

Feature:

  • Suggest System:12~48V DC
  • Measured Voltage: 0.3~60V DC
  • Extra-long 12’ coil cord with battery clips.
  • Testing Current <10mA
  • Operating Temperature: 0~50℃
  • Humidity <=80%

Operation:

  • Red Clip connect with positive (+) polarity, and block clip connect with negative (-) polarity. The nixie light will show “00.0” when nothing connecting with the testing probe.
  • When the tester probe connects with positive voltage, the nixie light will display the voltage. If the voltage is less than 0.3VDC, buzzer will be on, and green LED will light up. If the voltage is greater than 60VDC, the nixie light will display”Err”.
  • When the tester probe connects with negative pole, green LED will light up and buzzer will be on.
Packaging:
  • 1pc/Sliding Card
  • 10/60pc/13/14kgs/3.7'
