CAW0002 CALIBRE 30A Current / Voltage Tester

CAW0002 CALIBRE 30A Current / Voltage Tester

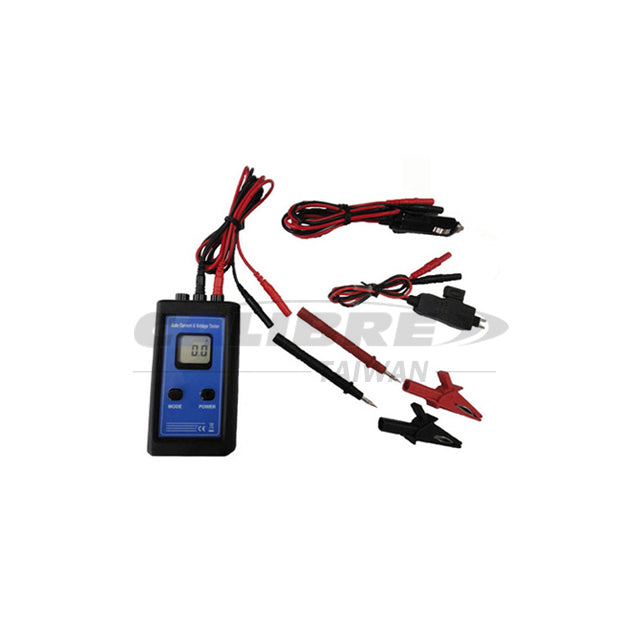

Contents:
  • Testing probe x2
  • Alligator clip x2
  • Extension connector x1
  • Fuse jack adapter x1
  • Cigarette lighter adapter x1
Application:
  • Current Measurement
    Max Loading: 30A / 48 VDC for 10 seconds
    Accuracy: ±1%, or 0.1 reading with 1 decimal place.
  • Voltage Measurement
    Range: 1- 48V DC
    Accuracy: ±1% , or 0.1 reading with 1 decimal place.
    Wrong polarity: When user reversely connects the polarity, the display will show “ERR”
  • Continuity Test
    If the measured resistance is less than 1K ohm, LCD will display “ERR”.
    Working temperature: 0-50℃ (32-122℉)
    Storage temperature: -20-60℃ (-4-140℉)
    Moisture: <70% RH (working) ; <80% (storage)
    Maximum Height: 7000ft (2000m)
    Power: 9V battery x 1
Packaging:
  • 1Set/Blow Case + Shirk
  • 10Set/6/7kgs/1.2'
