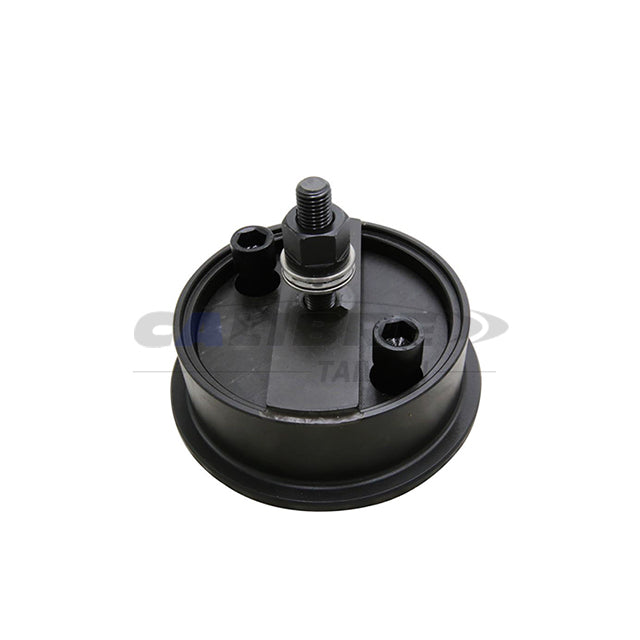

CATS0310Q TAIWAN CALIBRE Rear Crankshaft Oil Seal Installation Tool

CATS0310Q TAIWAN CALIBRE Rear Crankshaft Oil Seal Installation Tool

Seal installer tool

Seal installer tool CATS0310Q (OEM 99346260 / ATIV1045) installs rear crankshaft oil seals on F3A, F3B, and F2C (Cursor 10, Cursor 13) 10L and 13L engines. Operation: Position the 130mm ID / 160mm OD tool precisely over the rear seal on the crankshaft. Press or drive the tool evenly to seat the seal. This specialized tool ensures perfect alignment, preventing leaks and installation damage.

Size:

  • Inner Diameter (ID): 130mm
  • Outer Diameter (OD): 160mm

Feature:

  • The tool is designed for installing the rear seal on a crankshaft.
  • The part number is ATIV1045, and it is compatible with F3A, F3B, F2C (CURSOR 10, CURSOR 13) engines.

Application:

  • OEM Reference Number: 99346260
  • Suitable for: 10 & 13 Litre Engines
