CATS0299 TAIWAN CALIBRE Brake Caliper Compressor Tool

CATS0299 TAIWAN CALIBRE Brake Caliper Compressor Tool

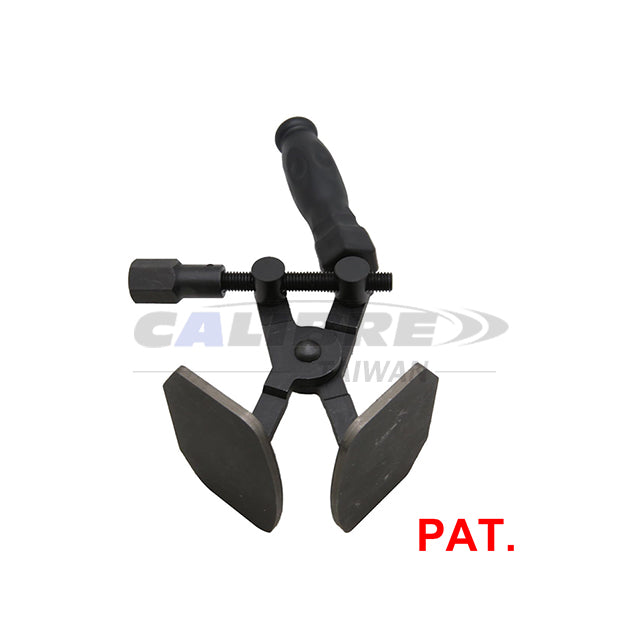

Brake caliper compressor tool

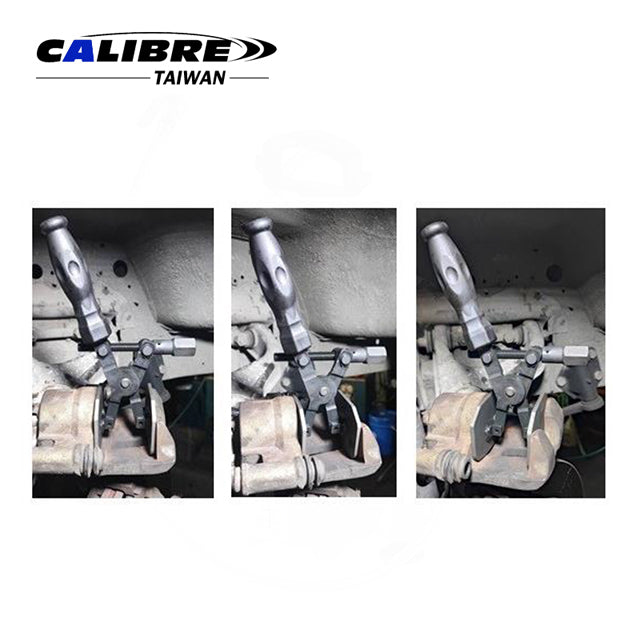

Brake caliper compressor tool: Use this S45C steel tool with a 19mm socket or ratchet to compress floating calipers. The 90mm by 60mm self-regulating pads distribute force evenly, preventing piston misalignment. With a working range of 36mm to 91mm, it effectively handles single, twin, and even four-piston configurations. Simply insert the tool and expand the pads to reset the pistons safely and efficiently during brake service.

Size:

  • Maximum working range: 36mm ~ 91mm
  • Pad size: 90mm*60mm
  • Work with 19mm socket and rachet wrench.

Material:

  • S45C

Feature:

  • Designed for floating calipers, suitable on Single / Twin Pistons.
  • The pads are designed with self-regulation during operation, evenly distributing force in a parallel manner to prevent misalignment across multiple pistons. Additionally, the tool can also use during the job on 4 pistons.
Packaging:
  • 1Set/Corrugated Box
  • 10Set/10/11kgs/2.74'
