CATS0292 TAIWAN CALIBRE Brake Lining Gauge for Truck

CATS0292 TAIWAN CALIBRE Brake Lining Gauge for Truck

Brake pad thickness gauge

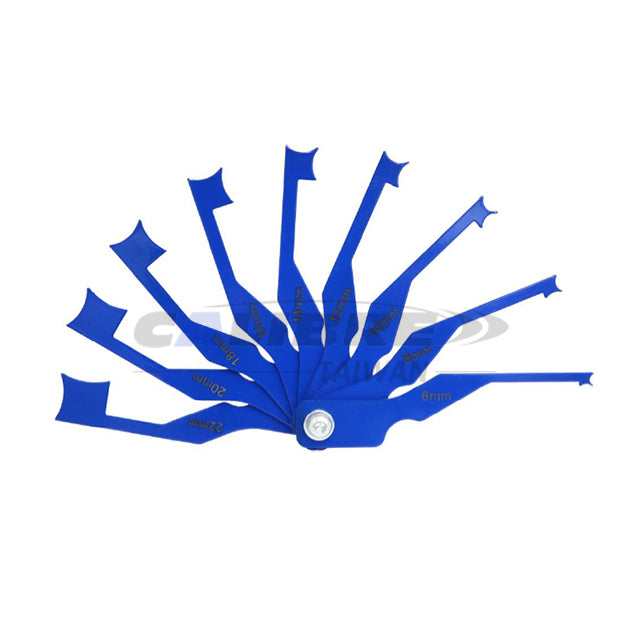

Brake pad thickness gauge: This 9-piece SS400 steel set provides precise measurements ranging from 6mm to 22mm. To use, place the appropriate gauge at a 90° angle to the rotor or use the offset tips for direct contact with the brake lining. By matching the gauge to the pad thickness, you can accurately assess wear and ensure vehicle safety without guesswork during routine brake inspections.

Size:

  • Nine different thickness gauges with the following measurements:
  • 22mm (0.8661”), 20mm (0.7874”), 18mm (0.7087”), 16mm (0.6299”), 14mm (0.5512”), 12mm (0.4724”), 10mm (0.3937”), 8mm (0.3150”), 6mm (0.2362”)

Material:

  • SS400 Steel

Feature:

  • This 9-piece manual brake gauge set allows for accurate and consistent measurement of brake pad wear without the need for estimation or guessing.
  • It is designed for brake lining thickness inspection, ensuring safety and precision.

Instruction:

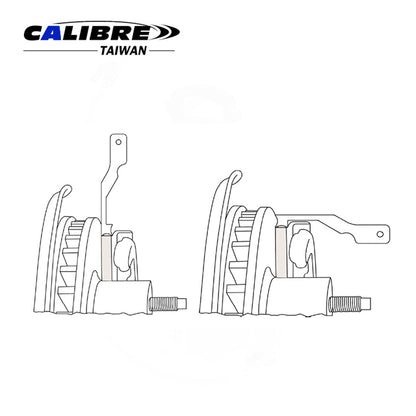

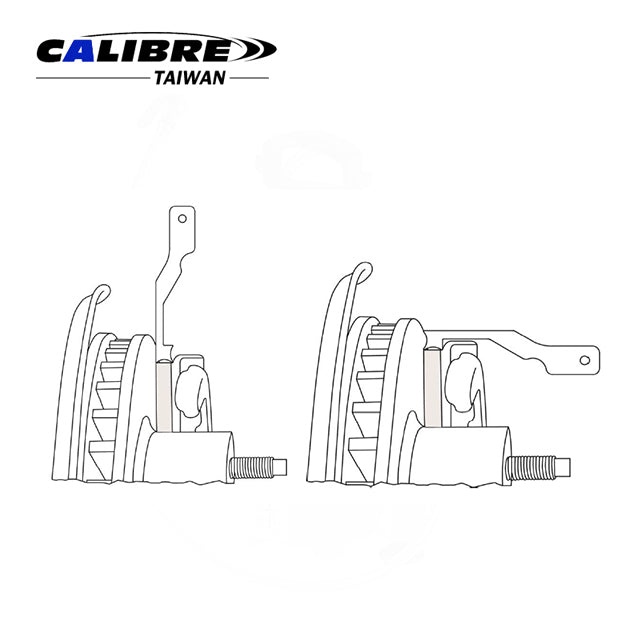

  • Can be used at a 90° angle to the rotor or for direct measurement with offset tips.
  • The gauges identify thickness levels of brake linings, suitable for inspection at various angles.
Packaging:
  • 1pc/Sliding Card
  • 40/80pc/21/22kgs/0.74'
