CATS0226 TAIWAN CALIBRE Inner-Driveshaft Extractor Fork

CATS0226 TAIWAN CALIBRE Inner-Driveshaft Extractor Fork

Camshaft holding tool

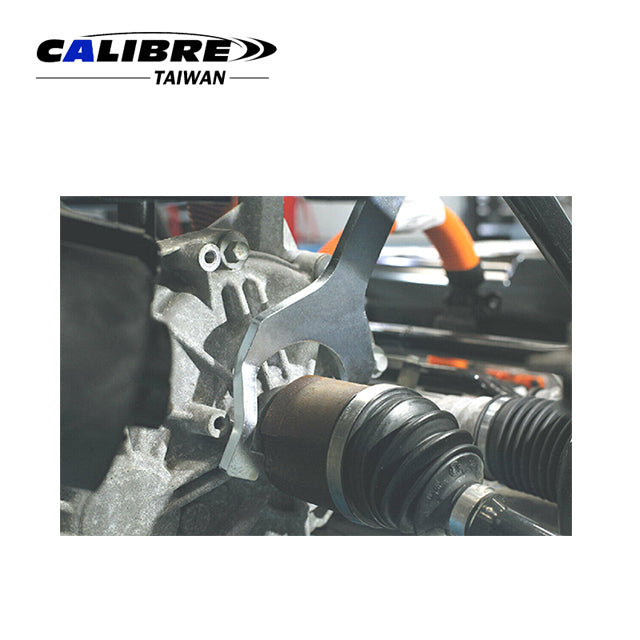

A camshaft holding tool alternative, specifically the TAIWAN CALIBRE Inner-Driveshaft Extractor Fork, prevents gearbox damage. First, remove the driveshaft from your front-wheel-drive vehicle. Subsequently, position the fork exactly between the casing and the joint. Meanwhile, apply steady leverage against the spring clip. Furthermore, pry the inner driveshaft outward carefully. Finally, pull the shaft completely free from the gearbox, thereby safely completing the extraction process.

Material:

  • S45C
  • HRC:38-42

Feature:

  • The driveshafts on many front wheel drives are held in the gearbox by a spring clip locking ring.
  • Remove the driveshaft from the vehicle, the inner driveshaft requires levering out.
  • Unless the correct tool is used that can provide the required leverage in exactly the right place, the gearbox casing, as well as the driveshaft joint, are at risk of being damaged.

Application:

  • Ford, Mazda, Volvo, Renault, Dacia and other front wheel drive vehicles.
Packaging:
  • 1pc/Polybag
  • 20pc/20.5/21.5kgs/0.49'
