CATS0120 CALIBRE 5pc Wheel Stud Alignment Guide Tool

CATS0120 CALIBRE 5pc Wheel Stud Alignment Guide Tool

Size:
  • CATS0120-5pc: M12 x P1.25, M12 x P1. 5, M14 x P1.5, M14 x P1.25, M16 X P1.5
  • CATS0120A-150: M12 x P1.25, 150mmL
  • CATS0120B-150: M12 x P1.5, 150mmL
  • CATS0120C-150: M16 x P1.5, 150mmL
  • CATS0120D-150: M14 x P1.5, 150mmL

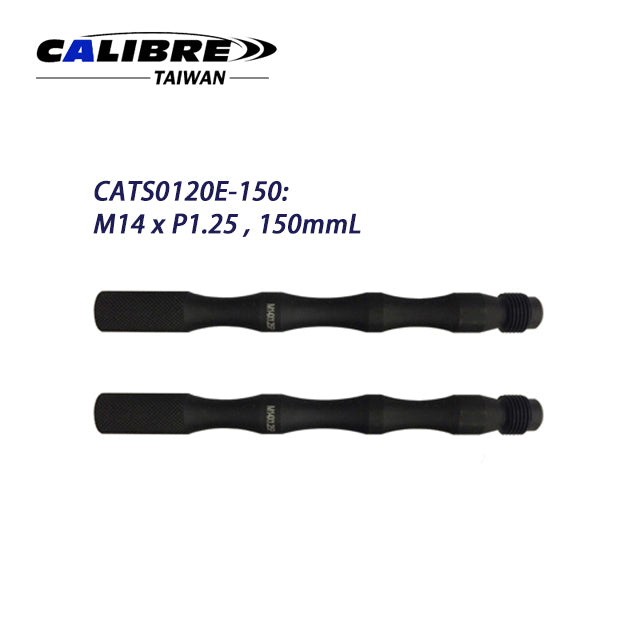

  • CATS0120E-150: M14 x P1.25 , 150mmL
Feature:
  • Particularly useful when replacing the brake disc - the wheel hook pin ensures that the holes in the new tray are fully aligned with the holes in the hub.
  • The disc fixing screw can then be mounted on the wheel holder hook.
  • Bulky heavy wheels do not tilt forward, you can use a hand to keep it in place, to maintain the appropriate position, the weight by the wheel hook pin support.
  • Simply screw the wheel hook pin into the top bolt hole at the 12 o'clock position and then slide your wheel over the pin and slide it onto the hub.
  • Including four of the most common thread and pitch sizes.
  • Plus wheel stud version for hubs with wheel studs — particularly useful for 4x4 wheels.
Packaging:
  • CATS0120-5PC: 1Set/Sliding Card
    30Set/21.5/22.5kgs/0.9'
  • CATS0120A-150: 1Set/PE Bag, 60Set/14/15kgs/0.5'
  • CATS0120B-150: 1Set/PE Bag, 60Set/14/15kgs/0.5'
  • CATS0120C-150: 1Set/PE Bag, 50Set/21/22kgs/0.5'
  • CATS0120D-150: 1Set/PE Bag, 60Set/19/20kgs/0.5'
  • CATS0120E-150: 1Set/PE Bag, 60Set/19/20kgs/0.5'
