CAP0016 TAIWAN CALIBRE Drive Shaft Insertion Tool With 12 Adaptor

CAP0016 TAIWAN CALIBRE Drive Shaft Insertion Tool With 12 Adaptor

Drive shaft u joint removal

Drive shaft u joint removal applications require precise handling when working with tight drive shaft spline and wheel hub tolerances. This insertion tool helps fit the drive shaft into the wheel hub quickly and efficiently. With multiple spindles and adapters, it supports various drive shaft specifications and is suitable for VW-Audi, Mercedes, BMW, Porsche, Peugeot, Renault, and Opel/Vauxhall vehicles.

Feature:

  • These vehicles have strict tolerances between the drive shaft splines and the wheel hub, we must use special tools like this tool for assembly work.
  • This insertion tool can be simple and quickly put the drive shaft fitted into the wheel hub.
  • With wide application in various specifications for drive shaft.
  • Mainly used for VW-Audi (Touareg etc.), Mercedes, BMW, Porsche (Cayenne etc.),
  • Peugeot, Renault, Opel/Vauxhall, etc…

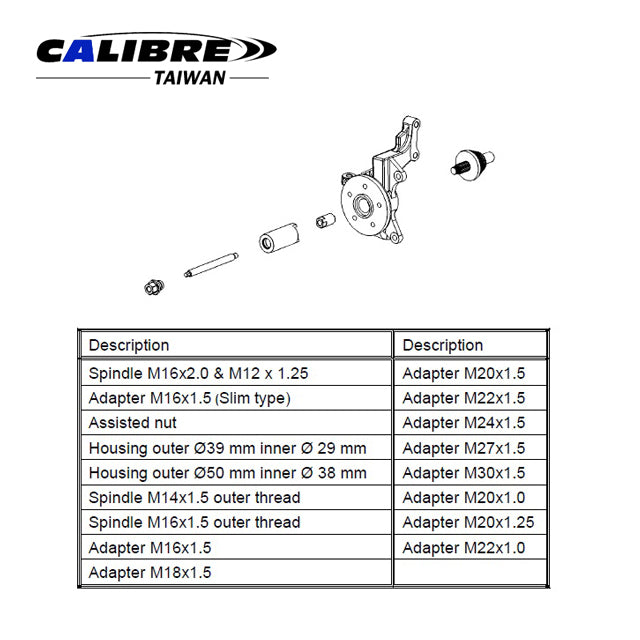

Contents:

  • Spindle M16x2.0 & M12 x 1.25
  • Adapter M16x1.5 (Slim type)
  • Assisted nut
  • Housing outer Ø39mm, inner Ø29mm
  • Housing outer Ø50mm, inner Ø38mm
  • Spindle M14x1.5 outer thread
  • Spindle M16x1.5 outer thread
  • Adapter M16x1.5
  • Adapter M18x1.5
  • Adapter M20x1.5
  • Adapter M22x1.5
  • Adapter M24x1.5
  • Adapter M27x1.5
  • Adapter M30x1.5
  • Adapter M20x1.0
  • Adapter M20x1.25
  • Adapter M22x1.0
Packaging:
  • 1Set/Blow Mould Case
  • 6Set/18/19kgs/1.1'
