CAN0036 TAIWAN CALIBRE Swing Arm Bearing Tool

CAN0036 TAIWAN CALIBRE Swing Arm Bearing Tool

Swing arm bearing

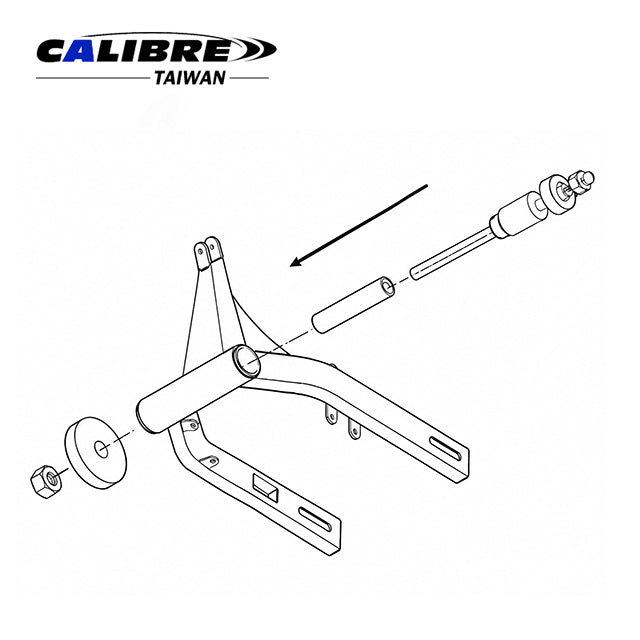

Swing arm bearing tool provides easy installation of motorcycle needle bearings. First, select the correct precision driver. Next, assemble the threaded rod, thrust component, washers, and nut securely. Then, align the parts carefully and tighten gradually to press them into position. Finally, verify proper fit before removing the tool. Designed for Honda, Suzuki, Kawasaki, and Yamaha motorcycles from 1990–2000.

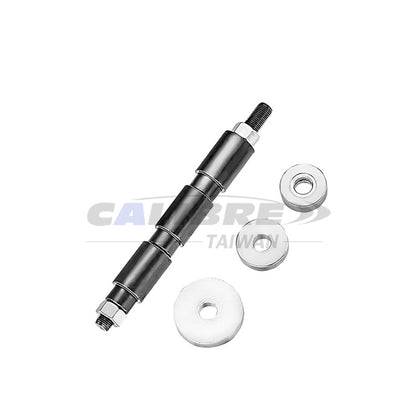

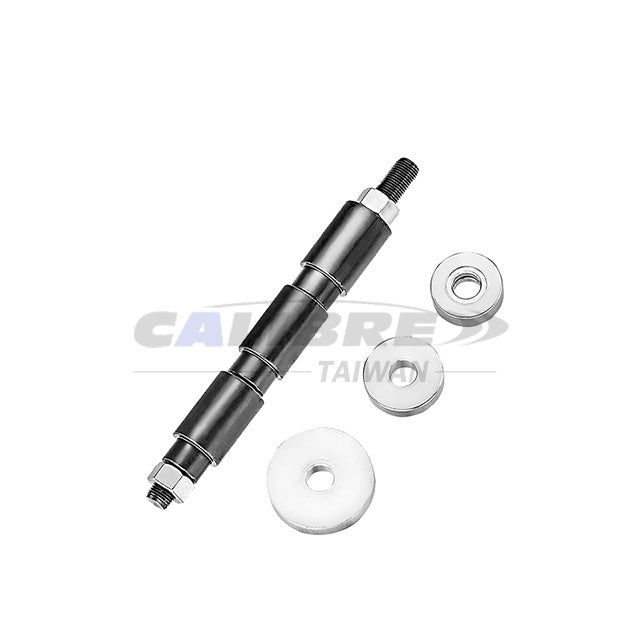

Contents:

  • Threaded rod x 1pc
  • Thrust bearing x 1pc
  • Driver 1 (22.0mm/26.8mm) x 1pc
  • Driver 2 (21.0mm/26.0mm) x 1pc
  • Driver 3 (20.0mm/26.0mm) x 1pc
  • Large washer x 1pc
  • Small washer x 1pc
  • Nut x 1pc

Material:

  • Carbon steel

Feature:

  • Includes 3 precision drivers in different sizes for accurate component installation.
  • Allows users to press components smoothly and securely into position.

Application:

  • Designed for component installation on Honda, Suzuki, Kawasaki, and Yamaha motorcycles manufactured from 1990 through 2000.
Packaging:
  • 1Set/Sliding Card
  • 6/18Set/17.2/17.7kgs/0.6'
