CAN0035 TAIWAN CALIBRE Piston Ring Compressor Set

CAN0035 TAIWAN CALIBRE Piston Ring Compressor Set

Piston ring compression

Piston ring compression provides controlled installation for pistons from 73mm to 111mm in diameter. First, select the correct band and attach the pliers securely. Next, position the band around the piston rings. Then, use the self-locking ratchet to compress the rings gradually. Finally, install the piston carefully. The pliers can be operated vertically or horizontally for convenient access.

Contents:

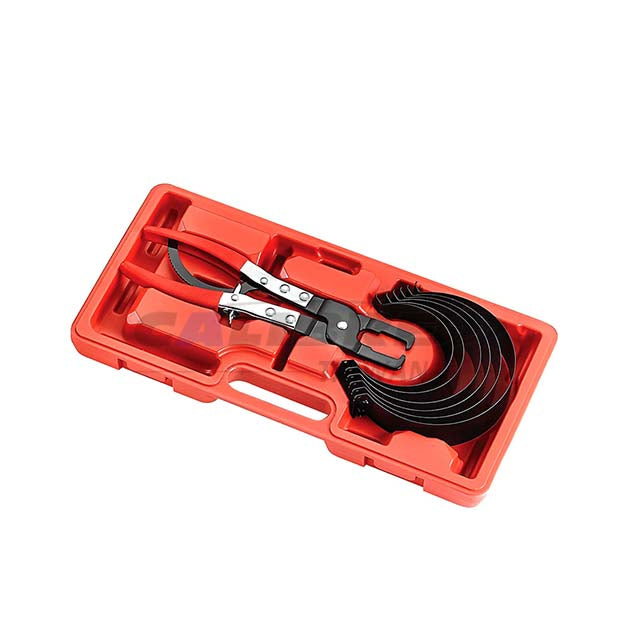

  • Includes pliers and six bands.

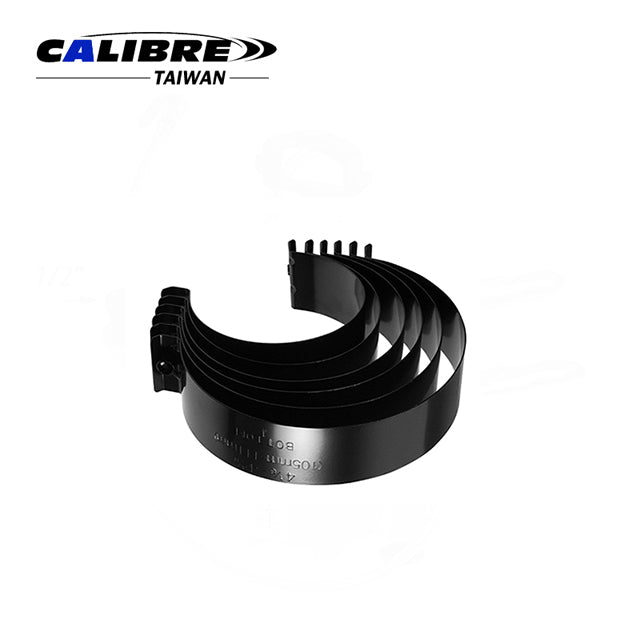

  • There are six bands:
    No. Inch Range Metric Range

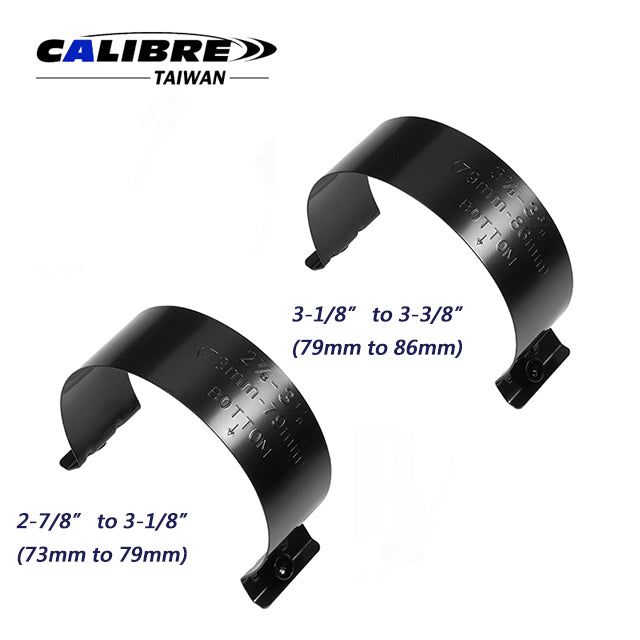

    1 2-7/8” to 3-1/8” 73mm to 79mm
    2 3-1/8” to 3-3/8” 79mm to 86mm

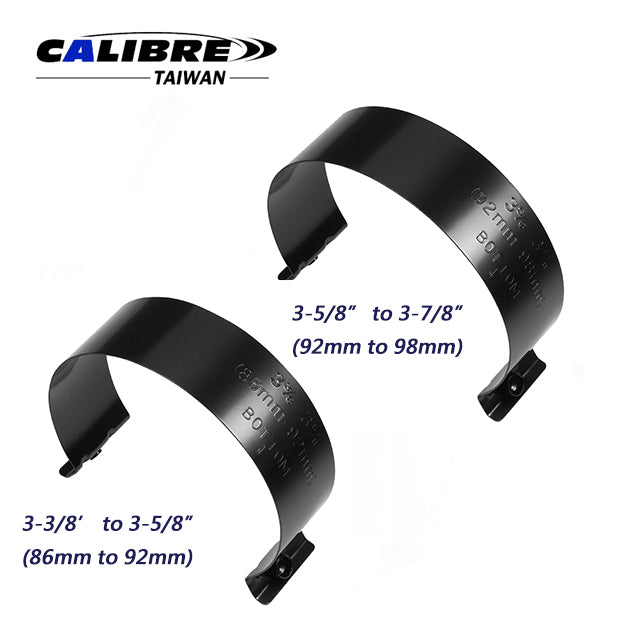

    3 3-3/8” to 3-5/8” 86mm to 92mm
    4 3-5/8” to 3-7/8” 92mm to 98mm

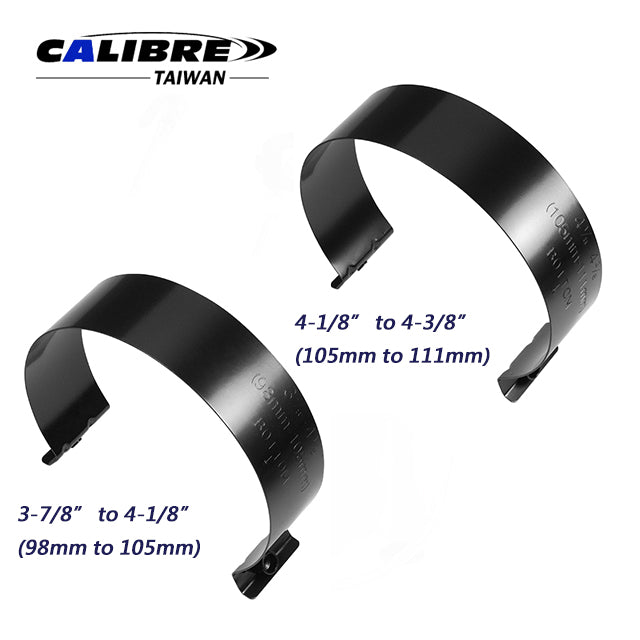

    5 3-7/8” to 4-1/8” 98mm to 105mm
    6 4-1/8” to 4-3/8” 105mm to 111mm

Material:

  • Iron, Medium-carbon steel, PVC

Feature:

  • Use the pliers with any band to install pistons from 2-7/8” to 4-3/8” in diameter (73mm to 111mm).

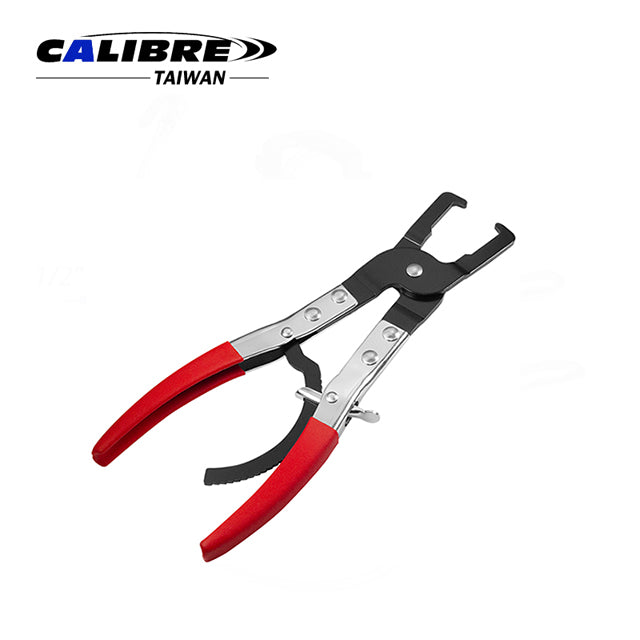

    Self-locking ratchet allows you to compress rings by minute graduation.
    Pliers can be used vertically or horizontally.
Packaging:
  • 1Set/Blow Mould Case
  • 3/6Set/10.6/11.6kgs/1.4'
