CAN0019 TAIWAN CALIBRE Flywheel Puller

CAN0019 TAIWAN CALIBRE Flywheel Puller

Size

Flywheel puller

Flywheel puller: First, choose the M27 x 1.0 left-hand thread for most Honda or KTM dirt bikes. Additionally, use the M26 x 1.5 right-hand thread for Husaberg models. Before proceeding, lubricate all threads. Then, securely thread the tool onto the flywheel. Finally, tighten the center bolt to release the part smoothly. Consequently, this ensures a safe removal without damaging the crankshaft or engine components.

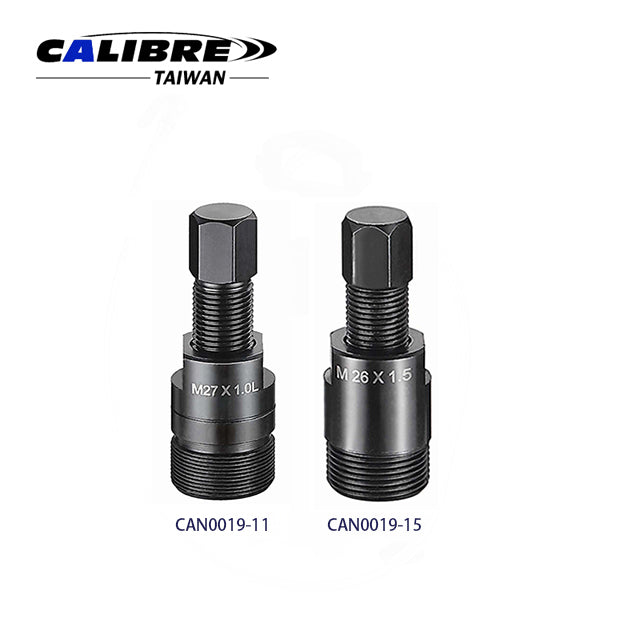

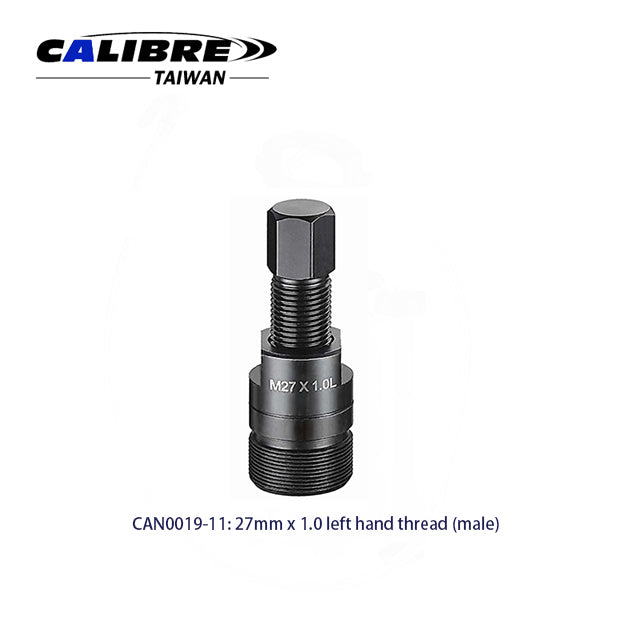

CAN0019-11:

  • 27mm x 1.0 left hand thread (male)
  • Applications:
  • Honda: Most 2 and 4 cycle engine MX, off-road, ATV and Odyssey models.
  • Kawasaki: Most 2 cycle engine KX and KDX series dirt bike models.
  • Suzuki: Most 2 cycle engine RM and RMX series dirt bike models and some quad models.
  • Yamaha: Most 2 cycle YZ models and 4 cycle YZ400F/426F, early YZ450F, all YZ250F.
  • KTM: Most current 2 cycle MX models.
    Scooters: Most import Scooters with 125cc-150cc GY6 4 stroke engine models.

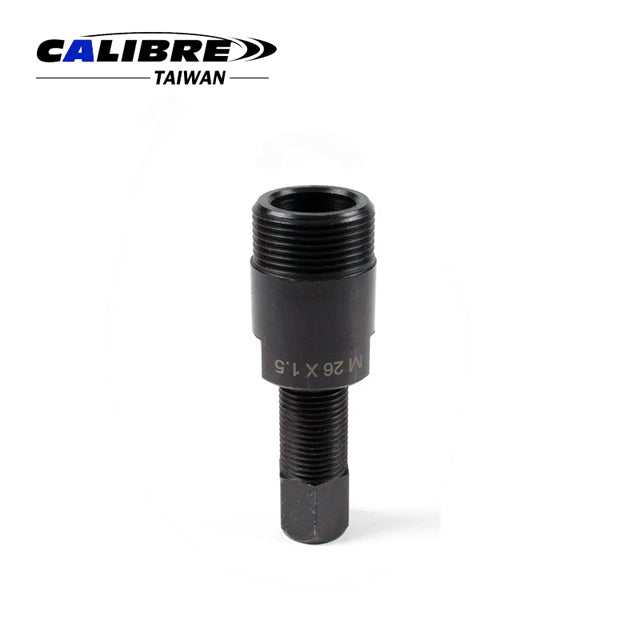

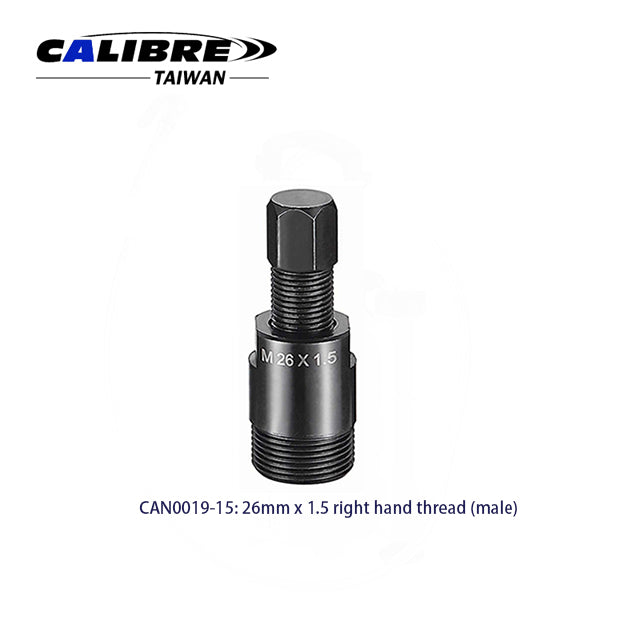

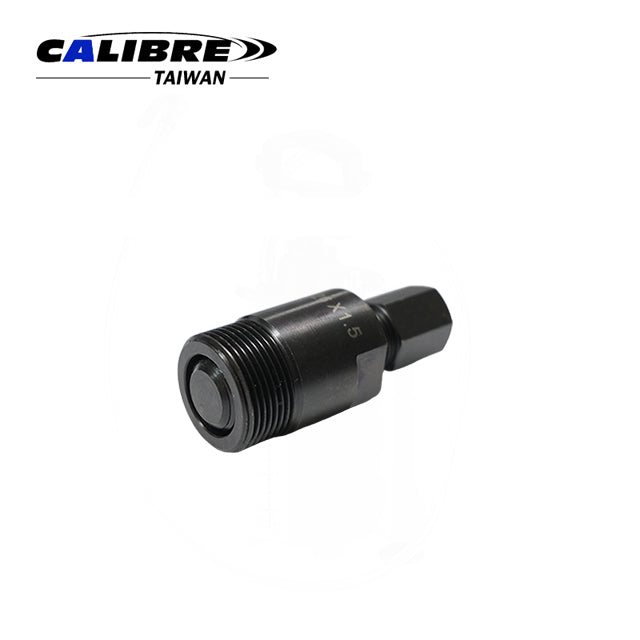

CAN0019-15:

  • 26mm x 1.5 right hand thread (male)
  • Applications:
  • Husaberg: Most 4 stroke 400cc, 501cc and 600cc Off-Road models.
  • Husqvarna: Most late 2 stroke engine models w/C.D.I ignitions.
    KTM: Most 125cc, 250cc, 300cc, 360cc, 495cc XC and MX 2 stroke engine models.
  • ATK-ROTAX: Fits most models.
  • Classic: Most BULTACO, OSSA, MONTESA, SACHS, PUCH, ZUNDAP and CANNONDALE 440 Speed models.

Feature:

  • Lubricate all areas before use.
Packaging:
  • 1pc/Polybag
  • CAN0019-11: 25/100pc/18.7/19.2kgs/0.4'
  • CAN0019-15: 25/100pc/18.8/19.3kgs/0.4'
