CAK0166 TAIWAN CALIBRE 4pc Carbon Fiber Twist Socket Set

CAK0166 TAIWAN CALIBRE 4pc Carbon Fiber Twist Socket Set

Carbon fiber socket

Carbon fiber socket sets remove damaged, rusted, and seized wheel fasteners on cars, SUVs, and light trucks. First, select a 17, 19, or 21mm twist socket. Next, fit it securely over the fastener. Then, attach a 1/2" drive wrench and turn counterclockwise. Meanwhile, carbon fiber sleeves resist expansion under high torque. Finally, use the included punch bar to remove any stuck fastener.

Manual

Contents:

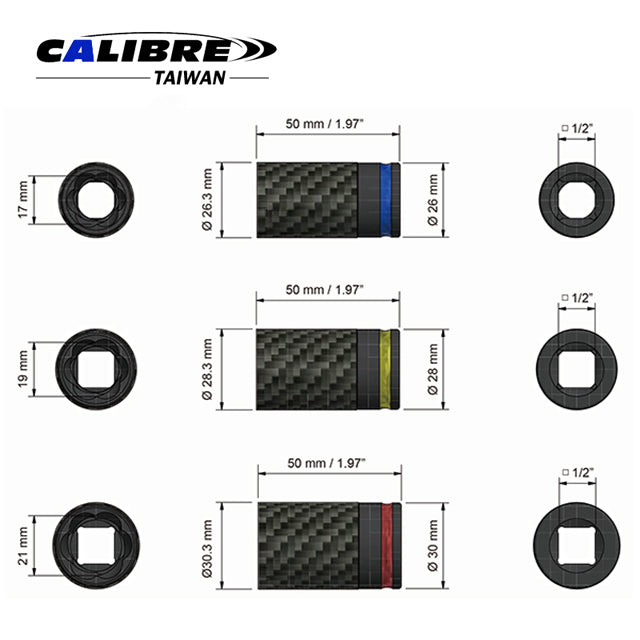

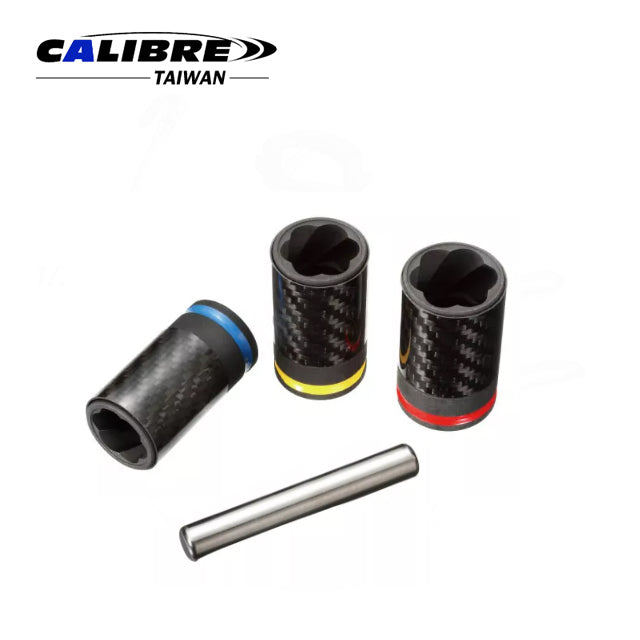

  • 1/2" Dr Socket 17, 19, 21 mm + 1 Punch Bar

Material:

  • Socket: SNCM 439+Manganese phosphate, HRC 50-53
  • Sleeve: Carbon fiber

Feature:

  • For removing damaged, rusted and seized wheel fasteners.
  • Includes 17, 19, and 21 mm twist sockets for common passenger cars, SUVs, and light trucks.
  • Carbon fiber sleeves reinforce the socket body to help resist expansion under extreme torque.

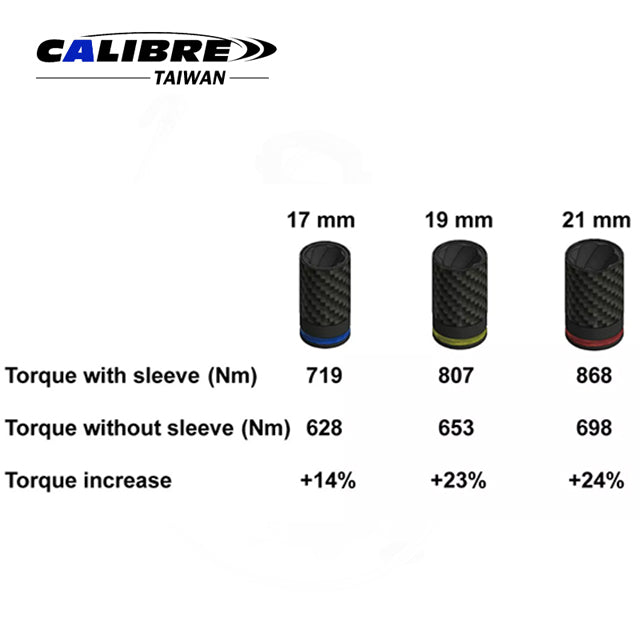

  • Higher torque is helpful for removing extremely rusted, seized wheel fasteners.
  • Can be operated with an impact wrench.

Application:

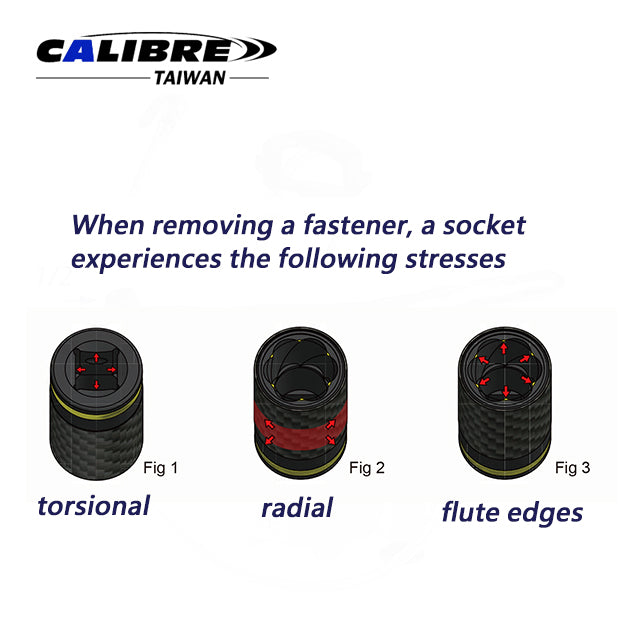

  • When removing a seized lug nut, the socket experiences several stresses:
  • Torsional stress - twisting from the wrench (Fig 1)
  • Radial expansion - socket wall tries to expand outward (Fig 2)
  • Stress concentration - flute edges / teeth are likely to crack (Fig 3)

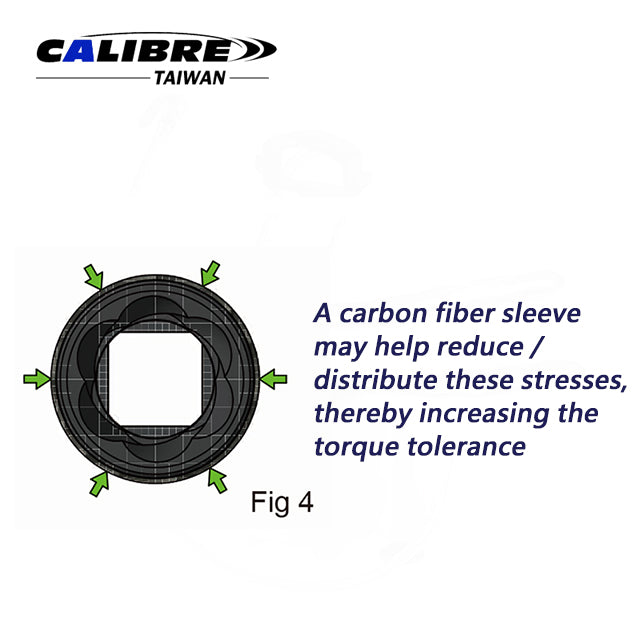

  • When carbon fiber sleeves are added, the socket wall stays rigid, teeth stay engaged, and the sleeves help resist expansion, thereby increasing torque resistance (Fig 4).

Instruction:

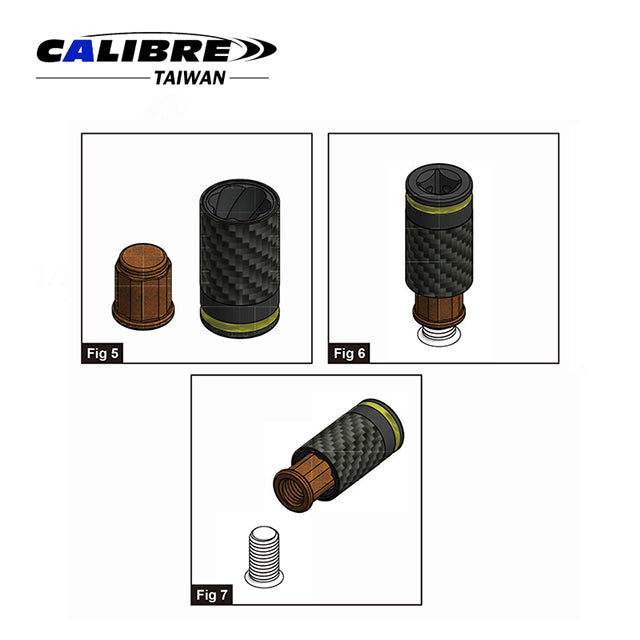

  • Select the appropriate size twist socket for the fastener to be removed (Fig. 5).
  • Fit the twist socket securely over the fastener, then attach a 1/2" drive ratchet wrench to the socket (Fig. 6)
  • Turn the ratchet counterclockwise to loosen and remove the fastener (Fig. 7).
  • If the removed fastener becomes firmly stuck inside the twist socket, use the included punch bar to drive it out.
Packaging:

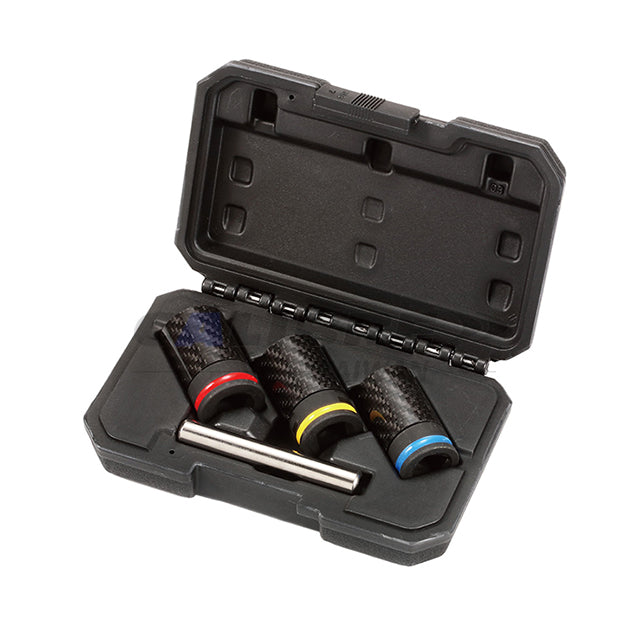

  • 1Set/Blow Mould Case
  • 20Set/12/13kgs/0.7'
