CAK0161 TAIWAN CALIBRE Fuel Filter Removal Tool for LDV Maxus

CAK0161 TAIWAN CALIBRE Fuel Filter Removal Tool for LDV Maxus

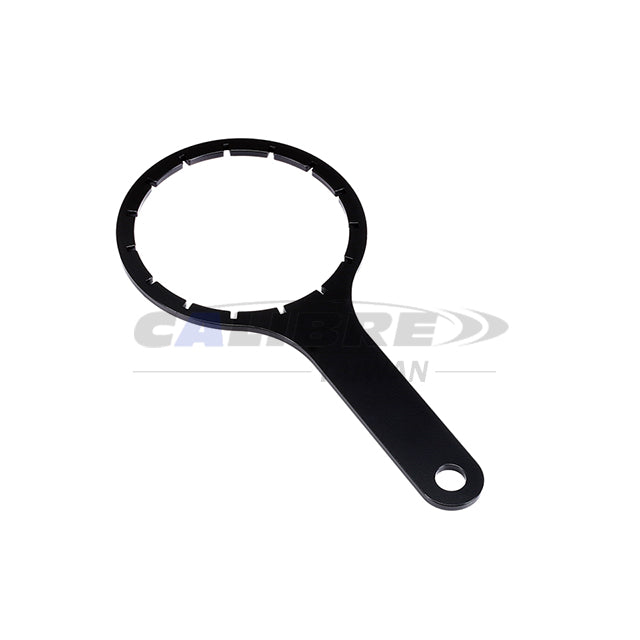

Fuel filter wrench

Fuel filter wrench is designed for LDV Maxus V80, V90, G10, and G20 diesel engines. First, align the 121mm head so the 15 grooves fit perfectly over the fuel filter's outer rim tabs. Subsequently, utilize the 290mm long handle to apply sufficient torque for removal. Because of its high-quality construction, it ensures a secure grip. Finally, turn the handle firmly to loosen the filter housing easily.

Manual

Size:

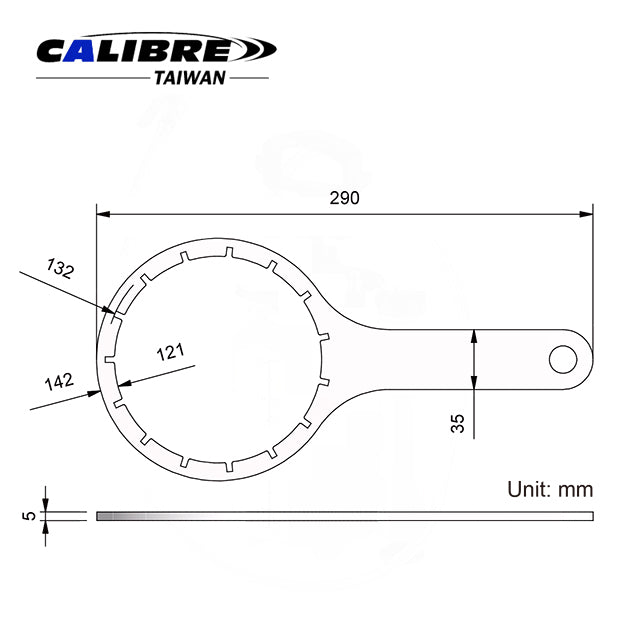

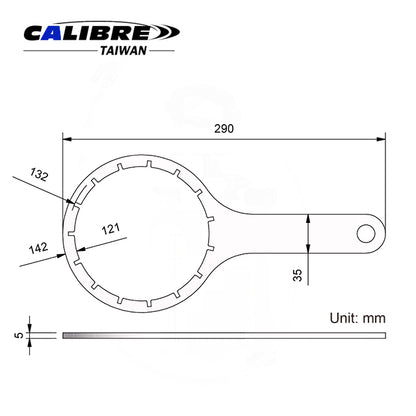

  • Ø121mm with 15 grooves, total length of 290 mm.

Feature:

  • Diesel fuel filter removal tool for use on LDV Maxus V80, V90, G10, and G20.
  • High quality made tool with grooves fit perfectly the small tabs on the outer rim of the fuel filter.
  • Large and long handle to create sufficient torque while removing.

Instruction:

  • The image shown here is for display purpose
  • The fuel filter is fitted upside down on actual cars

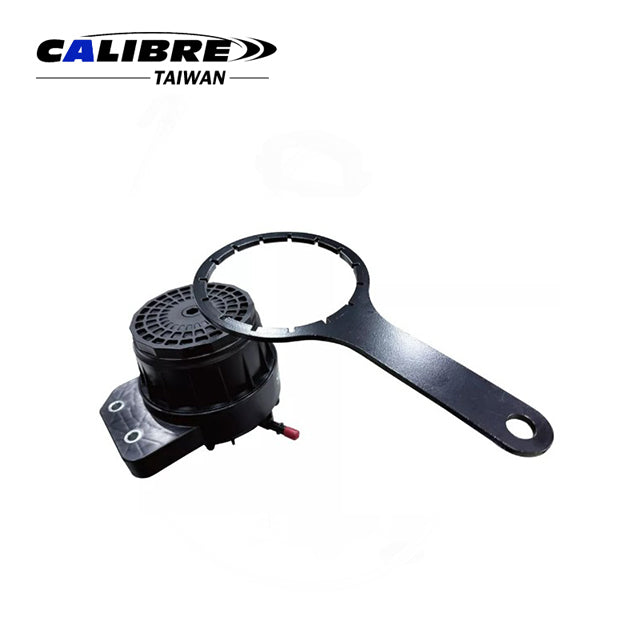

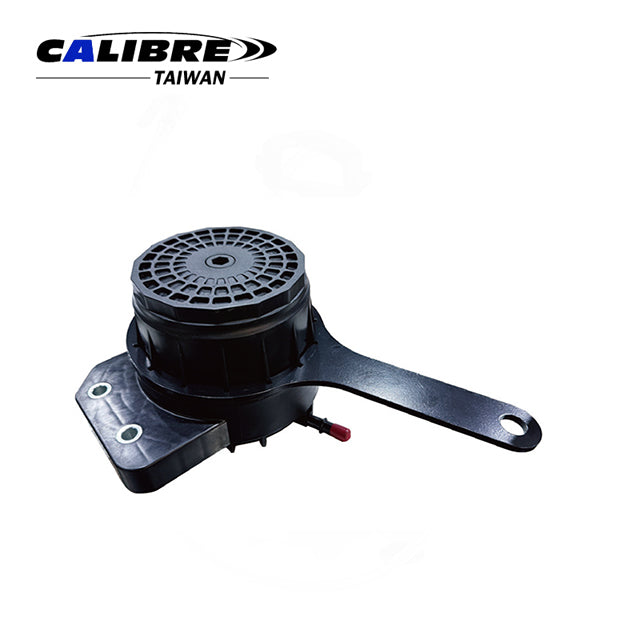

  • Fit the grooves onto the tabs on the outer rim of the fuel filter, and turn counter-clockwise manually for removing the housing in order to replace a new filter
Packaging:
  • 1pc/PE Bag
  • 10/40pc/CTN
