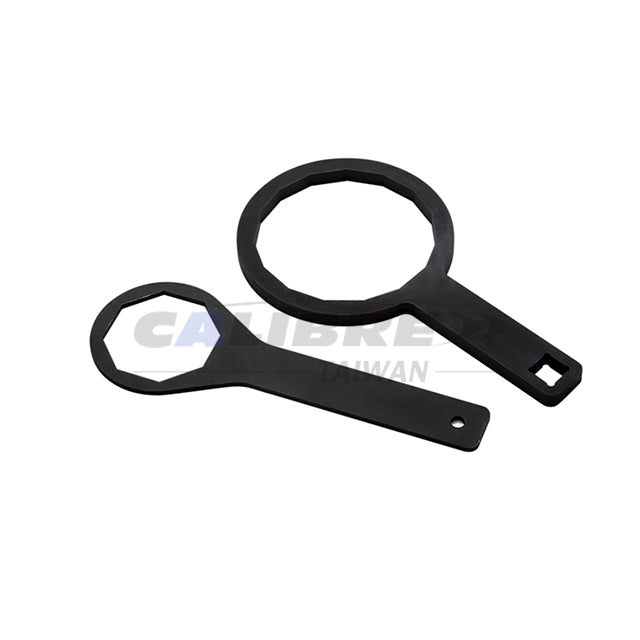

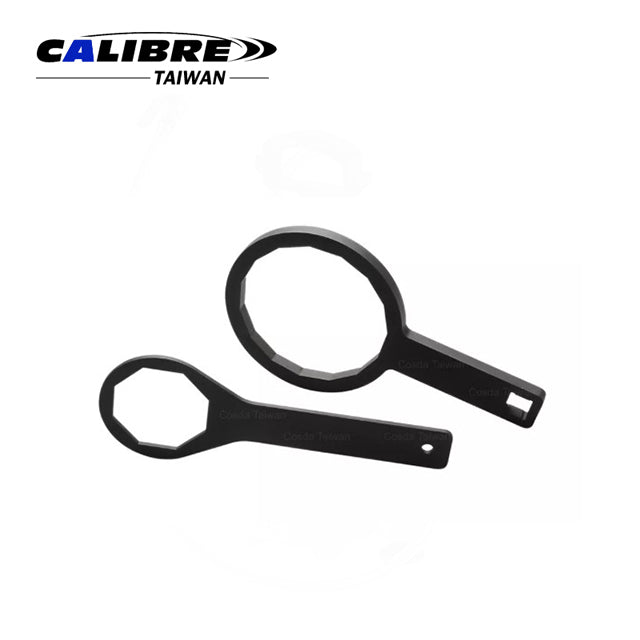

CAK0160 TAIWAN CALIBRE Wrench Set for Removing Fuel Filter and Sensor (2pcs)

CAK0160 TAIWAN CALIBRE Wrench Set for Removing Fuel Filter and Sensor (2pcs)

Fuel filter tool removal

Fuel filter tool removal requires this two-piece wrench set for diesel housings. First, slide the 50.3mm small tool over the sensor cable to engage the cover. Next, turn it counter-clockwise to remove the sensor safely. Afterward, fit the 86mm large wrench onto the housing. Finally, use a 1/2" drive to apply torque counter-clockwise. Consequently, you can replace filters on Ford, Mazda, and other diesel engines without damaging sensors.

Manual

Feature:

  • 2 pieces wrench set for removing diesel fuel filter housings while protecting the sensors.
  • Fitting Ford, Mazda, Mitsubishi, Nissan, and Toyota diesel engines. Please check the
  • Application tab below for reference.
  • 1/2” square drive to provide extra torque when encountering stubborn fuel filters.

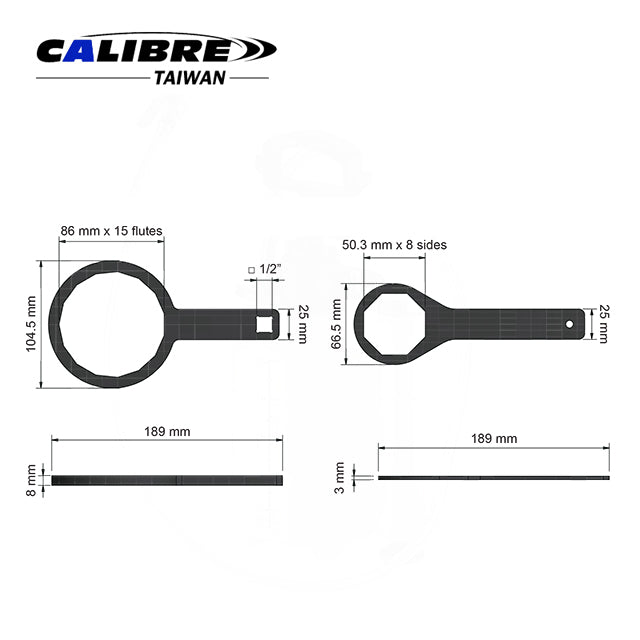

  • Filter wrench size 86 mm x 15 flutes x 1/2" square drive.
  • Sensor wrench size 50.3 mm x 8 sides.

Instruction:

  • Images have been intentionally inverted to provide a clearer visual guide for instructions.

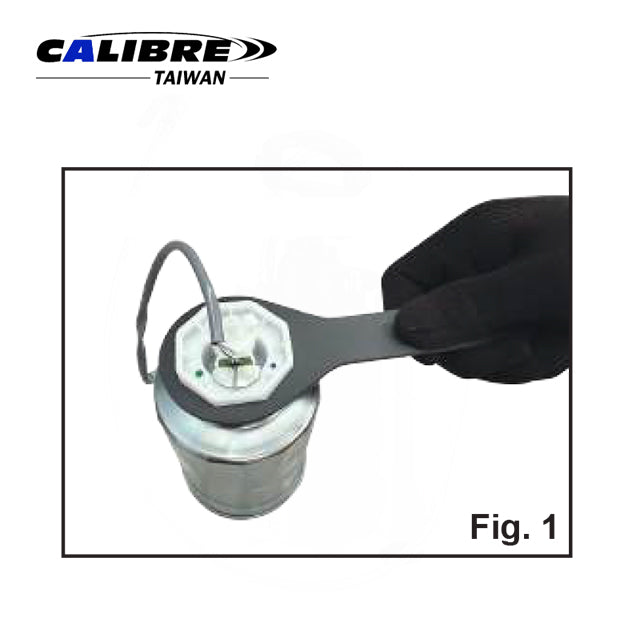

  • Insert the small tool through the sensor cable and fit the tool on the sensor cover (Fig. 1)
  • Turn the small tool counter clockwise to remove the sensor cover.

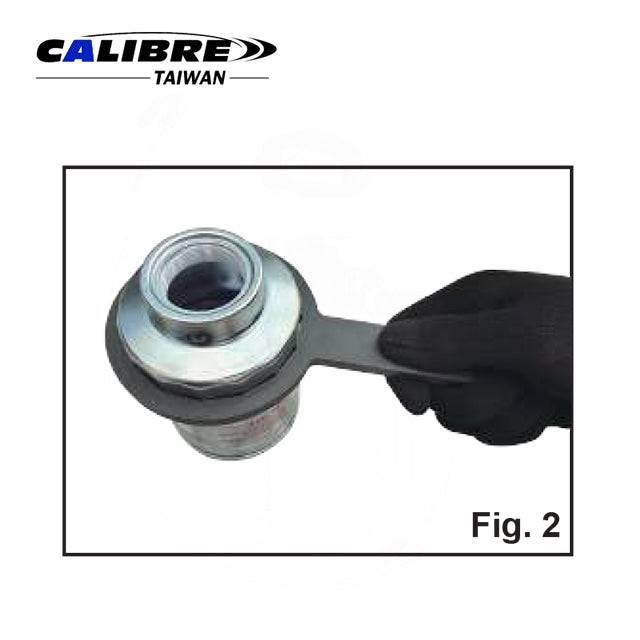

  • Insert and fit the big tool to the fuel filter housing and turn the big tool counter clockwise to remove the fuel filter housing (Fig. 2)
Packaging:
  • 1Set/White Box
  • 10Set/4.7/5.7kgs/0.3'
