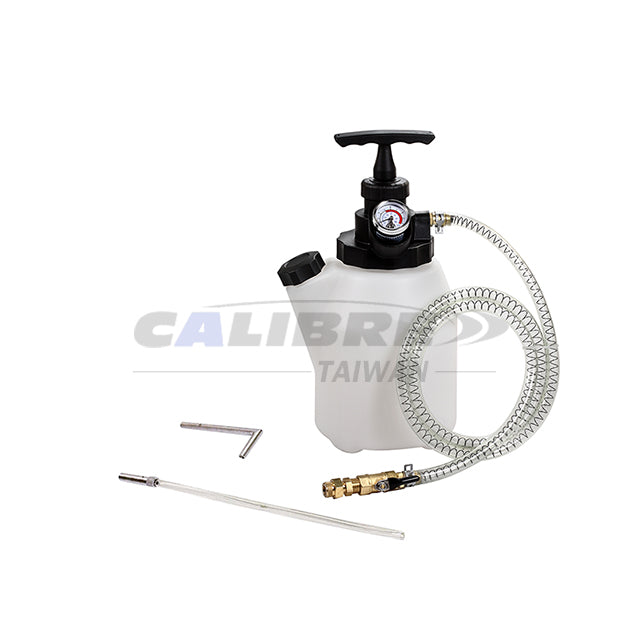

CAK0155A TAIWAN CALIBRE TESLA Gearbox Fluid Refill Set

CAK0155A TAIWAN CALIBRE TESLA Gearbox Fluid Refill Set

Transmission fluid pumps

Transmission fluid pumps facilitate Tesla gearbox maintenance for Models 3, S, X, and Y. First, remove the oil filter and fill plug. Next, pour oil into the 3L tank. Then, connect the specific adapter to the fill hole and open the valve. Afterward, hand-pump the fluid until reaching the correct level. Finally, close the valve, press the pressure release button, and reinstall the gearbox plug.

Manual

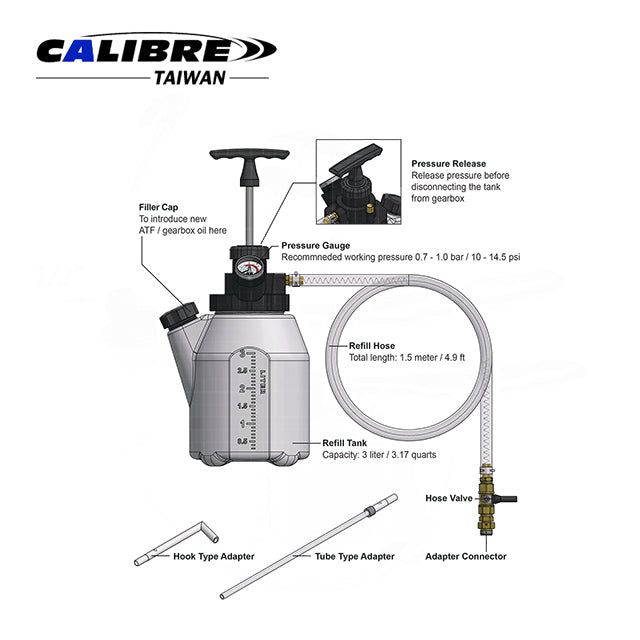

Feature:

  • 3-liter manual tank with 2 adapters specifically designed for Tesla all models.
  • Tank with measuring scale for precise refill on Tesla gearboxes.
  • An internal wire spring prevents the hose from kinking.
  • Cap on the tank side for pouring new ATF / gearbox oil into the tank.

Preparation:

  • Remove (gearbox) oil filter and fill plug as suggested on Tesla service manuals for Model 3, S, X, and Y.
  • Prepare adequate volume of gearbox fluid as specified on the Tesla service manuals, or with reference to the 4. APPLICATIONS section.

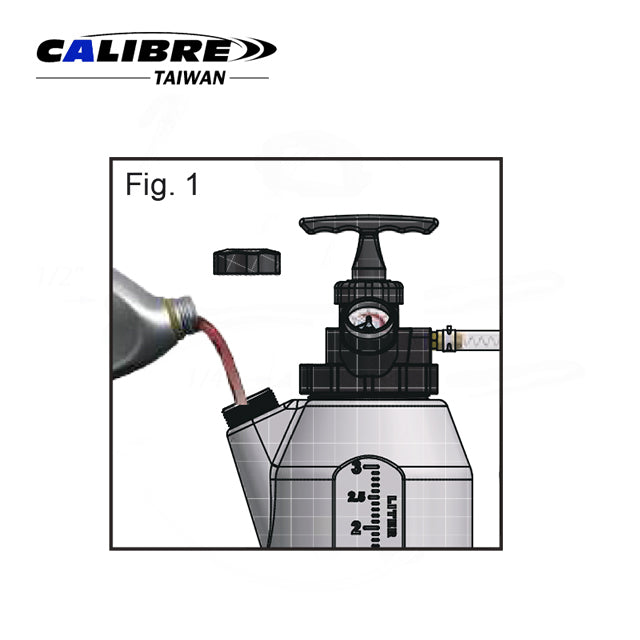

  • Open the side cap and pour new gearbox fluid into the tank (Fig 1).

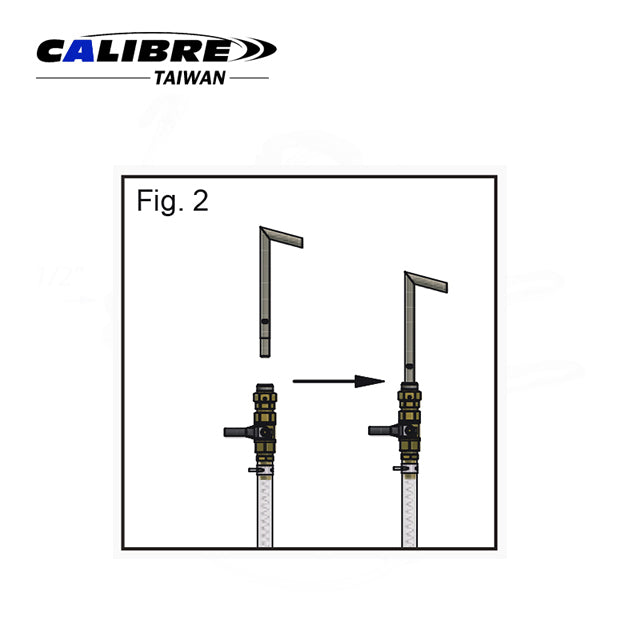

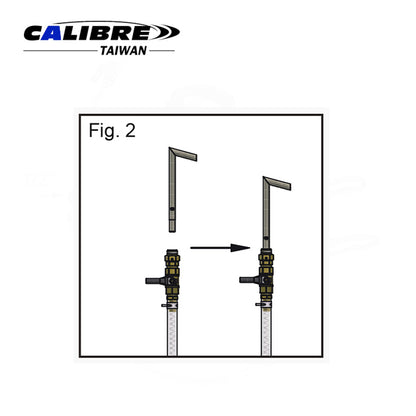

  • Choose a suitable adapter and connect the adapter to the adapter connector on the refill hose end (Fig 2).

Refill the fluid:

  • Connect the adapter to the fill plug hole on gearbox and open the hose valve.

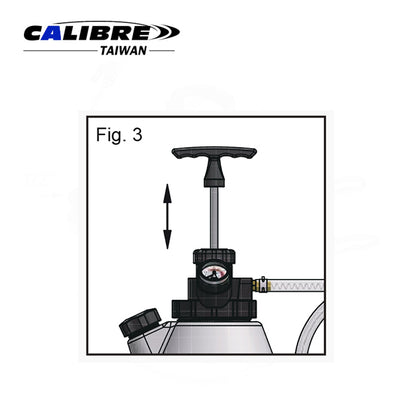

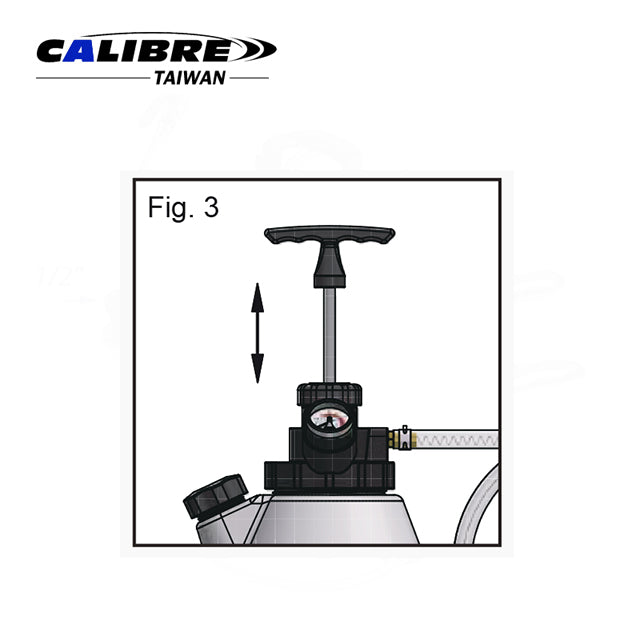

  • Apply pressure by using the hand pump (Fig 3), and the gearbox fluid will be introduced into the gearbox subsequently.
  • When the fluid is refilled to the proper level, close the hose valve.

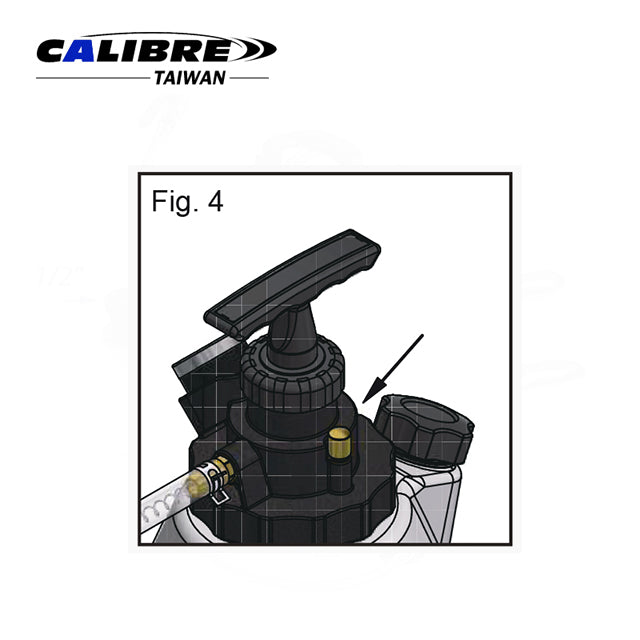

    Press the pressure release button (Fig 4) to make sure no remaining pressure is in the tank.
  • Disconnect the adapter from the hose end and clean the residual oil.
    Connect the fill plug back to the gearbox.

Applications:

  • Listed capacities represent the minimum required refill volumes. Tesla service manuals specify an allowable variance of up to 200 ml. For example, if the minimum refill capacity is 2.1 L, adding the full 2.3 L is not required.
Packaging:
  • 1Set/Corrugated Box
  • 4Set/8/9kgs/4.6'
