CAK0155 TAIWAN CALIBRE Universal ATF Refill Tank Set

CAK0155 TAIWAN CALIBRE Universal ATF Refill Tank Set

Transmission oil change tool

Transmission oil change tool: This tool features a 3-liter manual pump tank with two adapters; therefore, it is compatible with most automatic transmissions and ensures smooth, efficient fluid refilling. First, fill it with new ATF or gearbox oil; then, connect the adapter and pump to refill smoothly. Moreover, the kink-free hose ensures continuous flow, while the pressure release button provides safe depressurization after use, ensuring clean and efficient fluid refilling.

Manual

Feature:

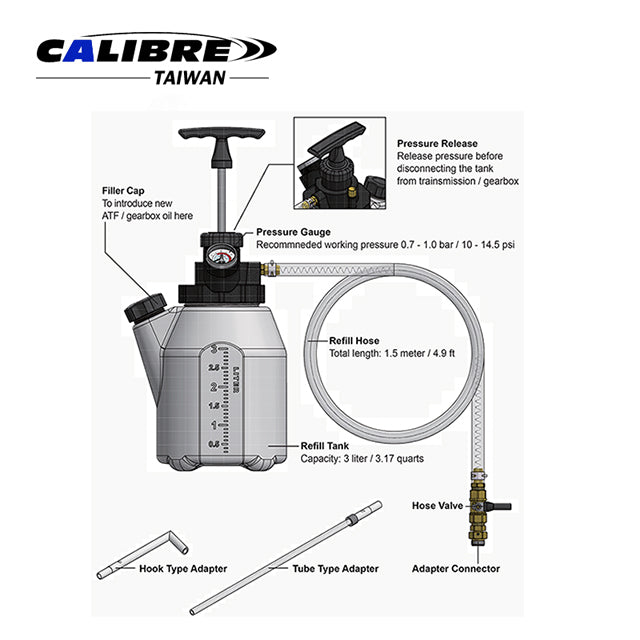

  • 3-liter tank with a manual pump for easy refilling gearbox oil provided with 2 adapters for fitting most automatic transmission / gearbox fill plug holes.
  • The internal wire spring keeps the hose from kinking.
  • Cap on the tank side for pouring new ATF / gearbox oil into the tank.

Preparation:

  • Drain ATF or Gearbox Oil from the transmission
  • Prepare adequate volume of ATF or Gearbox Oil with a reference of the automotive manufacturer’s service manual

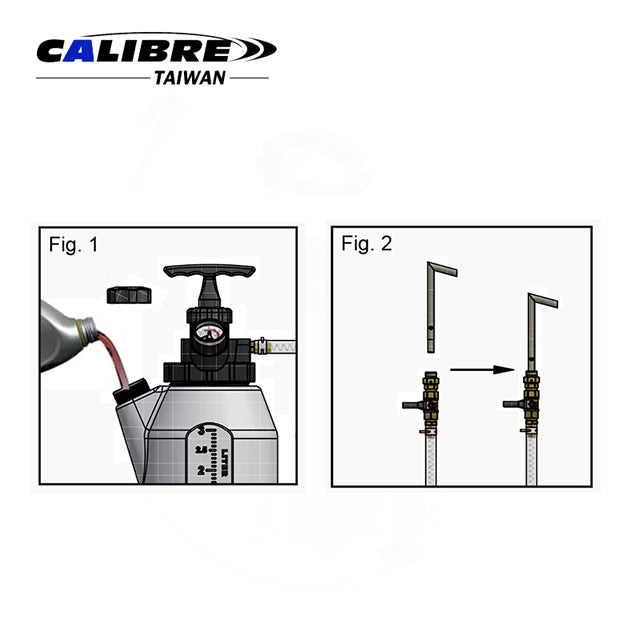

  • Open the cap on the tank side and pour new ATF or Gearbox Oil into the tank (Fig 1)
  • Choose a suitable adapter and connect the adapter to the adapter connector on the refill hose end (Fig 2)

Refill The Fluid:

  • Connect the adapter to the fill plug hole on transmission and open the hose valve

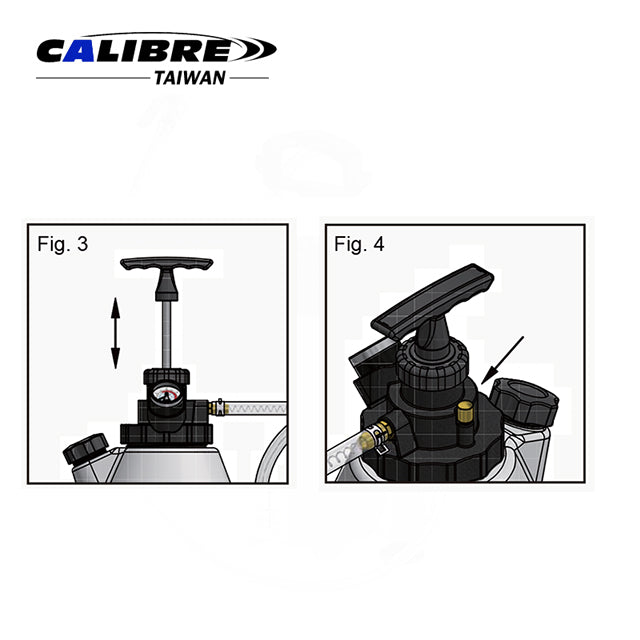

  • Apply pressure by using the hand pump (Fig 3), and the ATF or Gearbox oil will be introduced into the transmission subsequently
  • When the fluid is refilled to the proper level, close the hose valve
  • Press the pressure release button (Fig 4) to make sure no remaining pressure is in the tank
  • Disconnect the adapter from the hose end and clean the residual oil
  • Connect the fill plug back to the transmission
Packaging:
  • 1Set/Corrugated Box
  • 4Set/8/9kgs/4.6'
