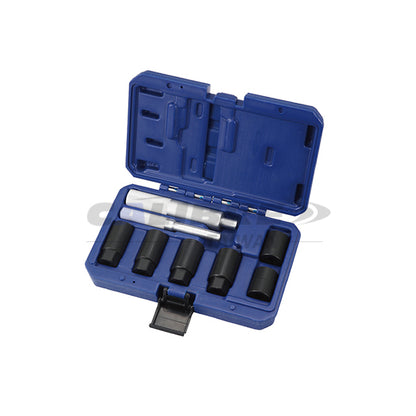

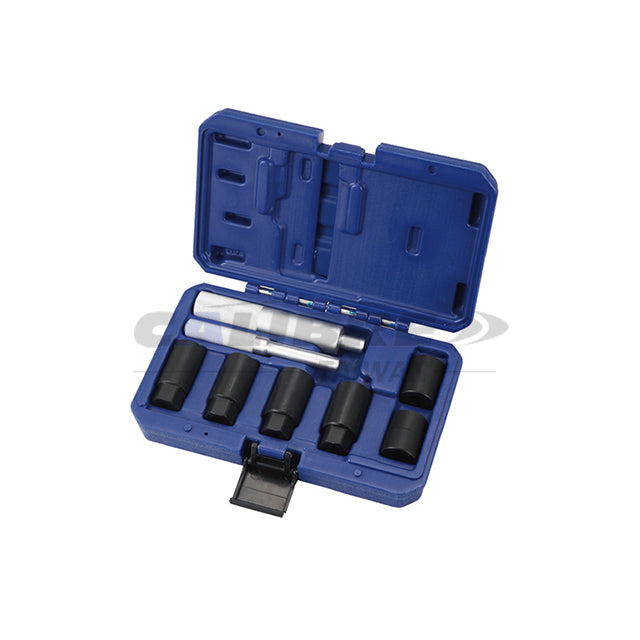

CAK0139 CALIBRE 8pc Wheel Lock Removal Socket Set

CAK0139 CALIBRE 8pc Wheel Lock Removal Socket Set

Lock lug nut removal tool

The Lock lug nut removal tool is specifically designed to remove wheel lock nuts and stripped lug nuts. To begin with, ensure the vehicle is parked securely.

Next, carefully position the tool on the damaged lug nut. Then, apply steady, even force using a hand tool. Importantly, avoid using an air impact tool, since it is not compatible. Once properly aligned, continue applying pressure until the nut loosens. Furthermore, the Lock lug nut removal tool supports multiple wheel lock styles and, as a result, offers universal compatibility.

Manual Download Here

Feature:
  • Designed for removing wheel lock nuts and worn/stripped lug nuts
  • No suitable for working with an air impact tool
  • Universal applications for different wheel lock designs
Packaging:
  • 1Set/Blow Mould Case
  • 20Set/13.7/14.5kgs/0.85'

SPECIFICATION

INSTRUCTION

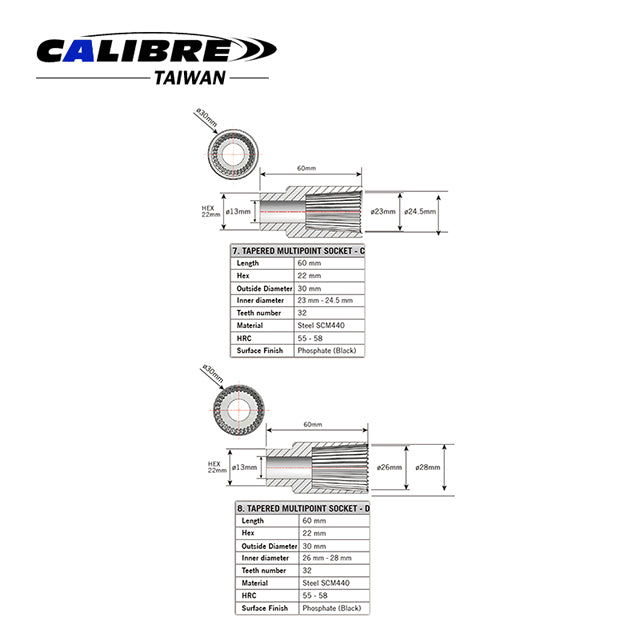

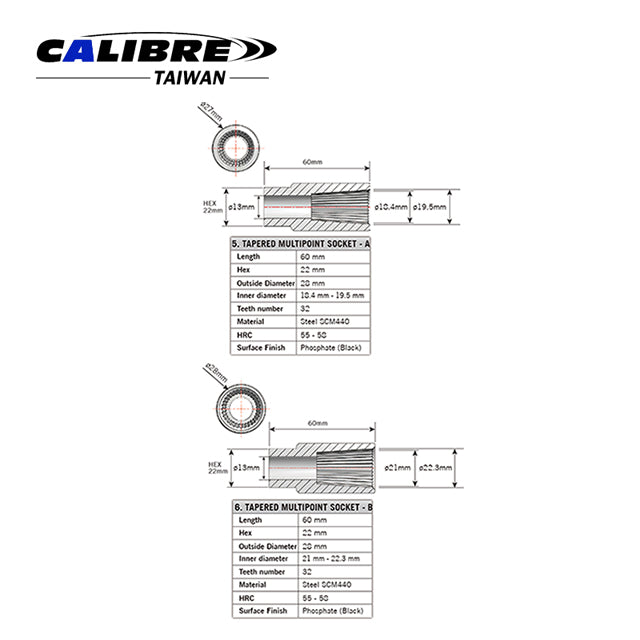

3.1 Tapered Multipoint Socket

1. Choose a suitable-sized socket to fit on wheel lock nut.

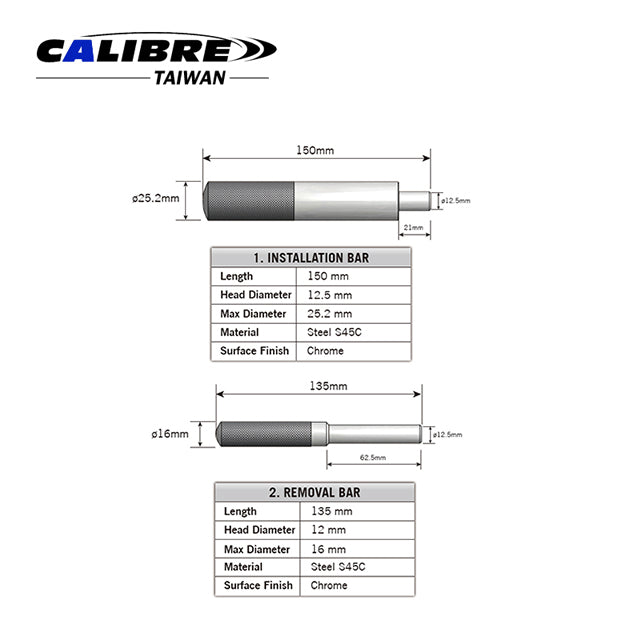

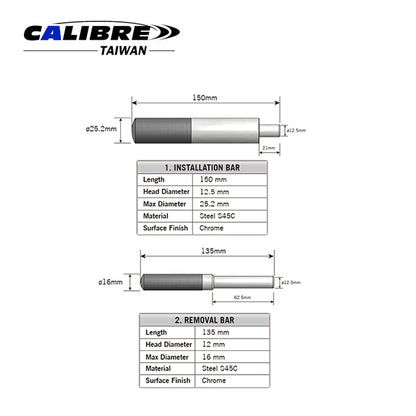

2. Insert the Installation Bar into the socket.

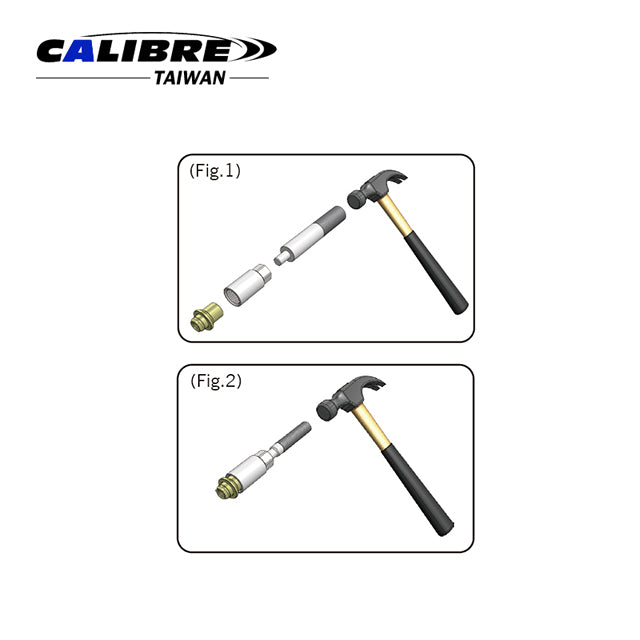

3. Use a hammer to punch the bar, and the multipoint socket can be fit tightly onto the wheel nut (Fig. 1).

4. Use a 22mm spanner (or a socket) to remove the wheel lock nut.

5. After removal, insert the Removal Bar to punch out the wheel lock nut if necessary

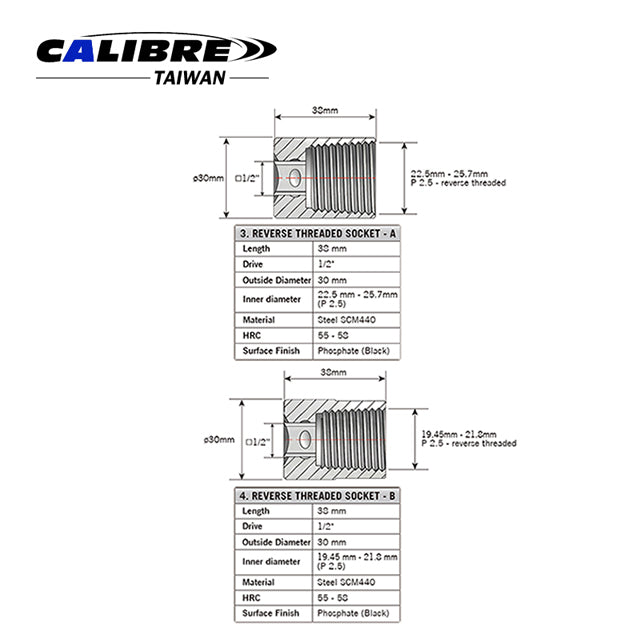

3.2 Reverse Threaded Socket
1. Choose a suitable-sized socket to fit on wheel lock nut.
2. Use a 1/2” DR wrench to turn counter clockwise.
   The reverse threaded socket grips the wheel lock nut more tightly when turned
   counter clockwise.
3. After removal, insert the Removal Bar to punch out the wheel lock nut if necessary
