Projen Taiwan - Auto Tools, Hand Tools manufacturer

CAK0132 TAIWAN Pulsate Coolant Flush Tool Set

CAK0132 TAIWAN Pulsate Coolant Flush Tool Set

Coolant flushing kit

The Coolant flushing kit connects to both an air compressor and a garden hose; furthermore, it uses a pulsating effect to clean impurities. Before proceeding, ensure all connections are secure. Then, use the adjustable trigger to switch between pulsate and consistent-pressure flush.
Meanwhile, install the conical adapter for radiator necks or, alternatively, the barbs for heater hoses. Additionally, check for leaks. Finally, the Coolant flushing kit includes a one-way valve; therefore, it prevents back pressure and ultimately ensures safer operation.

Manual Download Here

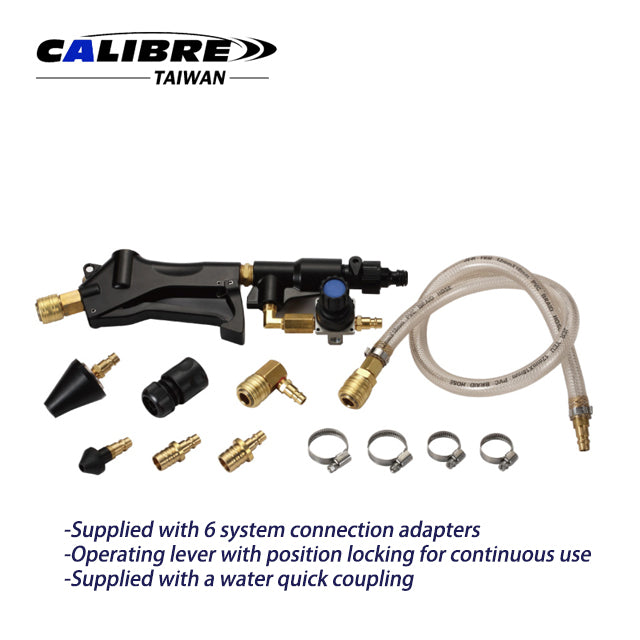

Feature:

  • Powerful coolant flush kits cleans impurities in cooling system with a pulsating effect
  • Adjustable trigger to provide pulsate flush and regular consistent-pressure flush functions
  • Includes a conical adapter for fitting radiator filler necks
  • 5/8” and 1/2” heater hose barbs and a small conical adapter for flushing heater side
  • Connects to air compressor and garden hose for flushing the cooling system
  • Special back pressure one-way valve to avoid excessive pressure accumulated in water hose
Packaging:

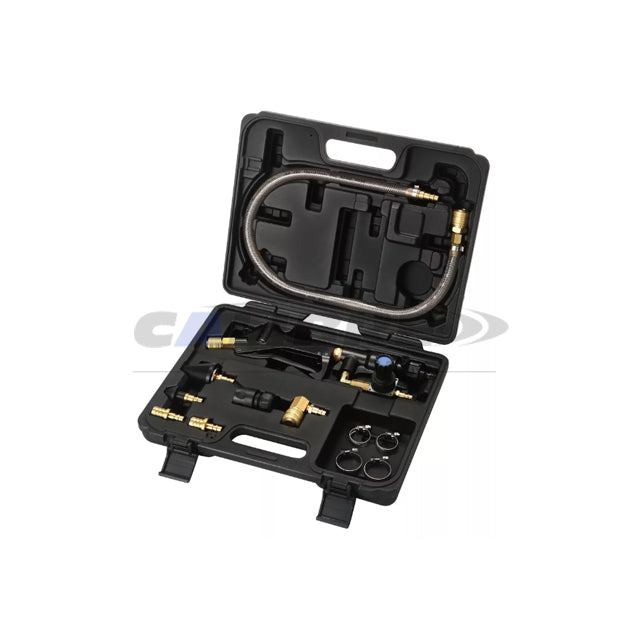

  • 1Set/Blow Mould Case
  • 5Set/13.25/14.25kgs/2.65'

Coolant flushing kit OPERATION MANUAL

For clarity, unless otherwise stated, all sizes are shown in millimeters (mm).

INSTRUCTIONS

1 Connect a garden hose (not included) to the hose connector.
2 Connect air compressor line to air compressor connector.
3 Turn on the water tap/faucet and turn on the water hose control valve.
4 Pull the trigger to test the water flow and adjust the pressure regulator to the desired force.

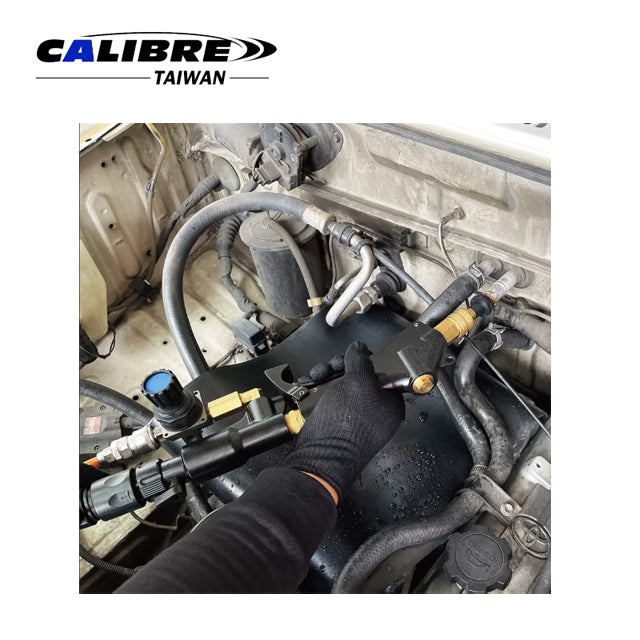

5 Depending on the cleaning area, some hoses or tubes on car may need to be clamped

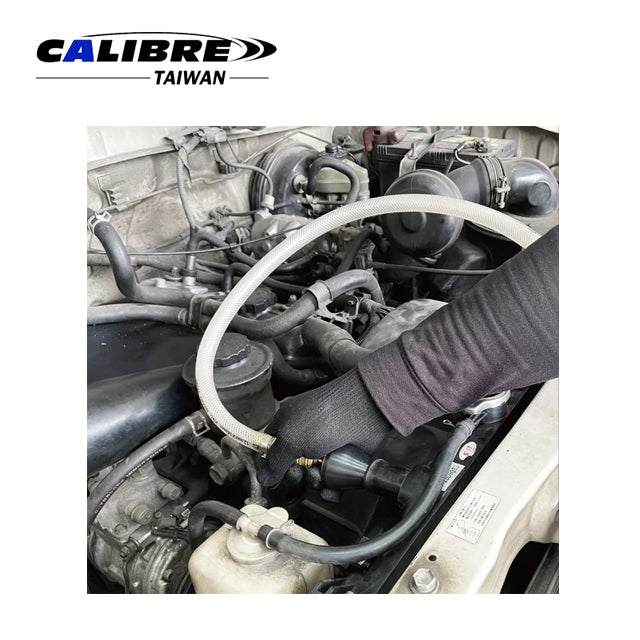

A). for cleaning the radiator -
connect the flush tool to the big conical adapter, and connect the adapter to radiator filler neck.

B). for cleaning engine block -
connect the flush tool to flush hose and the big conical adapter via upper hose or lower hose.
* The removal of the thermostat may be necessary

C). for cleaning heater core -
connect the flush tool to one of the heater core adapters. Connecting the flush hose if the heater core inlet is hard to reach.

OPERATION
1 Press the trigger to the first gear to create the flushing water flow with a pulsating effect.
2 Press the trigger to the second gear to create the flushing water flow without a pulsating effect.

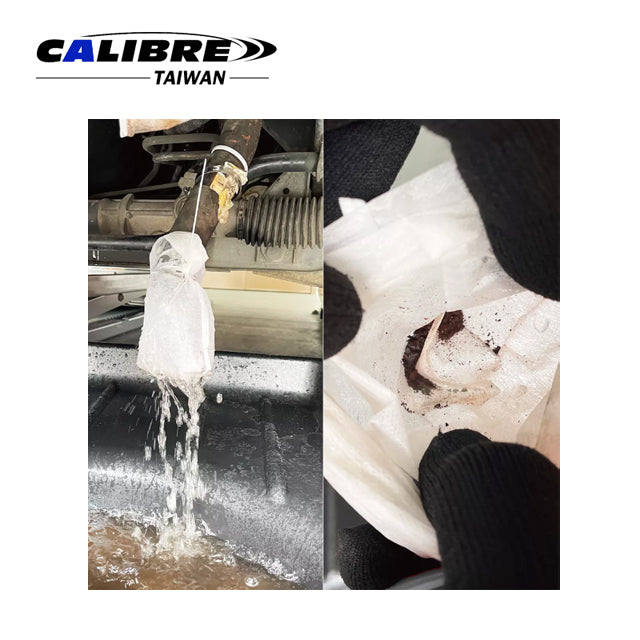

Collect the liquid flushed out, and check the impurities or debris within, and do the proper maintenance, for example changing a water pump, if necessary.

DISCONNECTION
1 Turn off the pressure regulator, and disconnect air compressor line from the tool
2  Turn off the water faucet
3 Disconnect the hose connector from the tool
4 Drain the residual water in the tool
5 Turn off the water valve before storage
