CAK0112 TAIWAN CALIBRE Internal Coil Spring Compressor

CAK0112 TAIWAN CALIBRE Internal Coil Spring Compressor

Coil springs compression tools work with springs having an internal diameter over 75mm and an external diameter under 155mm. Special pins ensure a secure connection. Operate with an air or impact wrench for efficiency. Coil springs compression tools Maximum load capacity is 6,525 kgf, with a break point of 12,900 kgf.
Feature:
  • Suitable for coil springs with internal diameter > Ø 75 mm and external diameter < Ø 155 mm

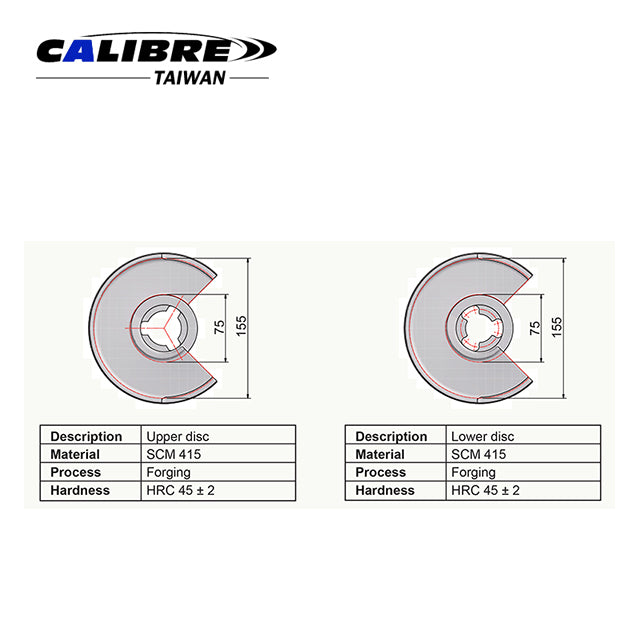

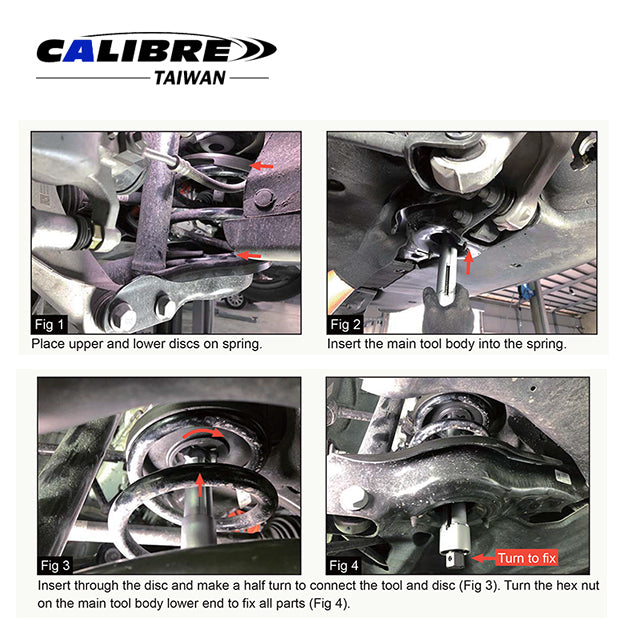

  • Special pins on tool body to mesh with grooves on discs to create a secure connection (see illustration on the right)

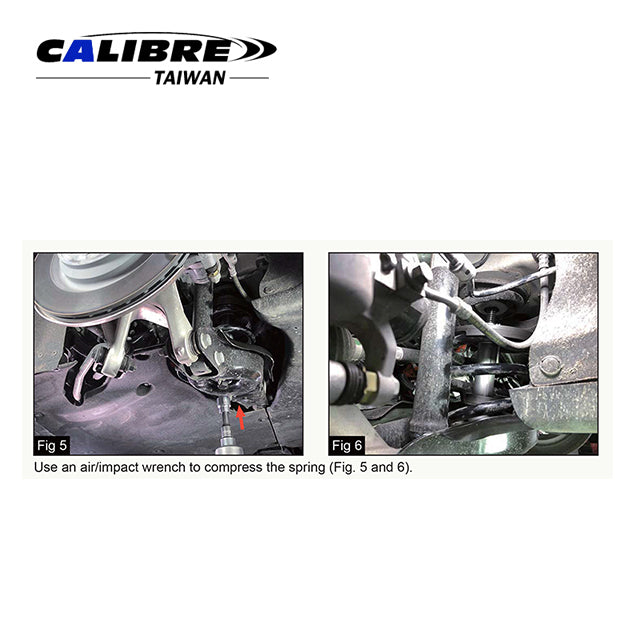

  • Can be operated with an air/impact wrench
  • Provided with product liability insurance
  • Break point: 12,900 kgf (ca. 126,505 N)
  • Max load: 6,525 kgf (ca. 64,000 N)
Packaging:

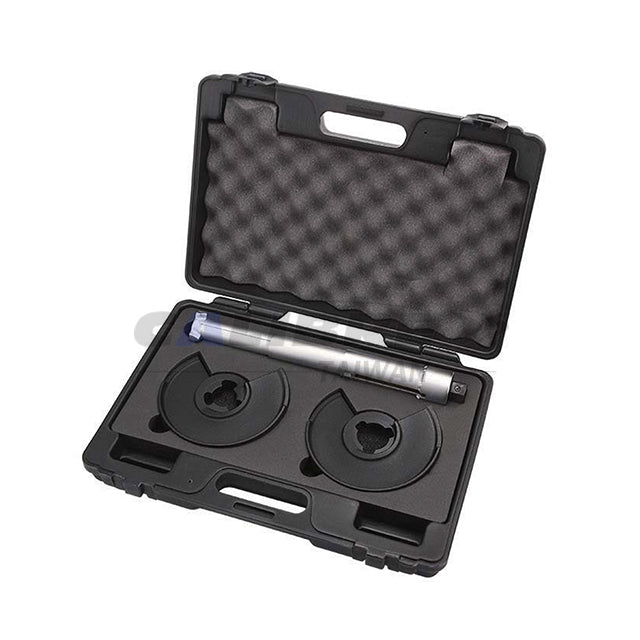

  • 1Set/Blow Mould Case
  • 4Set/21.5/22.5kgs/2.54'
