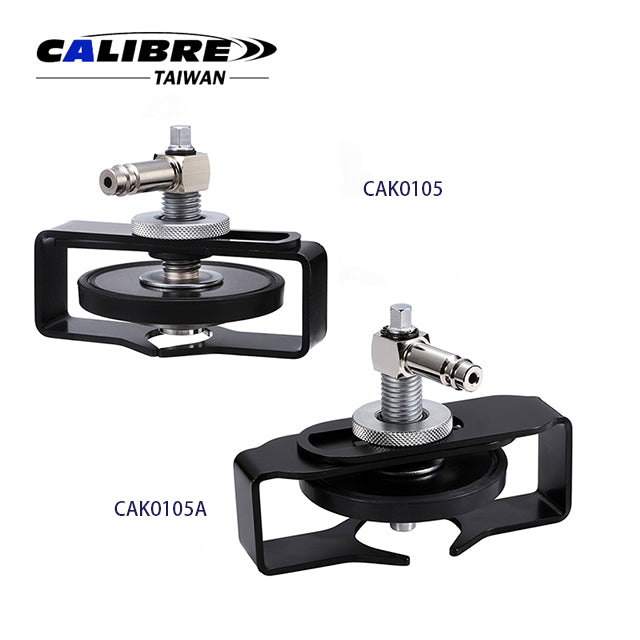

CAK0105 TAIWAN CALIBRE Universal Brake Fluid Refilling Adapter

CAK0105 TAIWAN CALIBRE Universal Brake Fluid Refilling Adapter

Brake bleeder tool

The Brake bleeder tool is a versatile adapter for most vehicles. To use, unscrew the nut to adjust the wings (Ø26-79mm), then set the height screw to fit the master cylinder neck. Securely connect the 90° rotating coupling before attaching brake service machines. Built with 4130 steel and EPDM rubber, it supports up to 3.5 Bar. Ensure a tight seal to prevent leaks during refilling.

Manual

Size:

  • Fill neck between Ø26-79 mm/1.0”-3.1”.
  • Maximum pressure up to 3.5 Bar/ 50 psi.

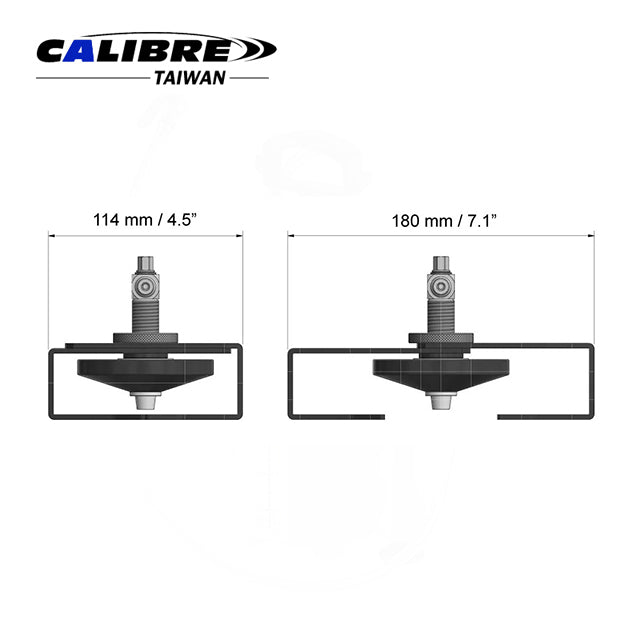

Width:

  • CAK0105: 26mm
  • CAK0105A: 40m

Material:

  • Product Body: 4130
  • Bottom rubber: EPDM
  • Silver connector: ASTM C36000

Feature:

  • Brake refilling adapter with a 90° rotating coupling fits almost all vehicles on the market.

Instruction:

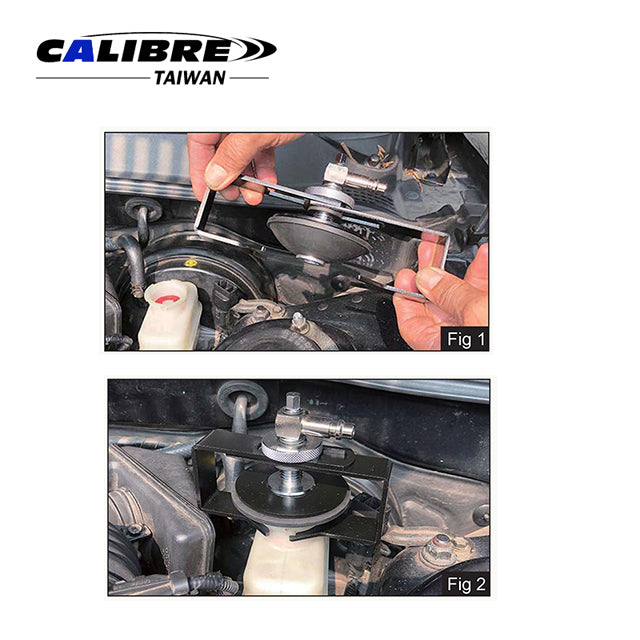

  • Unscrew the width adjusting nut to adjust the opening of the wings (Fig 1).
  • Adjust the height adjusting screw in order to fit the master cylinder filler neck.
  • Make sure the adapter is securely connected on the master cylinder filler neck before connecting the adapter to brake service machines (Fig 2).

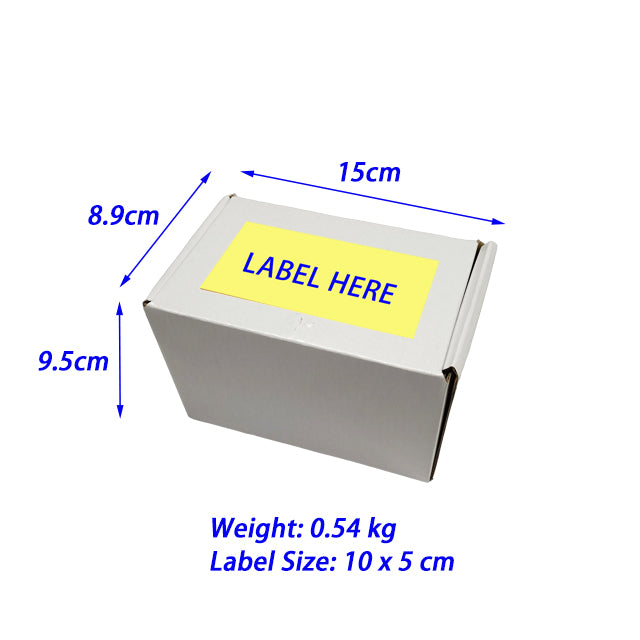

Packaging:
  • 1Set/White Box
  • 20Set/11.5/12.5kgs
