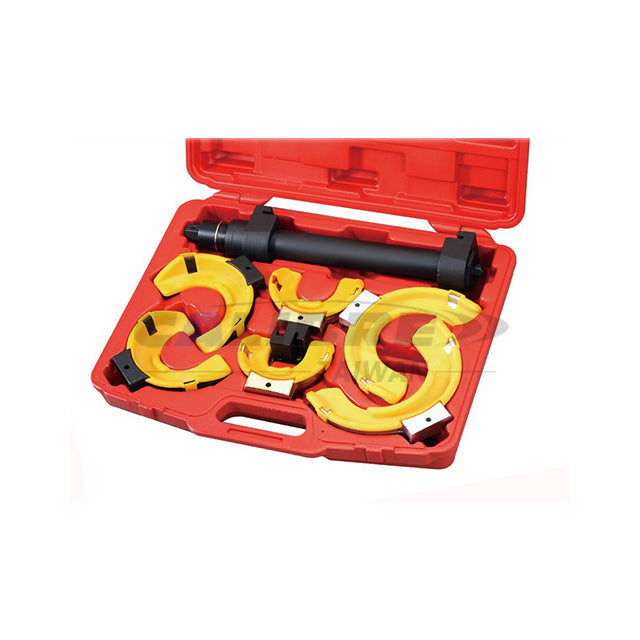

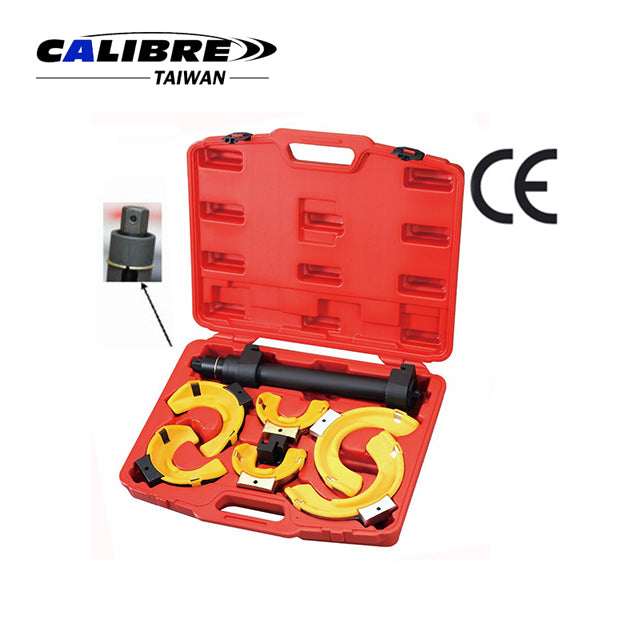

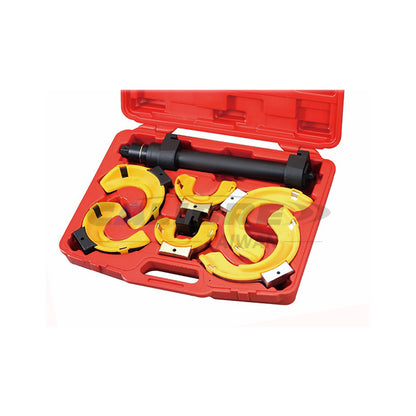

CAK0099 CALIBRE Heavy Duty Macpherson Spring Compressor

CAK0099 CALIBRE Heavy Duty Macpherson Spring Compressor

Coil spring compressor tools efficiently compress heavy-duty MacPherson shock absorber springs and are compatible with air or impact wrenches. Moreover, they include Nylon 6-6 jaw covers, which not only protect the coil spring paint but also enhance durability.
In addition, the included rectangle block allows for secure vise mounting, thereby improving stability during use. Furthermore, these tools provide a maximum load capacity of 2,728 kgf and a break point of 6,820 kgf, ensuring both strength and reliability.
As a result, users can perform safe and efficient spring compression. Consequently, these tools minimize the risk of damage during operation. Therefore, they are an excellent choice for professionals who require high-performance and long-lasting durability.
Feature:
  • Set for heavy duty Macpherson shock absorber springs
  • Suitable for air/impact wrench operation
  • Provided with nylon 6-6 jaw covers to protect coil spring paint
  • Provided with a rectangle block that can be attached to main body for being fixed on a vise
  • Break point: 6,820 kgf (ca. 66,836 N)
  • Max. load: 2,728 kgf (ca. 26,000 N)
  • Provided with product liability insurance
Instructions:

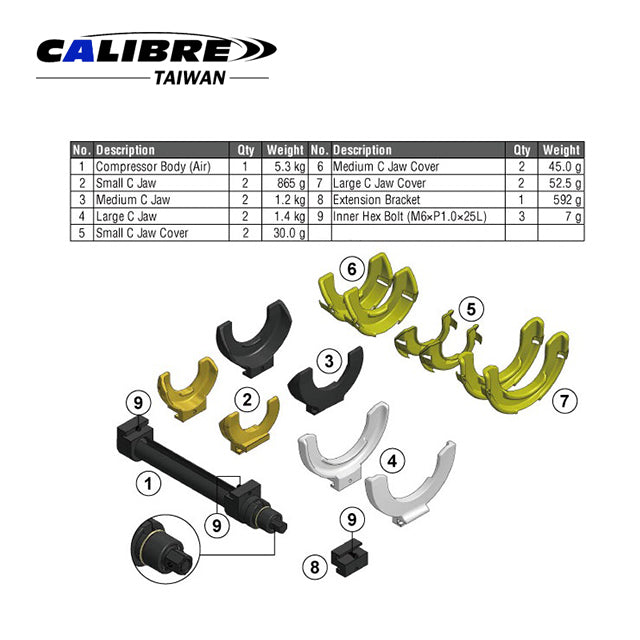

  • Choose a suitable-sized pair of jaws.
  • Fix the main body of this product on a vise, as the image on the right shows.
  • Use a 24mm spanner to rotate anti-clockwise the nut at the end of the main body to extend it to the desired length.
  • The pins, as the red circle shows on the image on the right, on the main body are to fix the jaws.
  • Install the shock absorber coil springs on the main body with jaws.  Make sure the springs are securely connected to the jaws.

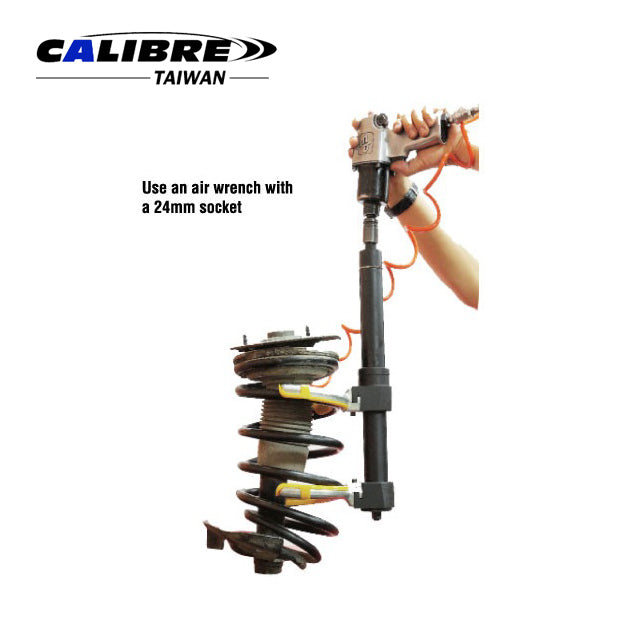

  • Use an air wrench to compress the springs.
Packaging:
  • 1Set/Blow Mould Case
  • 1Set/28.5/29.5kgs/2'
