Projen Taiwan

CAK0097 TAIWAN CALIBRE Oil Drain Plug System Kit

CAK0097 TAIWAN CALIBRE Oil Drain Plug System Kit

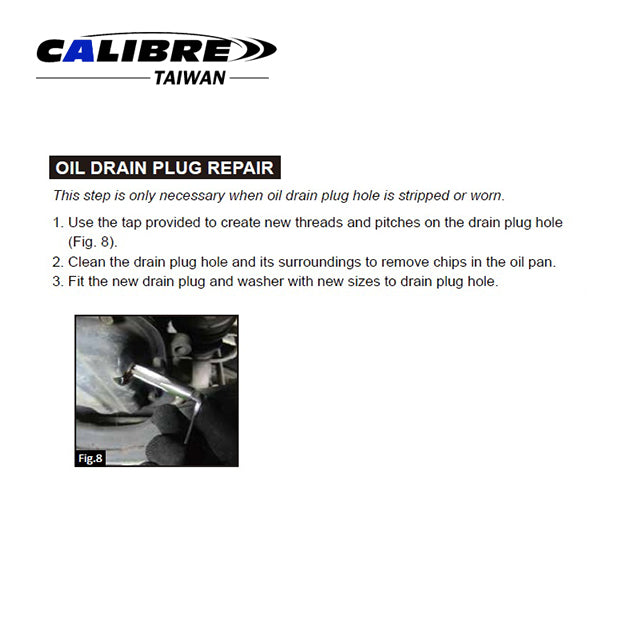

How to fix a stripped oil drain plug

How to fix a stripped oil drain plug effectively: First and foremost, measure thread pitch using the pitch gauge. Next, furthermore, drain hot oil safely using the magnetic tool. After that, meanwhile, enlarge the worn hole using the steel tap. In addition, consequently, install the new plug and copper washer. Finally, therefore, tighten securely; thus, as a result, preventing leaks.

Feature:

  • Repairs stripped or worn drain plug holes on oil or transmission pan by enlarging the holes and fit with new drain plugs and washers.
  • Magnetic drain plug tool: Helps mechanics drain hot and dirty engine oil without having a direct physical contact to the oil.
  • Special magnet with strong attraction force and high temperature resistant (up to 120ºC / 248ºF)

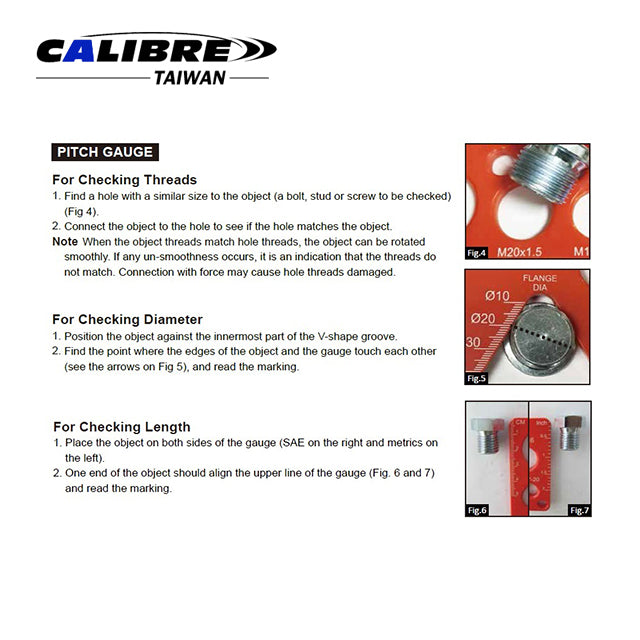

  • Pitch gauge: Helps mechanics determine a fastener’s diameter, pitch and length with most common sizes without needing several tools at hand.

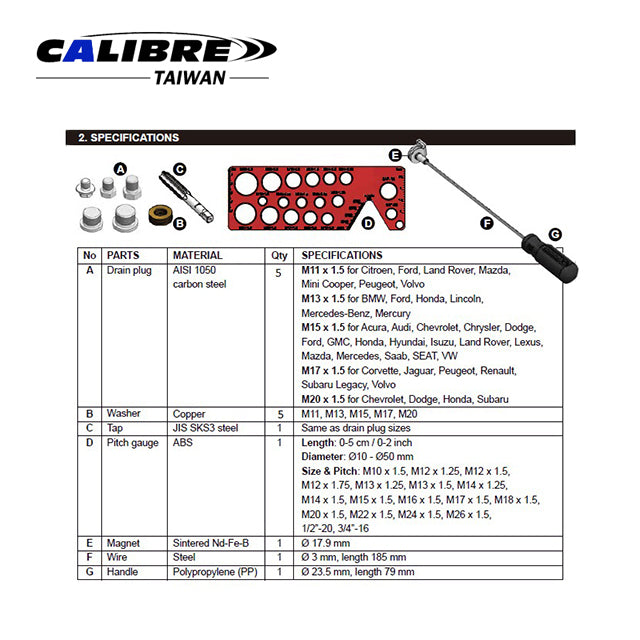

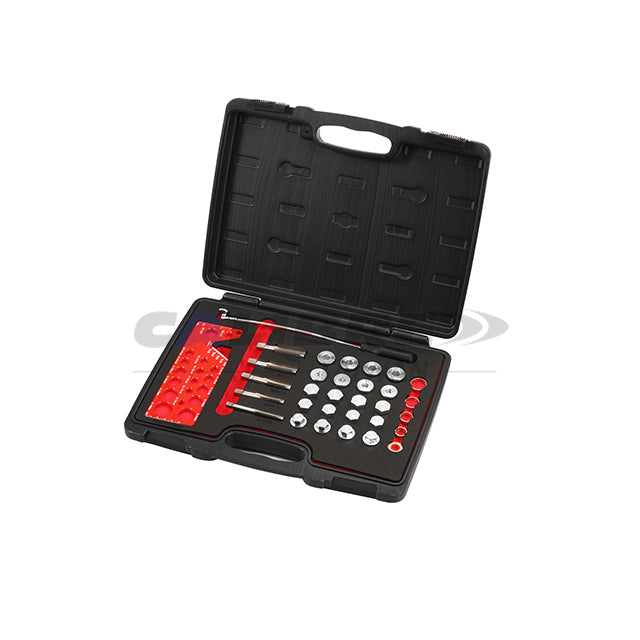

Contents:

  • 5pc Drain plug: M11 x 1.5, M13 x 1.5, M15 x 1.5, M17 x 1.5, M20 x 1.5
  • 5pc Copper Washer: M11, M13, M15, M17, M20
  • 1pc Steel Tap

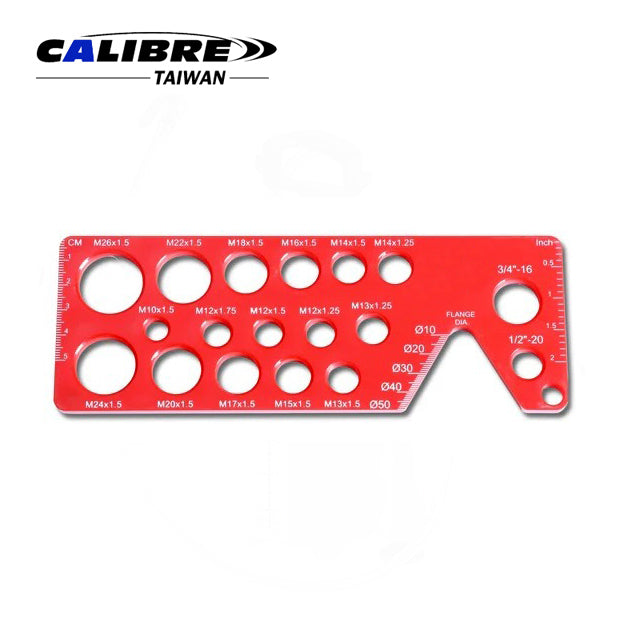

  • 1pc Pitch gauge: Length: 0-5 cm / 0-2 inch, Diameter: Ø10 - Ø50 mm
  • 1pc Magnetic drain plug tool
Packaging:
  • 1Set/Blow Mould Case
