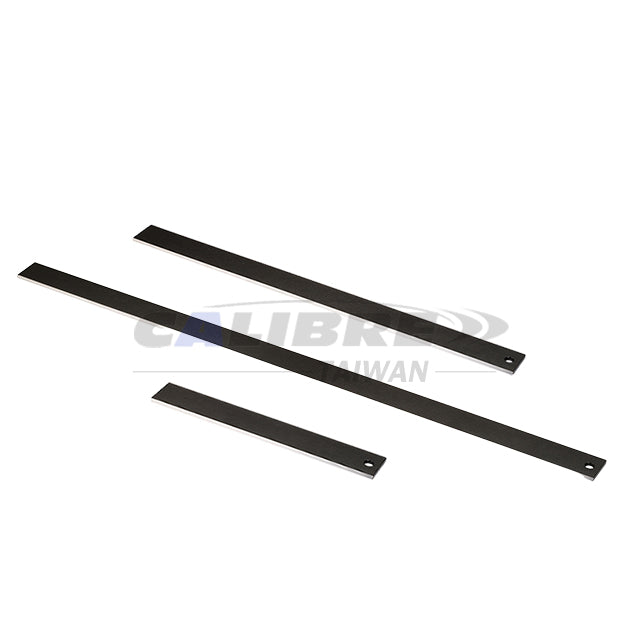

CAK0090 TAIWAN CALIBRE Cylinder Head Surface Rectifier With Protection Cover

CAK0090 TAIWAN CALIBRE Cylinder Head Surface Rectifier With Protection Cover

Size

Cylinder head resurfacer

Cylinder head resurfacer tools verify engine block flatness during overhauls. First, select the appropriate S50C steel tool size for your engine. Next, place the rectifier onto the cylinder base. Then, check the manufacturer's manual for specific clearance limits. Additionally, tilt the tool and insert a feeler gauge at various spots. Finally, confirm the tolerance is within 0.03 mm to ensure a precise seal.

CAK0090A Manual

CAK0090D Manual

CAK0090E Manual

Size:

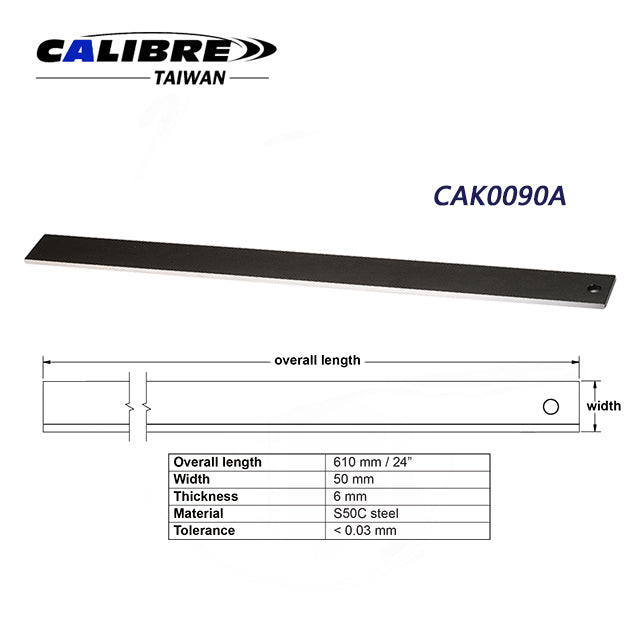

  • CAK0090A: 610mmL / 24”

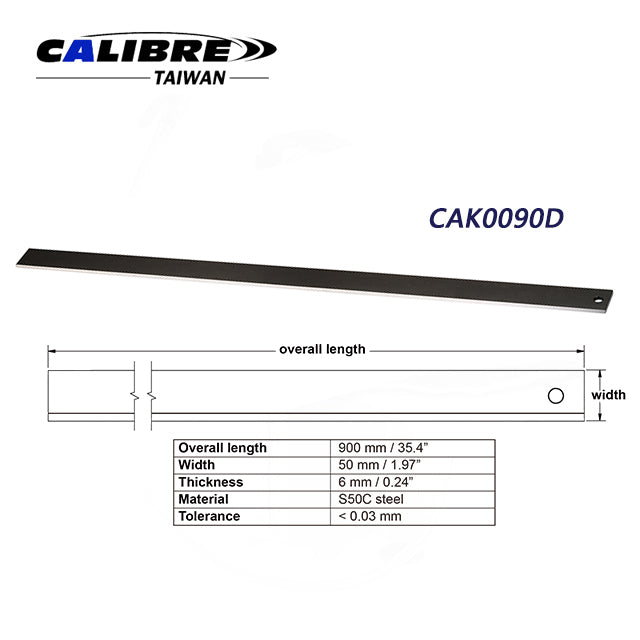

  • CAK0090D: 900mmL / 35.4”

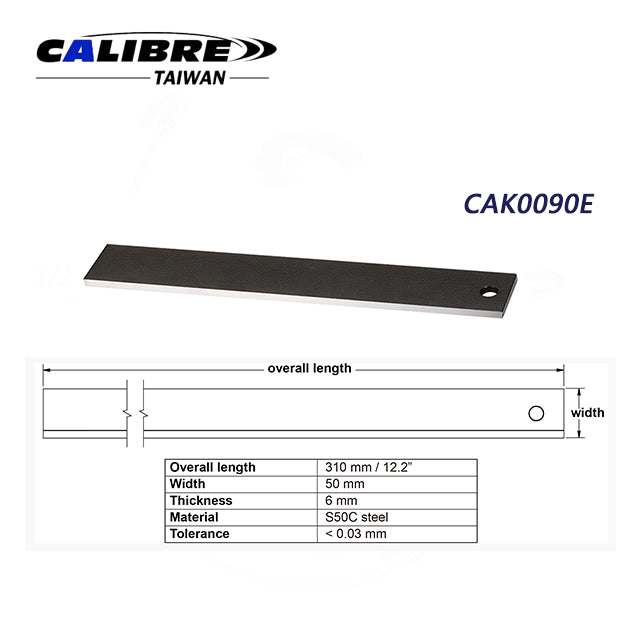

  • CAK0090E: 310mmL / 12.2”

Material:

  • S50C Steel

Feature:

  • Precise test for engine block and cylinder head when reassembling or overhauling an engine.
  • Additionally, work with a feeler gauge.
  • Tolerance < 0.03 mm.

Application:

  • CAK0090A: for 4 and 6-cylinder engines.
  • CAK0090D: for inline 6 or 8-cylinder engines with more than 600mm in length, especially for pickup trucks and commercial vehicles.
  • CAK0090E: Furthermore, for engines on ATVs, motorcycles, small 3-cylinder passenger cars, small diesel electric machine, and small marine vessels.

Instruction:

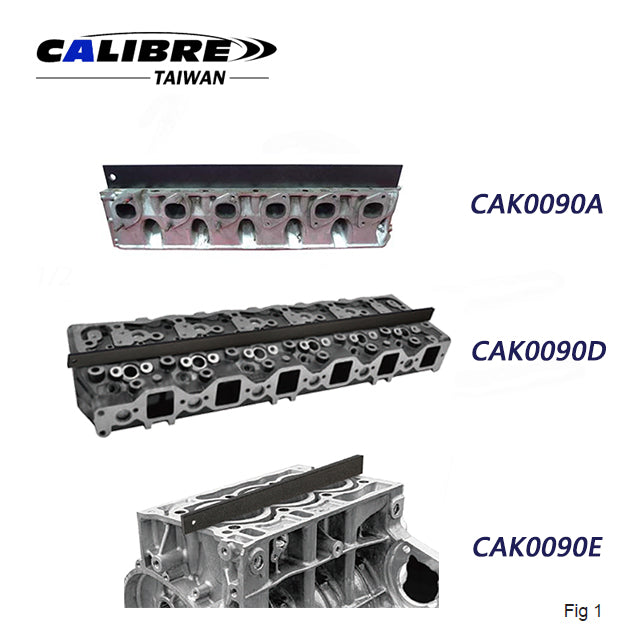

  • Place the surface rectifier on the cylinder base (Fig. 1).
  • Refer to automotive manufacturer’s service manual for the minimum clearance.
  • Slightly tilt the surface rectifier and use a feel gauge with the proper thickness.

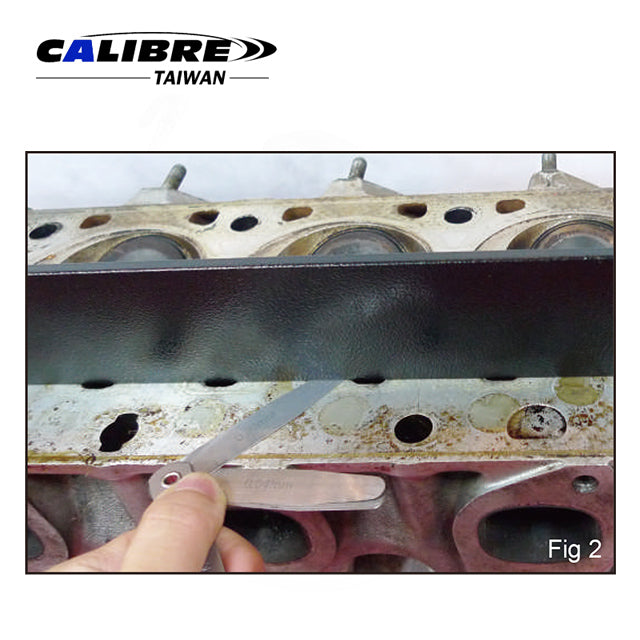

  • Insert the gauge into several spots to see if the clearance is acceptable (Fig. 2).
Packaging:
  • 1pc/PE Bag CAK0090A: 5/10pc/14.5/15.5kgs/0.5'
    CAK0090E: 5/10pc/7.5/8.5kgs/0.26'
    1pc/PE Foam CAK0090D: 1/6pc/15/16kgs/1'
