CAK0078C TAIWAN CALIBRE Hose Removal Pliers (Locking Type)

CAK0078C TAIWAN CALIBRE Hose Removal Pliers (Locking Type)

Hose removal tool

Hose removal tool: First, this CR-MO steel tool easily disconnects 3/16”, 1/4”, and 3/8” lines. Next, the screw locking design ensures a firm grip, while the pointed jaw tip accesses confined spaces. Consequently, it is ideal for smooth tubes where pushing is impossible. Finally, its 202mm length provides the necessary leverage for secure operation.

Manual

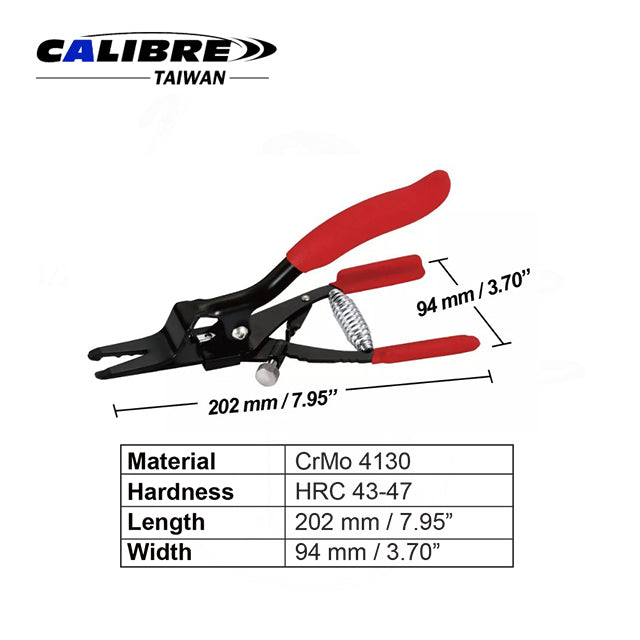

Size:

  • Length: 202mm / 7.95”
  • Width: 94 mm / 3.70”

Material:

  • CR-MO 4130, HRC 43-47

Feature:

  • Initially, this tool easily disconnects hoses. Furthermore, it achieves this by firmly gripping the tubes or lines.
  • Jaw for 3/16”, 1/4” and 3/8” tubes and lines.
  • Especially suitable for hoses connected to tubes or lines with smooth surface, where exercising pushing force is not possible.

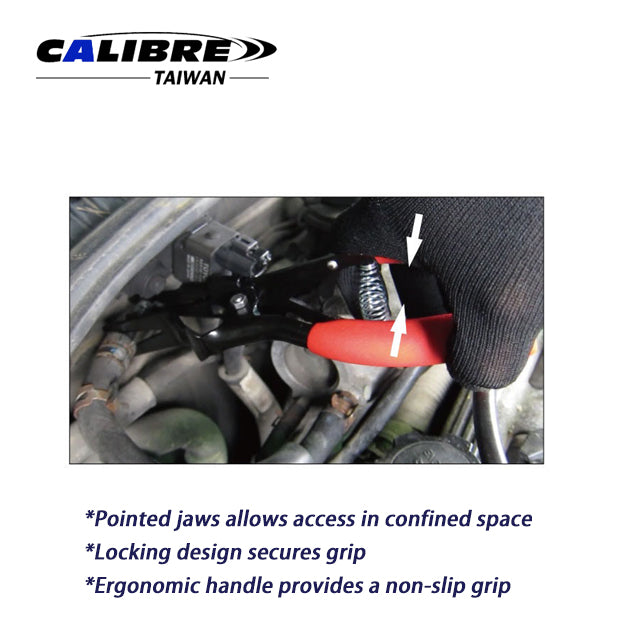

  • Pointed jaw tip allows access to confined spaces.

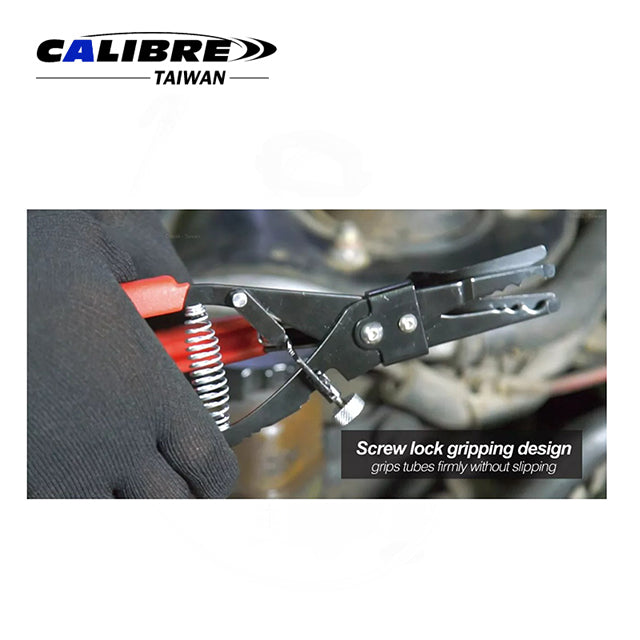

  • Screw locking design enhances secure gripping.

Instructions:

  • Remove hose clamp on the hose to be disconnected. Insert the jaw tip into the place where hose and tube or line is connected.
  • Choose a suitable sized groove on jaw tip and grip the tube or line.

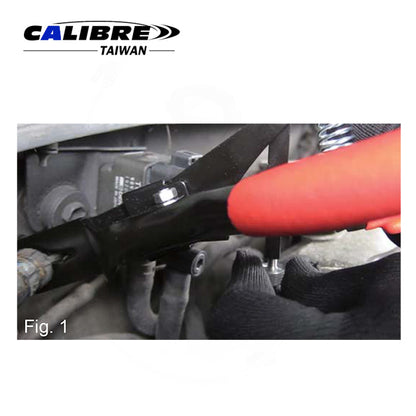

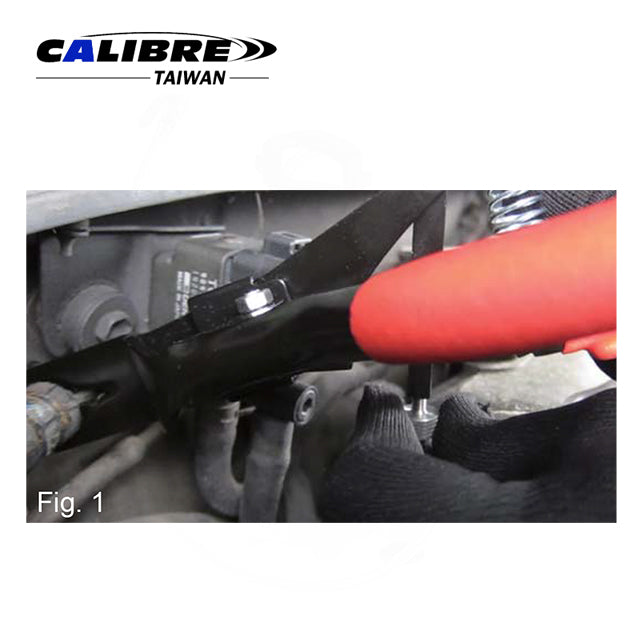

  • Move the jaw lock downward and fasten the nut on the lock to fix the jaws securely (Fig. 1).

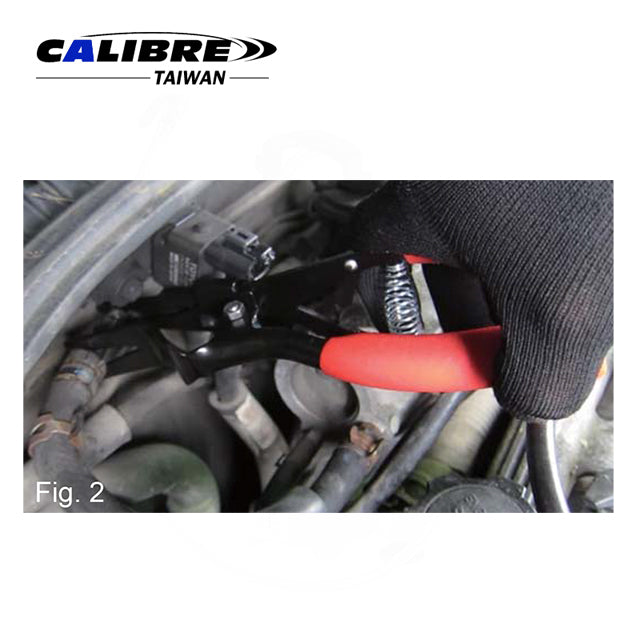

  • Disconnect the hose by pushing the two handles of the pliers towards each other (Fig. 2).
Packaging:
  • 1pc/Sliding Card
  • 10/20pc/6.5/7.5kgs/2.4'
