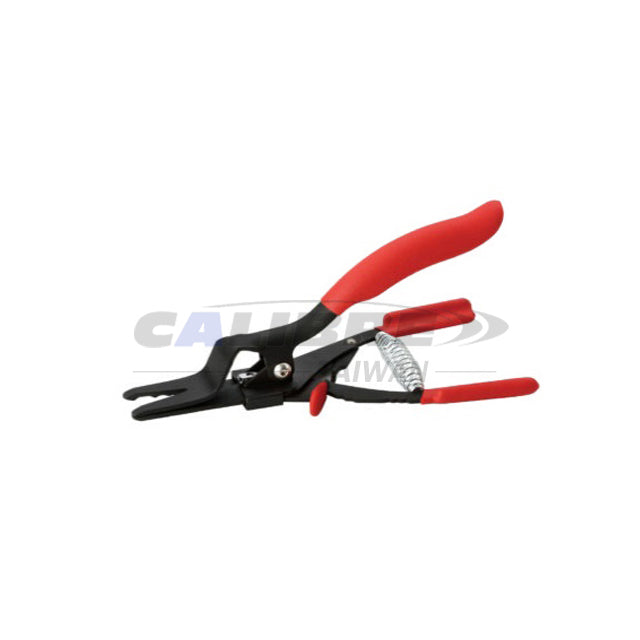

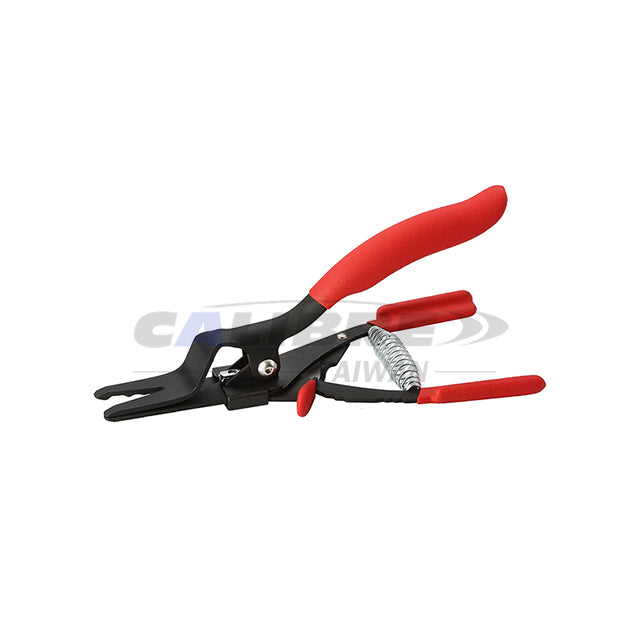

CAK0078A TAIWAN CALIBRE Hose Removal Pliers (Lever Type)

CAK0078A TAIWAN CALIBRE Hose Removal Pliers (Lever Type)

Hose removal pliers

Hose removal pliers efficiently disconnect fuel lines. First, remove the clamp and insert the CR-MO 4130 steel tips. Then, select the correct groove and lock the lever. Consequently, squeezing the handles easily pushes the hose off. Furthermore, the pointed design excels in confined spaces. Furthermore, this tool is consequently perfect for smooth surfaces like intake manifolds or brake boosters. As a result, it ensures a secure grip without damage.

Manual

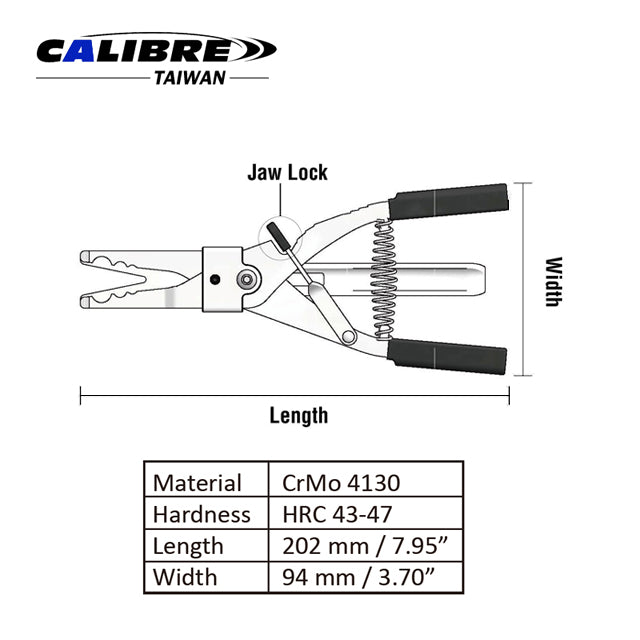

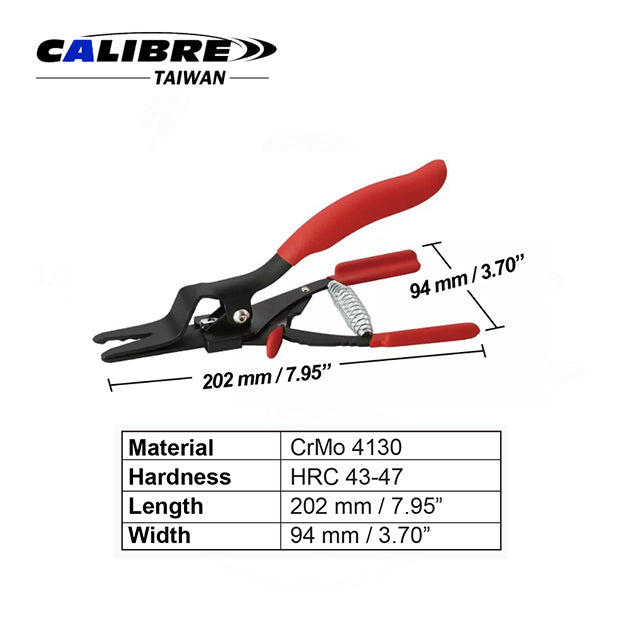

Size:

  • Length: 202mm / 7.95"
  • Width: 94mm / 3.70"

Material:

  • CR-Mo 4130

Feature:

  • Easily disconnects hoses by gripping firmly the tubes/lines.
  • Jaw for 3/16”, 1/4” and 3/8” tubes and lines.
  • Especially suitable for hoses connected to tubes or lines with smooth surface, where exercising pushing force is not possible.
  • Pointed jaw tip allows access to confined spaces.

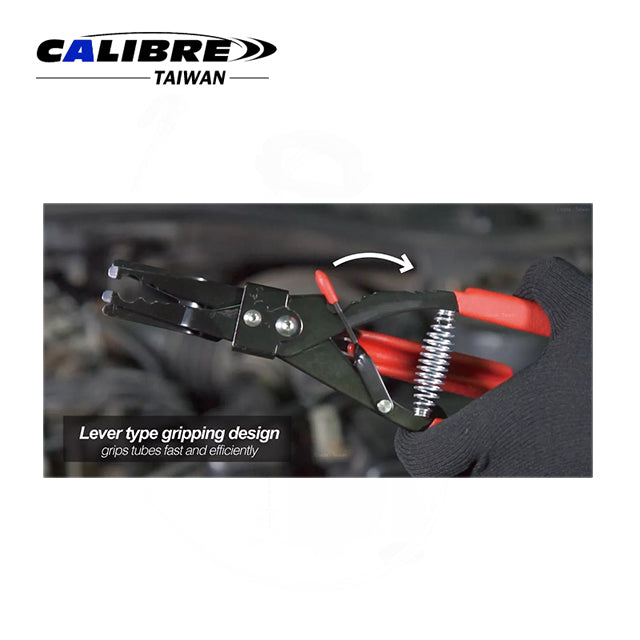

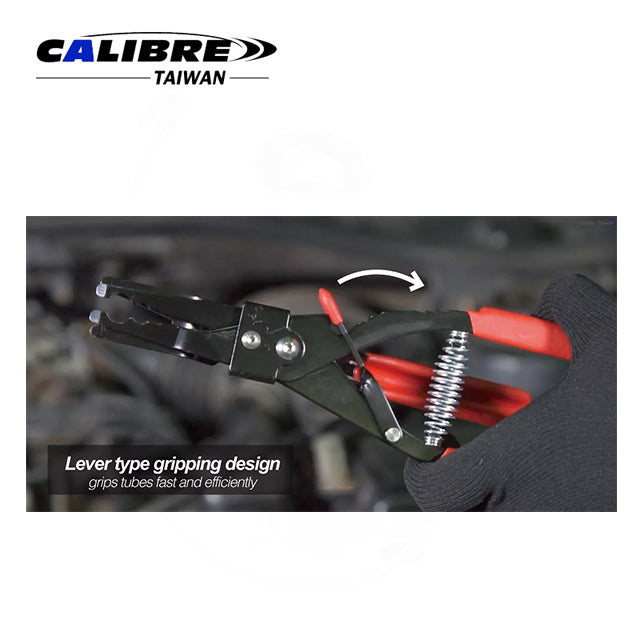

  • Lever locking design allows fast gripping.

Instructions:

  • Initially, remove the hose clamp on the hose to be disconnected. Subsequently, insert the jaw tip into the precise place where the hose and tube or line is connected.
  • Choose a suitable sized groove on jaw tip and grip the tube or line.
  • Move the lever downward and make sure the jaw is securely locked.

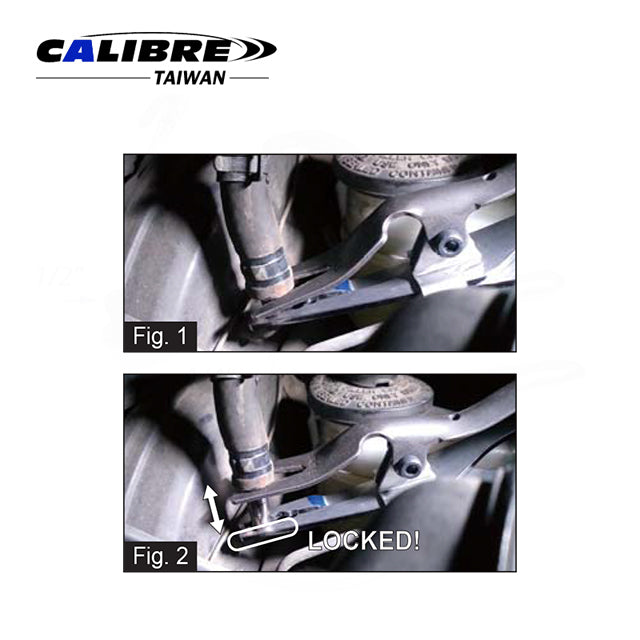

  • Disconnect the hose by pushing the two parts of the pliers towards each other (Fig. 1 and 2). Other instruction images are as follows:

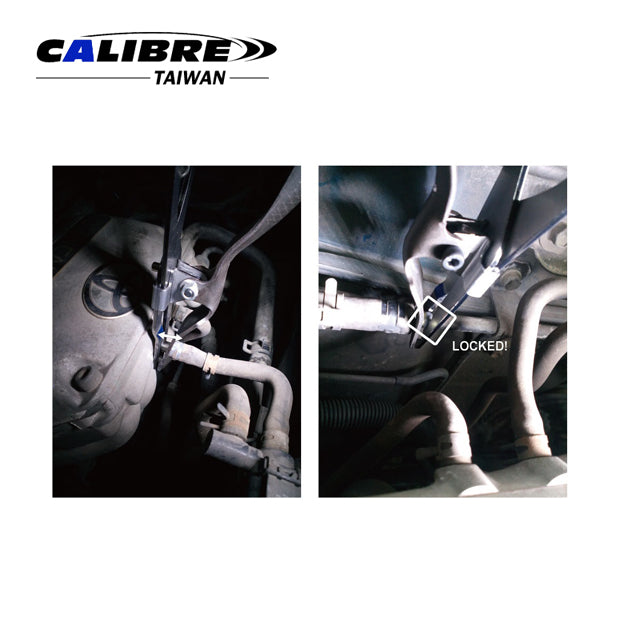

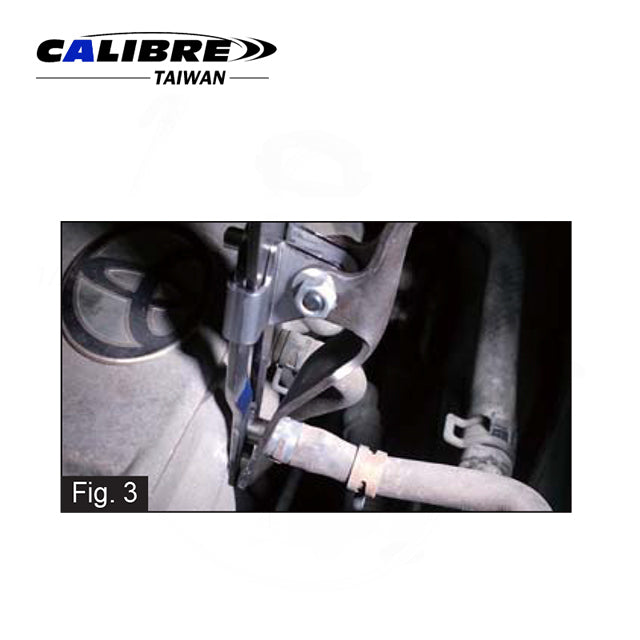

  • Fig. 3 Works on vacuum line on intake manifold

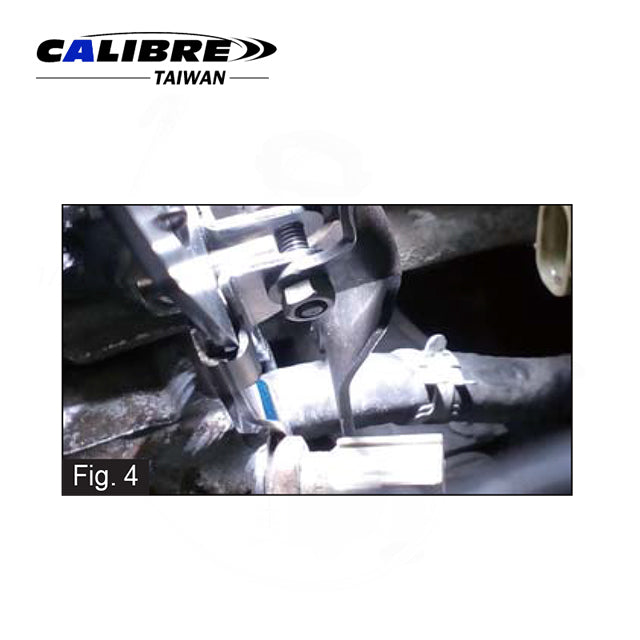

  • Fig. 4 Works on idle valve near the coolant hose to engine

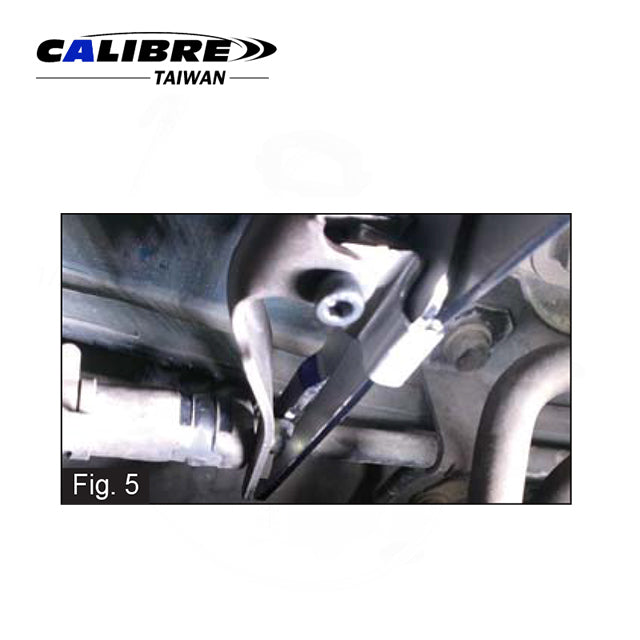

  • Fig. 5 Works on brake booster vacuum line near firewall
Packaging:
  • 1pc/Sliding Card
  • 10/20pc/6.5/7.5kgs/2.4'
