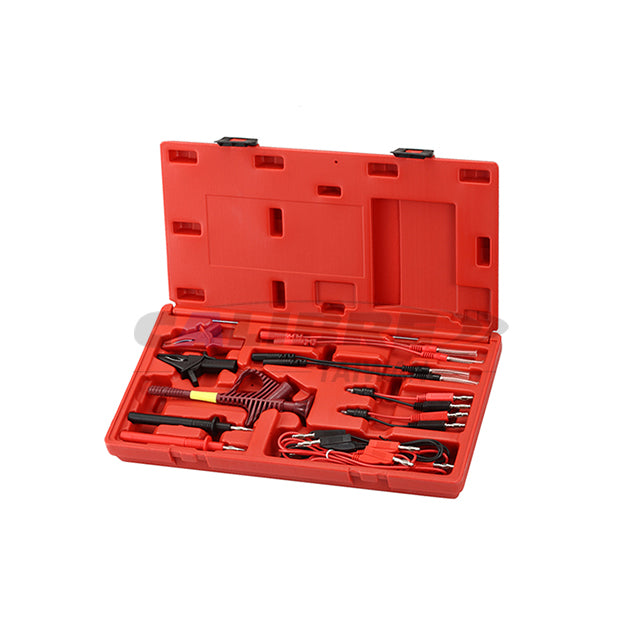

CAK0077-1 TAIWAN CALIBRE Test Probe and Lead Set (15 pcs)

CAK0077-1 TAIWAN CALIBRE Test Probe and Lead Set (15 pcs)

Multimeter test leads

Multimeter test leads: This handy kit makes car testing easy. First, use thin needles to poke wires or reach tight spots. Also, use the light tool to check parts; green shows right flow, while red shows wrong. Next, use clips for easy links. Finally, use the wire clip for hard-to-reach spots. These tools help you work fast and keep wires safe from rust.

Manual

Specifications:

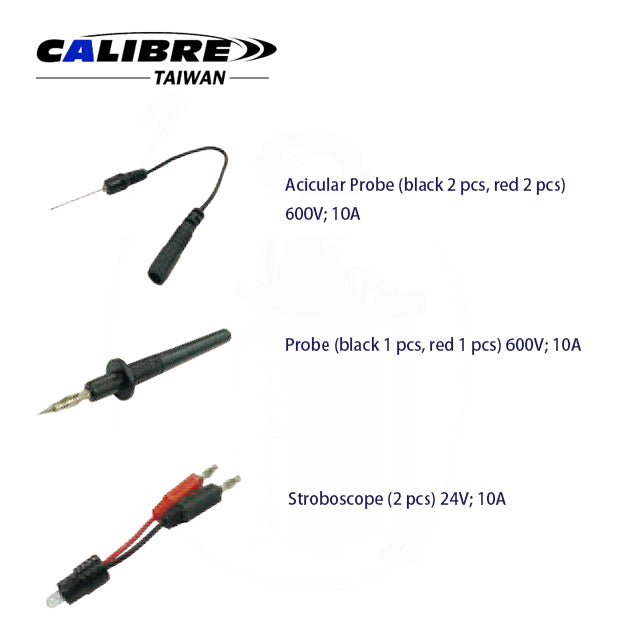

  • Acicular Probe (black 2 pcs, red 2 pcs) 600V; 10A

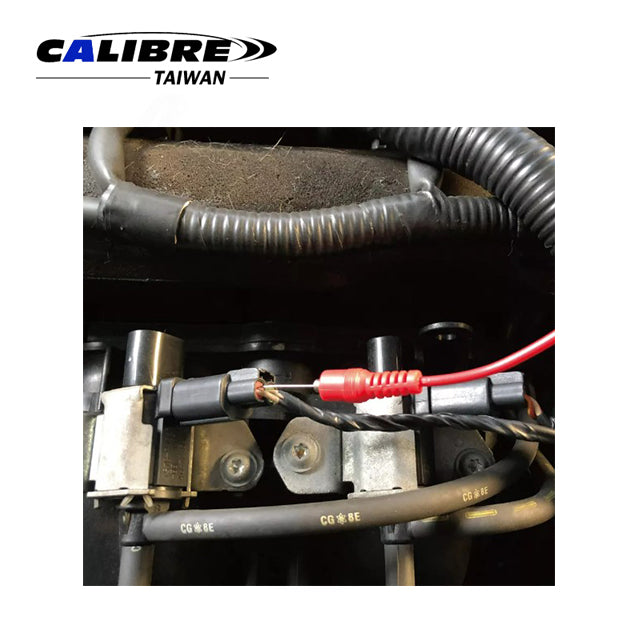

    The needle-shaped probes are very useful when testing objects that are located in a very confined space. They can also pierce through insulation
    without causing major damages to the wires.
  • Probe (black 1 pcs, red 1 pcs) 600V; 10A
    The probes can function as an extension cable for DMM or other wires.
  • Stroboscope (2 pcs) 24V; 10A

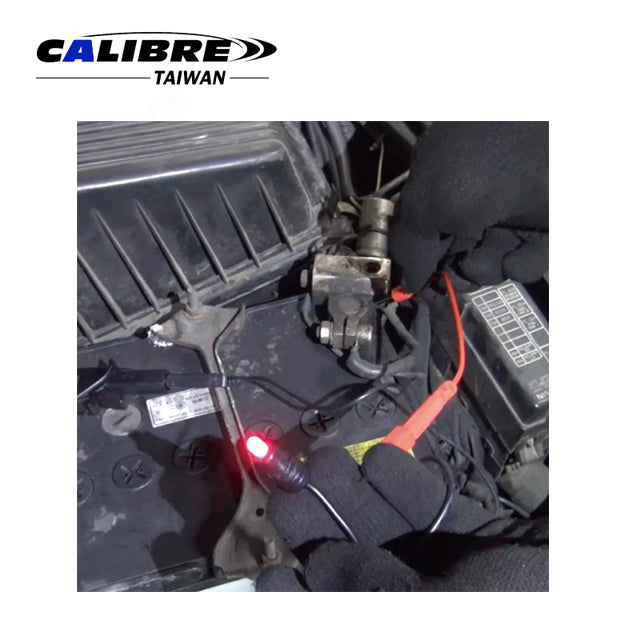

    The LED light flashes when receiving pulsing signals. Useful for testing Hall Effect sensor, injectors and electromagnetic valves. The 2-color light emits green light when connected correctly. Otherwise, it would be red. Useful for detecting positive side of the circuit.

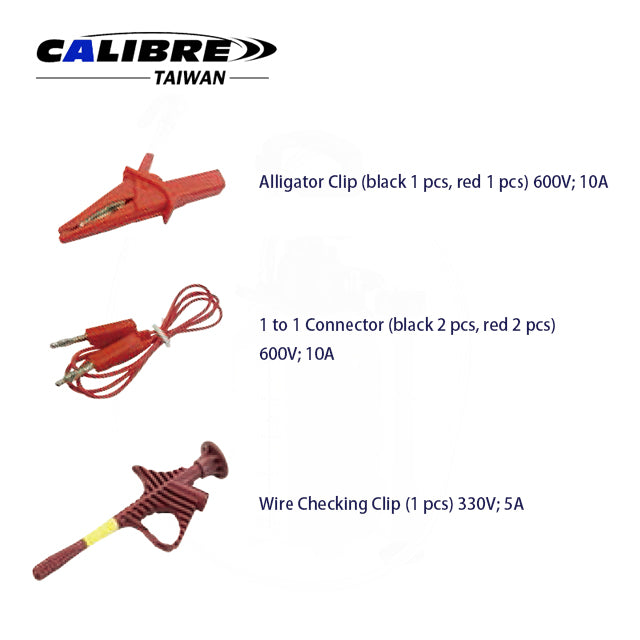

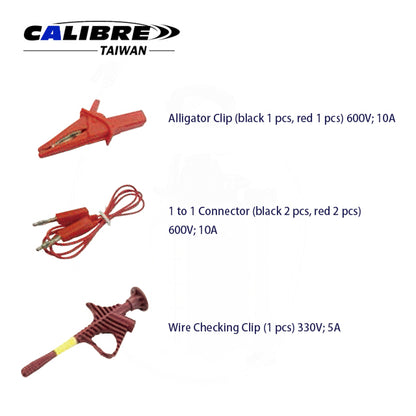

  • Alligator Clip (black 1 pcs, red 1 pcs) 600V; 10A

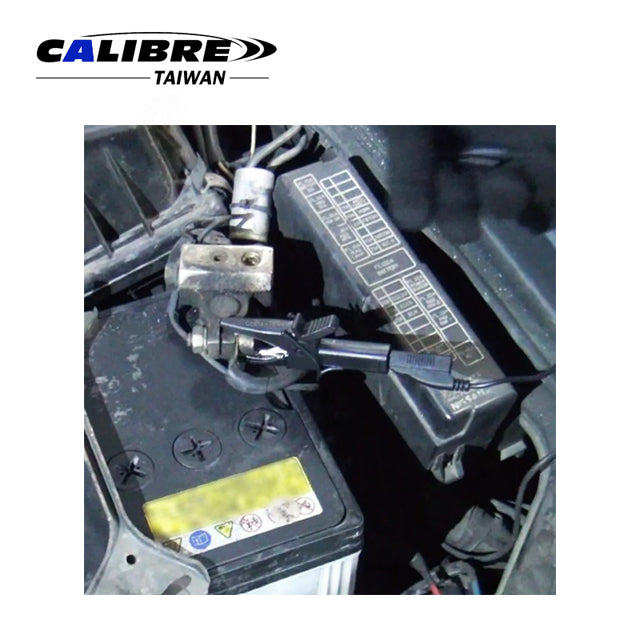

    Tested parts can be connected to other wires, probes or cables with alligator clips.
  • 1 to 1 Connector (black 2 pcs, red 2 pcs) 600V; 10A
    The socket in the connector can function as an extension cable with banana sockets on both ends.
  • Wire Checking Clip (1 pcs) 330V; 5A

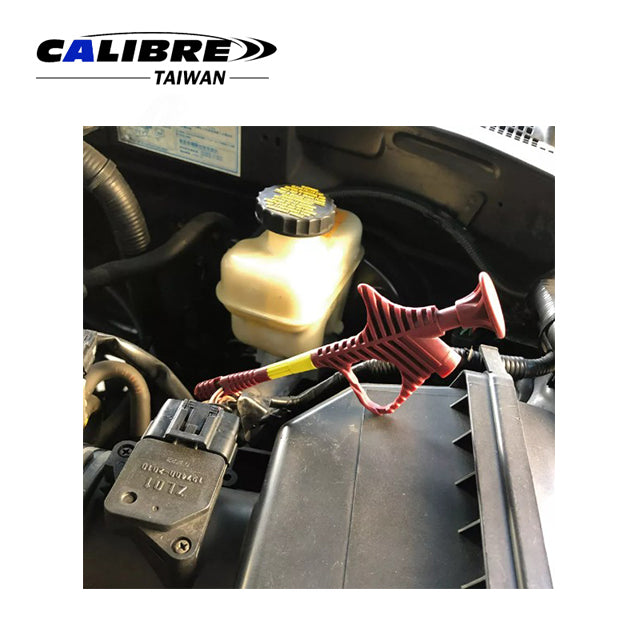

    Wire checking clip is useful for checking wires that are in limited access locations. Applicable wire diameter: Ø1.5 - 4.5 mm.

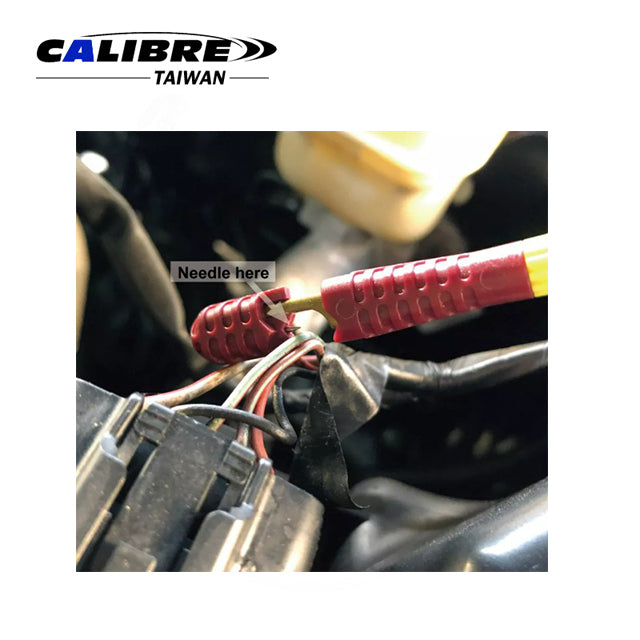

    Pierces through insulators on wires by pushing the bar, minimizing risks of oxidation.

Feature:

  • In addition, these leads apply to all automotive multimeters and even serve as extended lines of probes for an oscilloscope.
  • Easy connections offer fast checking on electric circuits.
  • Probes pierce through insulated materials on wires, minimizing risks of oxidation.
  • Wire checking clip is useful for checking wires that are in limited access locations.
Packaging:
  • 1Set/Blow Mould Case
  • 10Set/7.8/8.8kgs/1.57'
