CAK0051MB CALIBRE Oil Funnel For Mercedes-Benz

CAK0051MB CALIBRE Oil Funnel For Mercedes-Benz

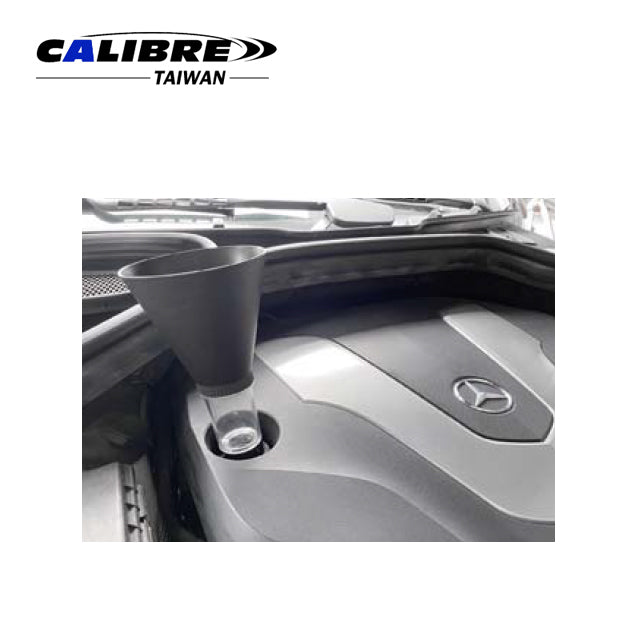

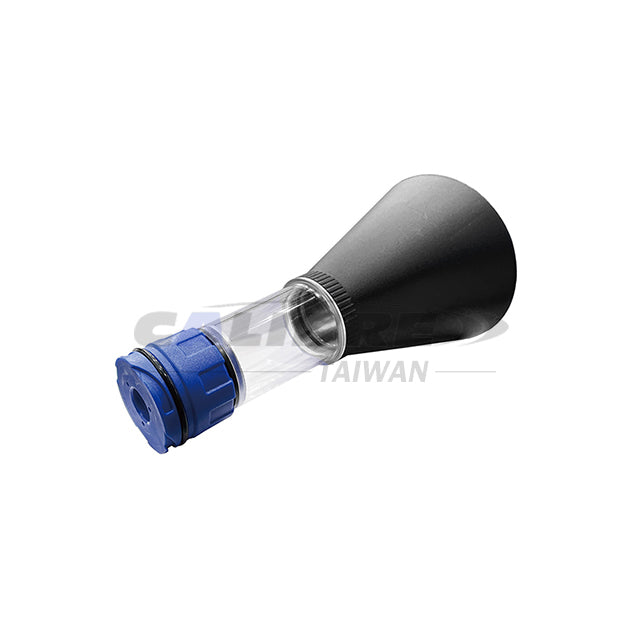

Oil funnel kit connects directly to oil filler necks, preventing spills. Oil funnel kit allows hands-free, one-person operation by holding oil bottles upside down. A large oil passage ensures fast flow, while a transparent chamber shows oil movement.

Since the funnel fits various engine configurations, it stabilizes securely without manual support and thereby solves issues caused by baffles. Moreover, its seamless connection prevents spills on the engine or floor, making oil refilling safer and more efficient.

Manual

Feature:
  • The funnel directly connects to oil filler necks, eliminating unsafe oil spills.
  • Users can place engine oil bottles upside down on the funnel for hands-free, one-person operation.
  • Large oil passage allows oil to flow down more rapidly
  • Lower transparent chamber shows oil flows down to engine

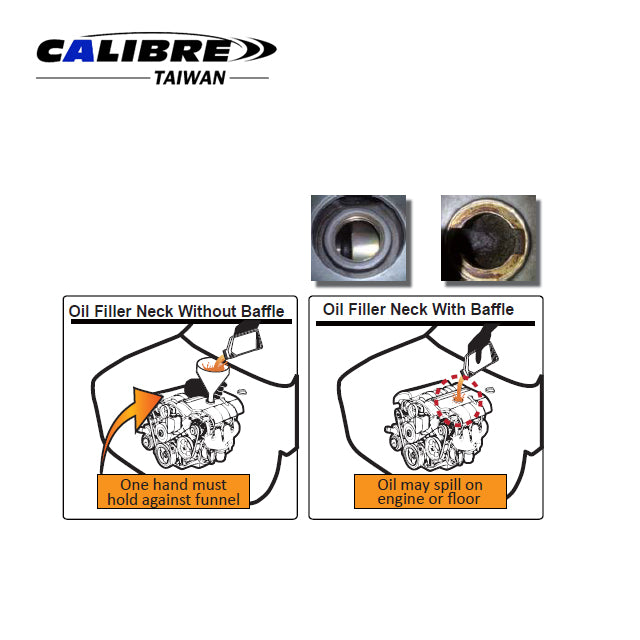

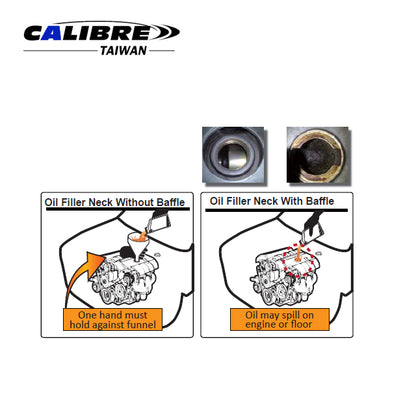

  • Different engines have different configurations below oil filler neck.
  • Some engines might have parts that create a baffle (as the images shown on the right), and this can make conventional funnels hard to stabilize on oil filler neck, or one hand is needed to hold against the funnel when refilling engine oil.
  • However, this funnel is to solve these problems.
  • A seamless connection can be created to prevent unsafe oil spills on engine or floor.
Application:
  • The application below is for reference only.
  • More vehicle applications are possible.
  • Some car models may have multiple suitable adapters due to variations in body style, engine size/capacity, and engine numbers.
Packaging:
  • 1Set/White Box
  • 10Set/7/8kgs/1.4'
