Projen Taiwan

CAK0049 TAIWAN CALIBRE Fuel Pump Lock Ring Removal Tool

CAK0049 TAIWAN CALIBRE Fuel Pump Lock Ring Removal Tool

Lock ring tool

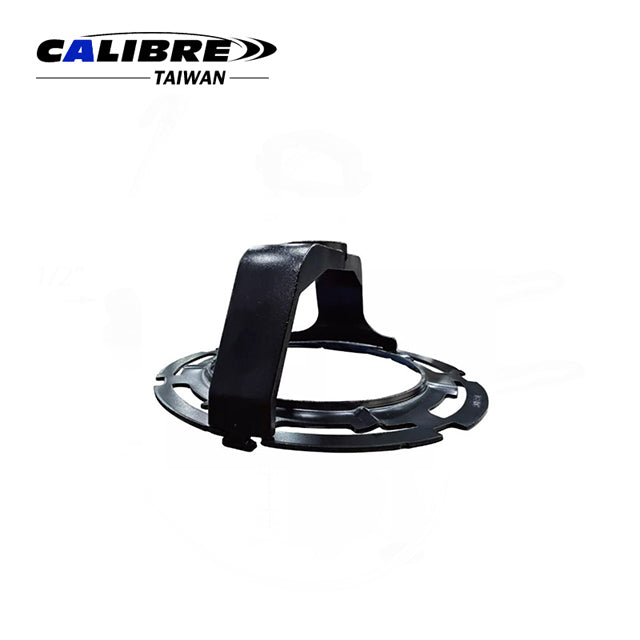

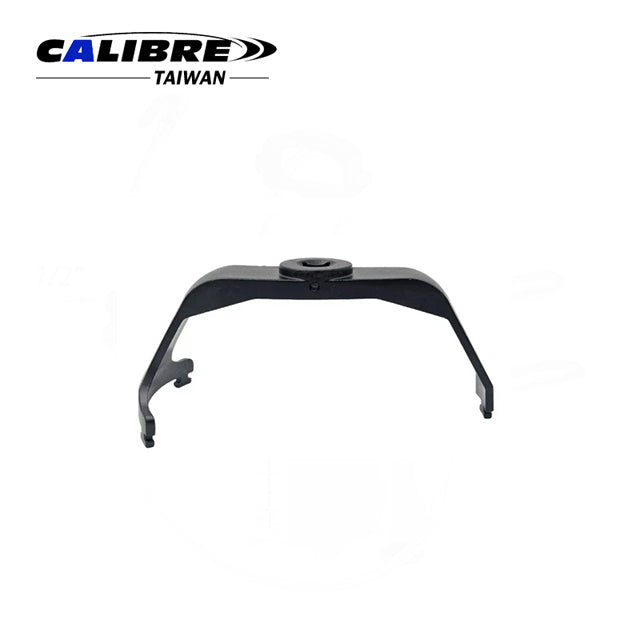

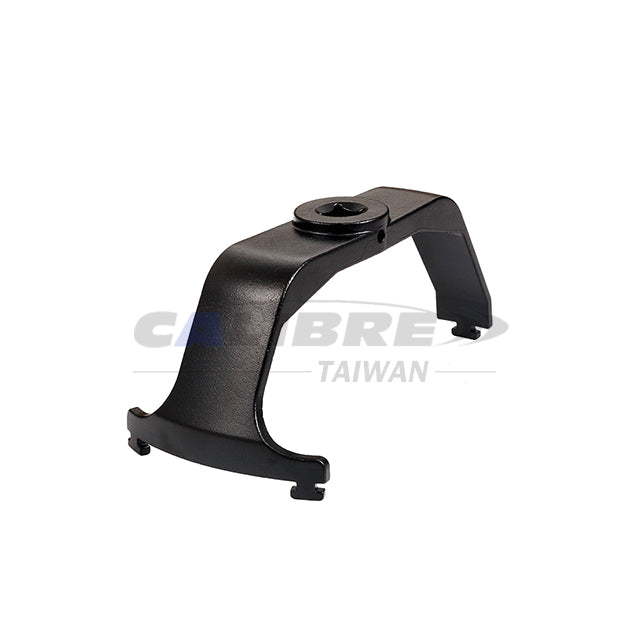

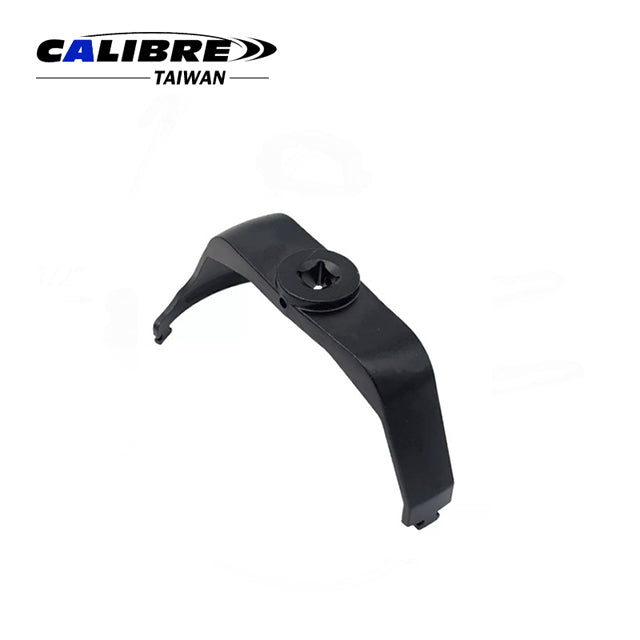

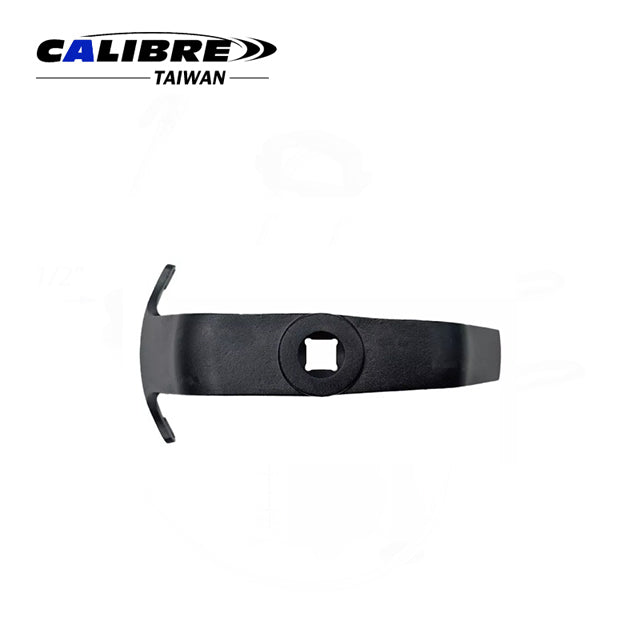

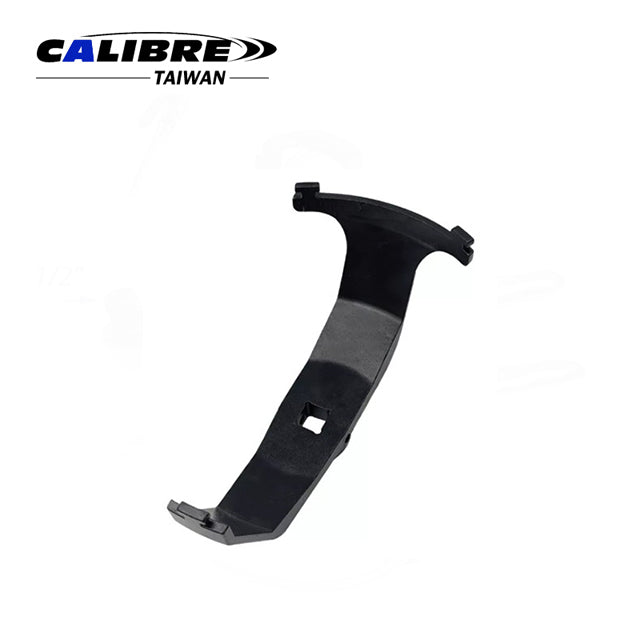

Lock ring tool: This heavy-duty tool removes fuel pump locking rings for BMW, Mercedes-Benz, Hyundai, and Kia. First, clear sensors and fit the tool onto the ring. Ensure tabs mesh perfectly with the grooves. Using a 1/2” square drive wrench, manually rotate the tool counterclockwise to apply torque and safely release stubborn rings from the fuel tank.

Manual

Feature:

  • For removing fuel pump locking rings for various car makes and models.
  • Compatible with BMW, Hyundai, Kia, and Mercedes-Benz.
  • See more details in the Applications section.
  • Heavy duty design with 1/2” square drive to provide sufficient torque when removing stubborn fuel pump lock rings.

Instruction:

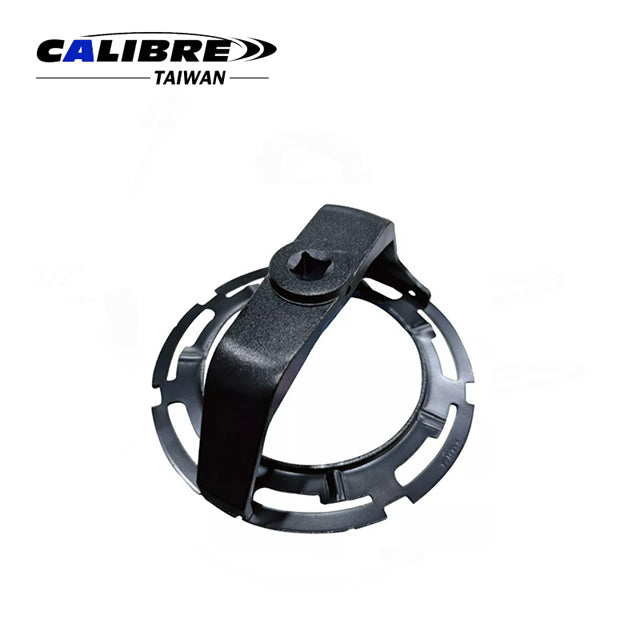

  • Fit the tool on the fuel pump locking ring on the fuel tank. Avoid or disconnect any sensors on top of the fuel pump.
  • Make sure that the tabs on the tool are perfectly meshed with the grooves.
  • Use a 1/2” drive wrench to turn counterclockwise manually in order to remove the locking ring from the fuel tank.
Packaging:
  • 1pc/White Box
  • 10Set/10/11kgs/0.87'
