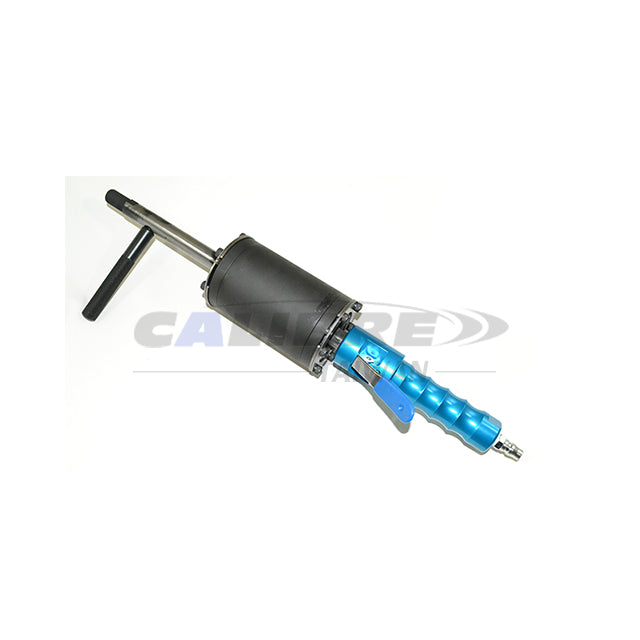

CAJ0242 TAIWAN CALIBRE Double Ways Air Sliding Hammer Extraction Tool

CAJ0242 TAIWAN CALIBRE Double Ways Air Sliding Hammer Extraction Tool

Contents

Sliding hammer kit

Sliding hammer kit utilizes 6-9 Bar (Max. 10 Bar) working air pressure for extraction. Attach 12mm hose to the 1/4" air inlet. Use M18 x 1.5 male drive with M20 x 1.5 or 5/8"-18 adaptors. Adjust two sides speed. 200 kgf power extracts wheel hub bearings and drive shafts. Includes Hub puller.

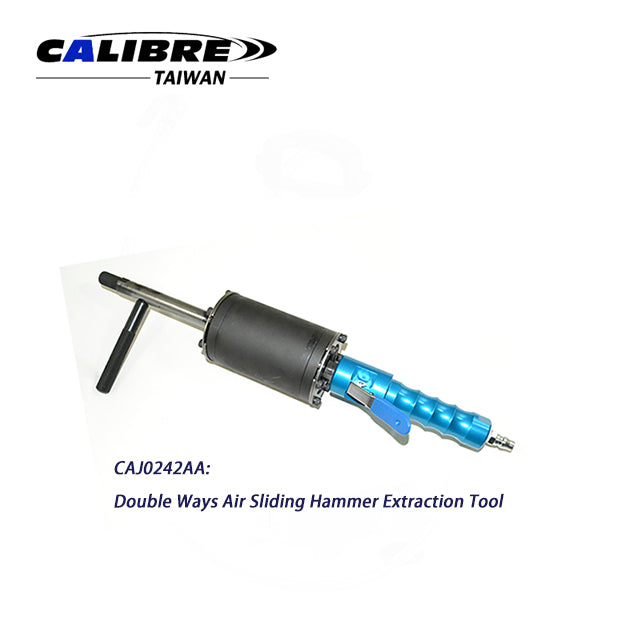

CAJ0242AA:

  • Male drive: M18 x 1.5

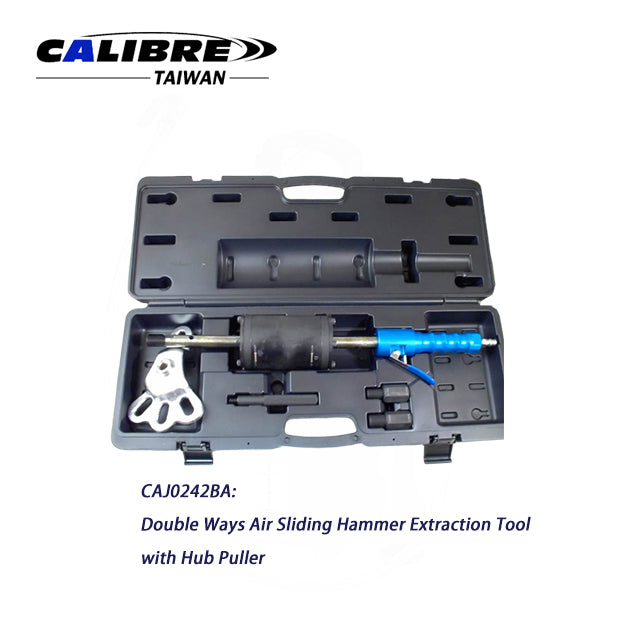

CAJ0242BA:

  • Male drive: M18 x 1.5
  • Adaptor: M20 x 1.5 & 5/8"-18
  • With Hub puller

Size:

  • Working Air presure: 6-9 Bar
  • Max. air pressure: 10 bar (140.5psi or 10kg/cm²)
  • Two sides speed adjustable design
  • Piston Stroke: 70mm
  • Hose Size: 12mm
  • Power: 200 kgf
  • Air inlet size: 1/4"
Material:
  • S45C Steel
Feature:
  • Design for extract under car accessories such as wheel hub bearing, drive shaft...etc.
  • CE Approval
Packaging:
  • 1Set/Blow Mould Case
  • CAJ0242AA: 2Set/14/15kgs/1.5'
  • CAJ0242BA: 2Sets/15/16kgs/2'
