Projen Taiwan

CAJ0209 TAIWAN CALIBRE 12pc Terminal Tool Kit

CAJ0209 TAIWAN CALIBRE 12pc Terminal Tool Kit

Terminal removal tool kit

Regarding the terminal removal tool kit, first select the correct tool from the kit, and subsequently, carefully insert the tip into the terminal block to extract vehicle wires safely. Consequently, the connector pin unlocks easily. Afterward, gently pull the wire out. Subsequently, fold the specialized tip back into the handle. Finally, store the kit securely. Thus, you prevent damage while efficiently completing the task.

Feature:

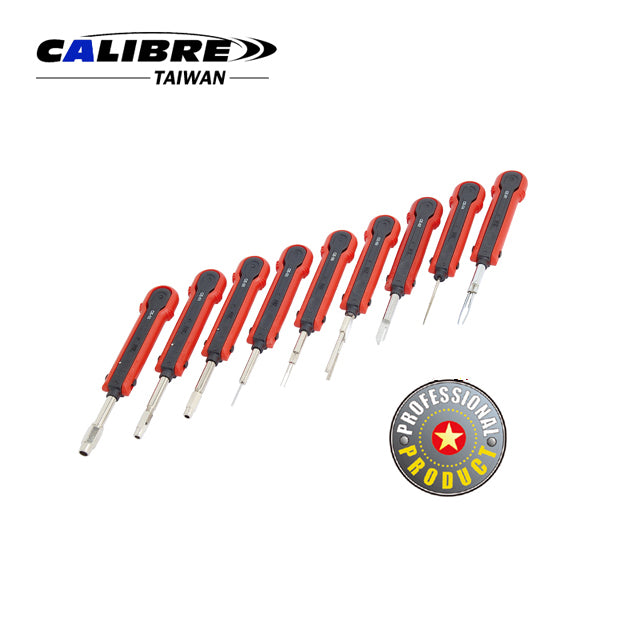

  • The kit features various cable extractor tools; consequently, it covers most makes of vehicles.

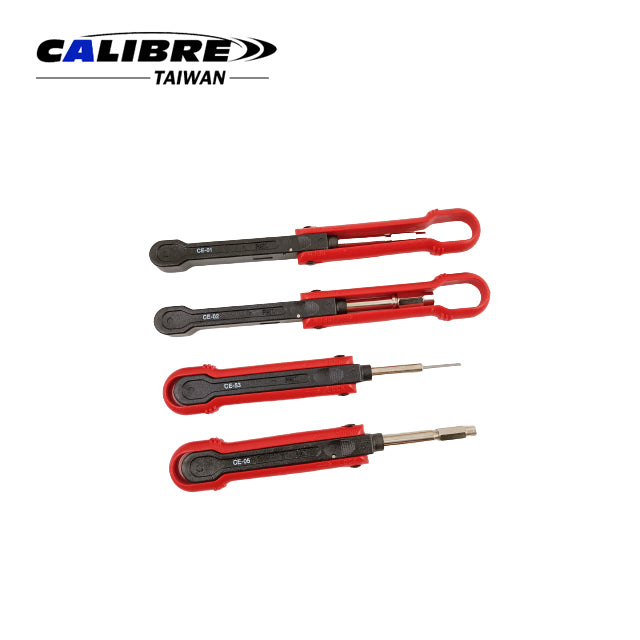

  • Tools fold into the handles to protect points and tips when storing.
  • To safely remove wires from terminal blocks, use the tool to unlock the connector; consequently, you can pull the wire out without damaging any components.

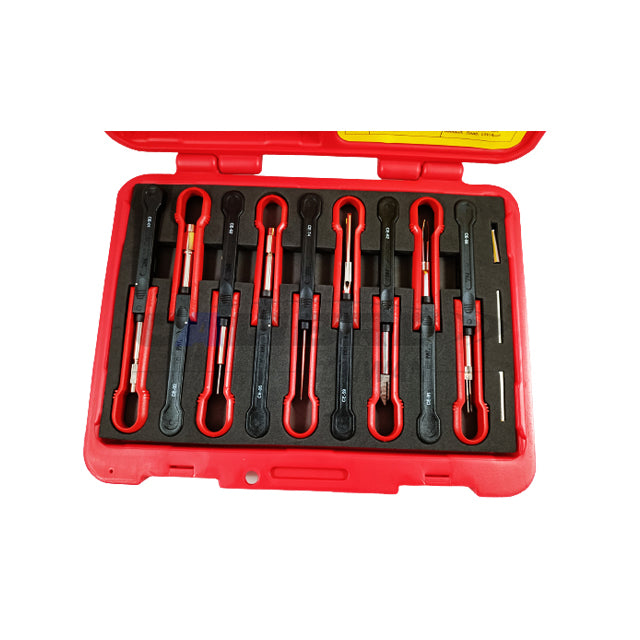

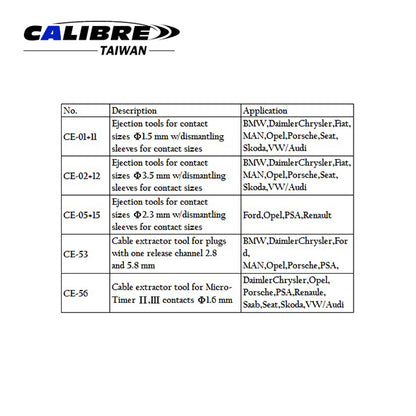

Contents:

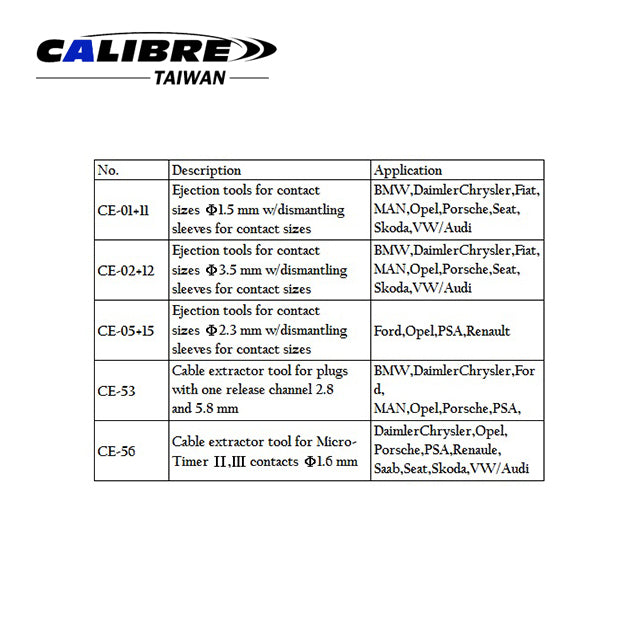

  • No.  Description Application

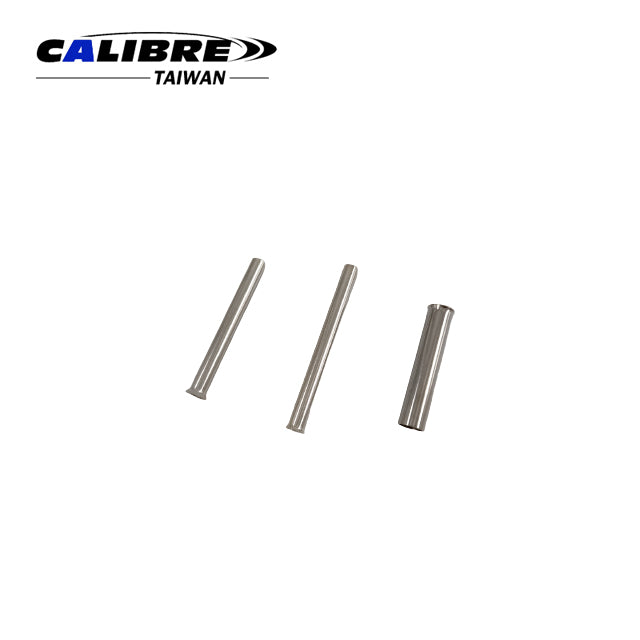

    CE-01+11 Ejection tools for contact
    sizes     Φ    1.5 mm w/dismantling sleeves

    BMW,DaimlerChrysler,Fiat,

    MAN,Opel,Porsche,Seat,

     Skoda,VW/Audi
    CE-02+12 Ejection tools for contact
    sizes     Φ    3.5 mm w/dismantling sleeves

    BMW,DaimlerChrysler,Fiat,

     MAN,Opel,Porsche,Seat,

    Skoda,VW/Audi
    CE-05+15 Ejection tools for contact
    sizes     Φ    2.3 mm w/dismantling sleeves     		 Ford,Opel,PSA,Renault
    CE-53 Cable extractor tool for plugs with one release channel 2.8 and 5.8 mm

    BMW,DaimlerChrysler,Ford,

    MAN,Opel,Porsche,PSA,

    VW/Audi
    CE-56 Cable extractor tool for Micro-Timer Ⅱ,Ⅲ contacts Φ1.6 mm

    DaimlerChrysler,Opel, Porsche,

    PSA,Renaule, Saab,Seat,Skoda,

    VW/Audi

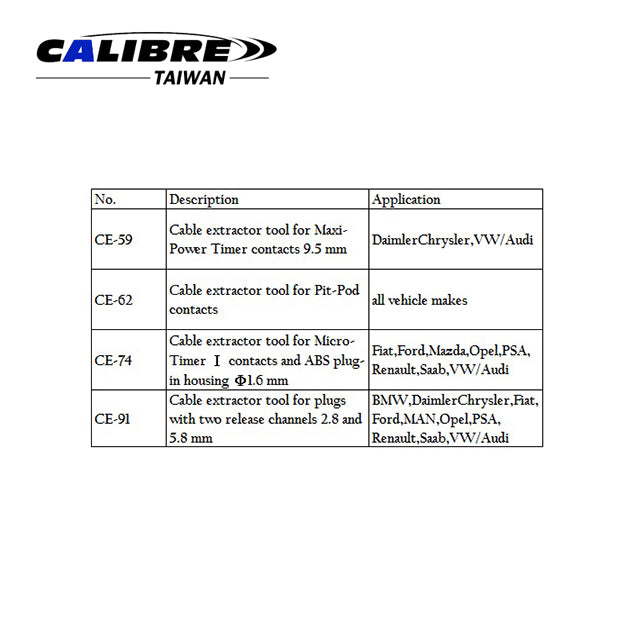

    CE-59 Cable extractor tool for Maxi-Power Timer contacts 9.5 mm DaimlerChrysler,VW/Audi
    CE-62 Cable extractor tool for Pit-Pod contacts all vehicle makes
    CE-74 Cable extractor tool for Micro-Timer Ⅰ contacts and ABS plug-in housing Φ1.6 mm Fiat,Ford,Mazda,Opel,PSA, Renault,Saab,VW/Audi
    CE-91 Cable extractor tool for plugs with two release channels 2.8 and 5.8 mm

    BMW,DaimlerChrysler,Fiat,

    Ford,MAN,Opel,PSA, Renault,

    Saab,VW/Audi

Packaging:

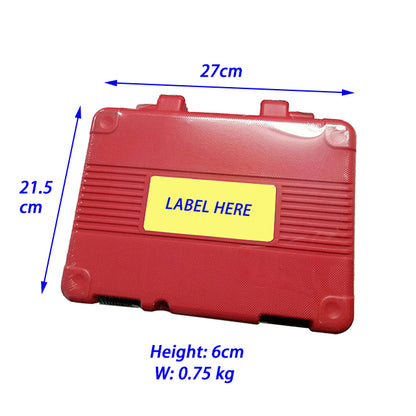

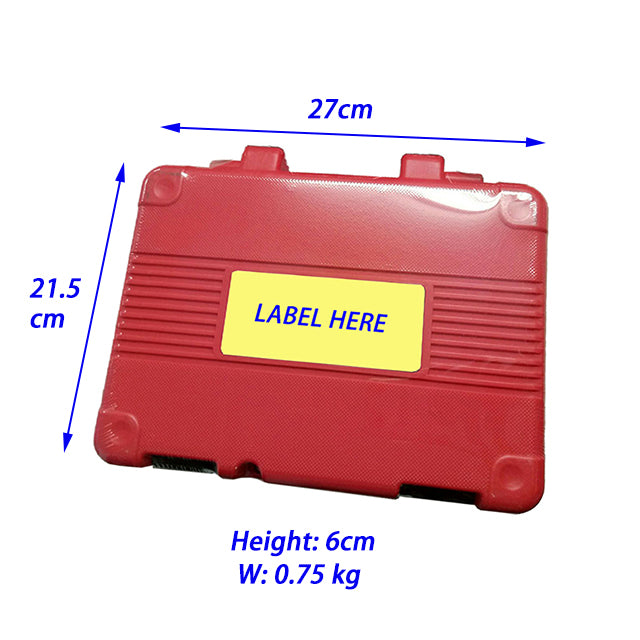

  • 1Set/Red Blow Mould Case
  • 20Set/15.5/16kgs/3'
