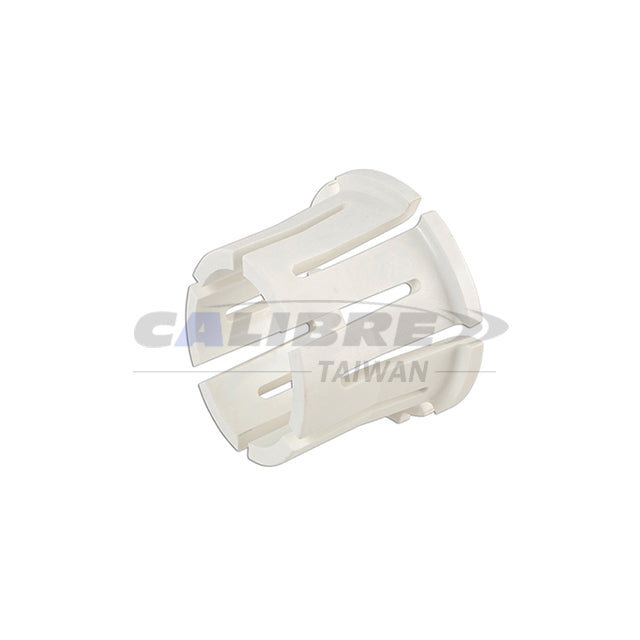

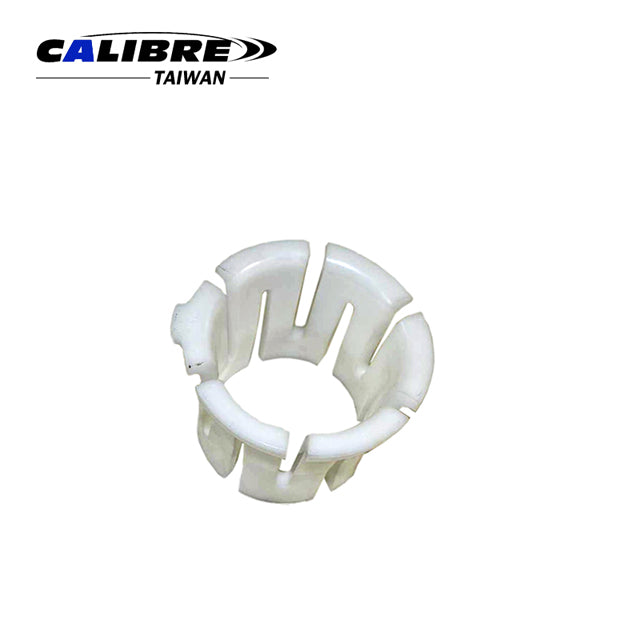

CAJ0086 TAIWAN CALIBRE Piston Insertion Funnel Tool

CAJ0086 TAIWAN CALIBRE Piston Insertion Funnel Tool

Material:
  • PA6 + GF15%
Feature:
  • If a new Piston Insertion Funnel is used, pistons must first be guided twice through the funnel with lubricated piston rings and any shavings resulting from this must be removed. Then the pistons can be installed with piston rings.

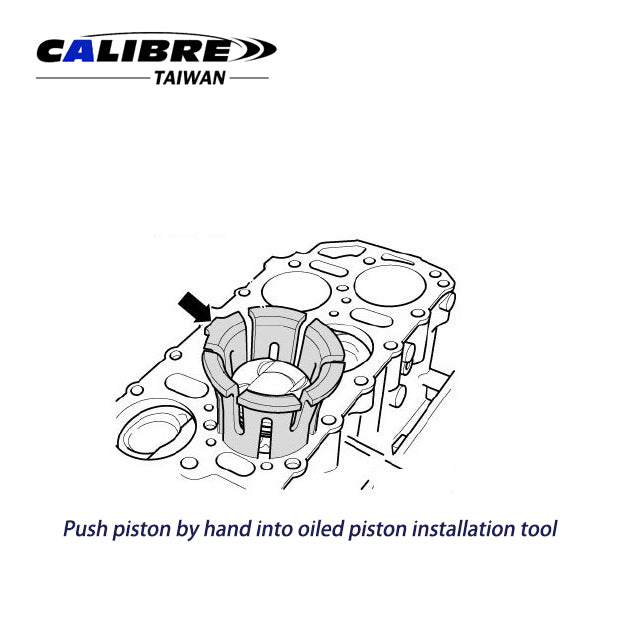

  • Push piston by hand into oiled piston installation tool. < >Flat side of piston crown must face toward funnel pin - arrow.
  • Hold funnel (with piston inserted) on upper edge and press piston in with both thumbs.
  • Push piston in until it protrudes approximately 15 mm from lower edge of funnel.
  • Place pistons in appropriate cylinder bore. < >Funnel pin - arrow - must point toward center of cylinder block.
  • Press funnel tightly against cylinder block and push piston in.
Packaging:
  • 1pc/Brown Box
    50pc/15/16kgs/2.5'
