• Three-Jaw Gear Puller
  • 3 Jaw Gear Puller
1 2

Projen Taiwan

CAG0036 TAIWAN CALIBRE Three-Jaw Gear Puller

CAG0036 TAIWAN CALIBRE Three-Jaw Gear Puller

Size

3 jaw gear puller

The 3 jaw gear puller (CAG0036) efficiently removes gears and bearings. Available in sizes from 3" to 12", it features forged, hardened CR-V steel jaws with a durable chrome plating. To operate, hook the adjustable jaws securely behind the component, align the center bolt with the shaft, and rotate the screw to apply even pressure. This robust design ensures high-strength performance for diverse industrial and automotive maintenance tasks.

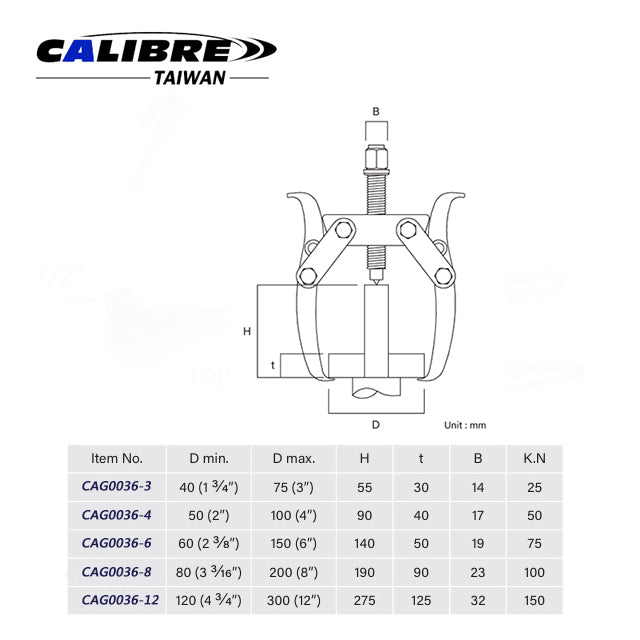

Size:

  • CAG0036-3: 3” Reach (1-3/4"~3" / 40-75mm)
  • CAG0036-4: 4” Reach (2"~4" / 50-100mm)
  • CAG0036-6: 6” Reach (2-3/8"~6" / 60-150mm)
  • CAG0036-8: 8” Reach (3-3/16"~8" / 80-200mm)
  • CAG0036-12: 12" Reach (4-3/4"~12" / 120-300mm)

Material:

  • CR-V  Forged Hardened Jaw
  • Chrome Plated

Feature:

  • Ideal for removing gears, sprockets, bearings, pulleys & much more.
  • Professional quality forged chrome vanadium steel.
  • Precision heat treated for maximum durability and strength.
  • Hardened steel center bolt with Hex head for sure-grip wrench fit.
  • Jaws can be reversed to grip firmly inside or outside gears or parts.
Packaging:
  • 1pc/Box
  • CAG0036-3: 30pc/16.5/17.5kgs/0.9'
  • CAG0036-4: 16pc/17/18kgs/0.8'
  • CAG0036-6: 8pc/18/19kgs/1'
  • CAG0036-8: 4pc/18/19kgs/1.3'
  • CAG0036-12: 1pc/12/13kgs/0.9'
