CAE0135 TAIWAN CALIBRE Slotted Special Socket Set

CAE0135 TAIWAN CALIBRE Slotted Special Socket Set

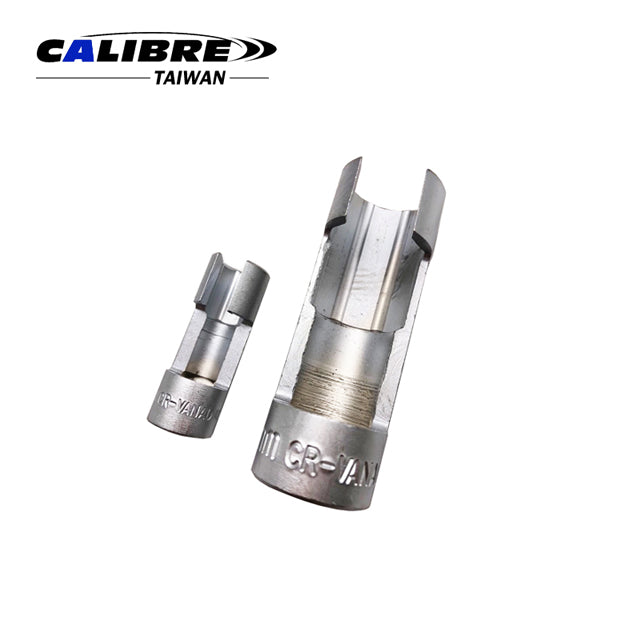

Slotted socket

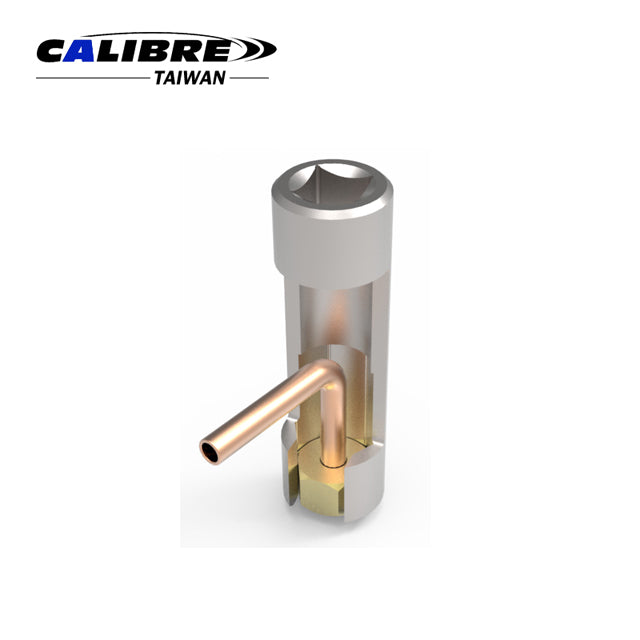

Slotted socket is designed for assembling or removing wired sensors, thermo switches, and bent pipe fittings. Additionally, it helps access tight areas without removing surrounding parts. Moreover, its side slot allows access around wires or pipes. Therefore, it is ideal for hard-to-reach ABS, coolant, and diesel injection components.

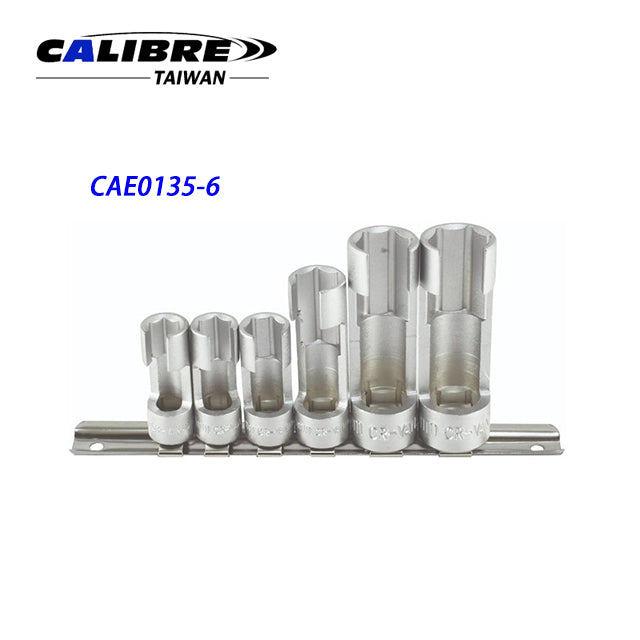

CAE0135-6 Size:

  • 3/8" Dr (10, 11, 12mm) x 6PT x 46mmL
  • 3/8" Dr (14mm) x 6PT x 64mmL
  • 1/2" Dr (17,19mm) x 6PT x 78mmL
  • The slot width is: 7.4mm (10), 8.8mm (11), 9.1mm (12), 10.8mm (14), 13.3mm (17) and 14.4mm (19)

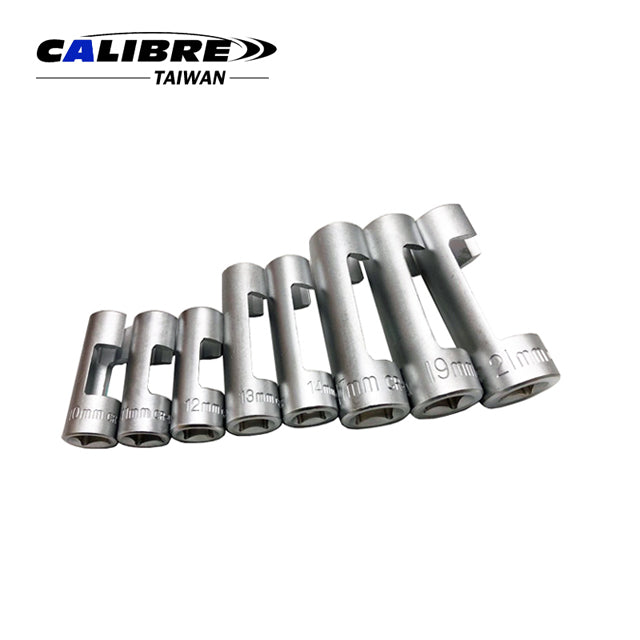

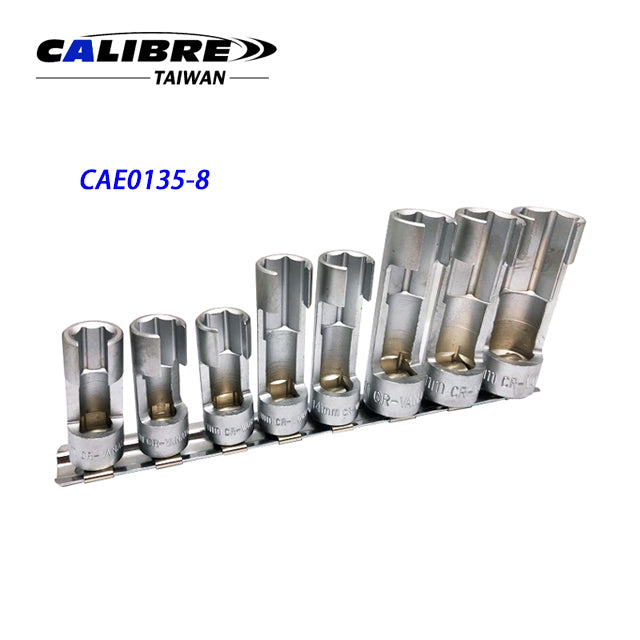

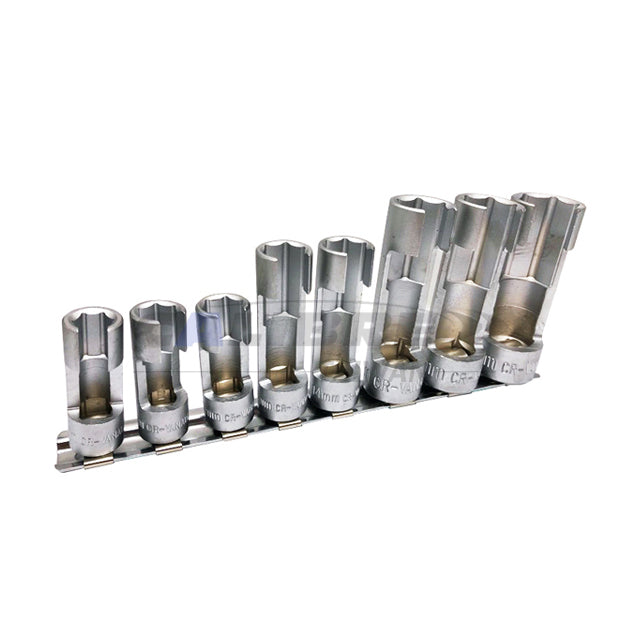

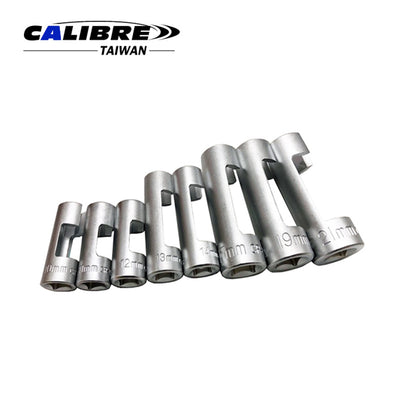

CAE0135-8 Size:

  • 3/8" Dr (10, 11, 12mm) x 6PT x 46mm
  • 3/8" Dr (13, 14mm) x 6PT x 64mmL
  • 1/2" Dr (17, 19, 21mm) x 6PT x 78mmL
  • The slot width is: 7.4mm (10), 8.8mm (11), 9.1mm (12), 10.5mm (13), 10.8mm (14), 13.3mm (17), 14.4mm (19), and 15.5mm (21).

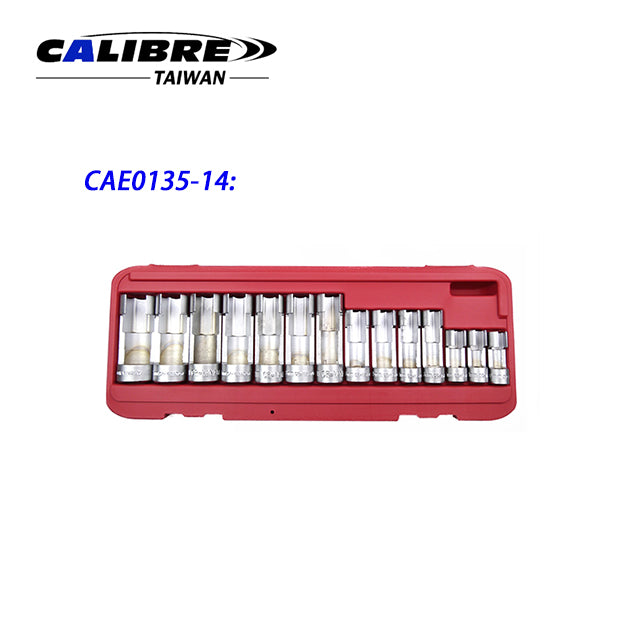

CAE0135-14 Size:

  • 3/8" Dr (10, 11, 12mm) x 6PT x 46mmL
  • 3/8" Dr (13,14,15,16mm) x 6PT x 64mmL
  • 1/2" Dr (17,18,19,20,21,22,24mm) x 6PT x 78mmL
  • The slot width is: 7.4mm (10), 8.8mm (11), 9.1mm (12), 10.5mm (13), 11mm (14), 11mm (15), 12.3mm (16) 13.8mm (17), 14mm (18), 14.4mm (19), 14.4 mm (20), 15.7mm (21), 15.7mm (22) and 16.9mm (24)

Feature:

  • For the assembly of top and side-wired temperature sensors, thermo switches, and other components on the socket rail, slotted sockets are essential. Moreover, they allow efficient access to wired or obstructed parts.
  • Also suitable for nuts and bolts of bent pipes
  • For difficult access to pipe connects and wired sensor units, slotted sockets are ideal. Additionally, they provide better reach in tight or obstructed areas.
  • Slotted sockets are very useful for loosening ABS pipes, master cylinder pipes, diesel injection, and coolant sensors. Furthermore, they improve efficiency when working in confined or obstructed spaces.
Packaging:
  • CAE0135-6:1Set/Sliding Card,
    12/48Set/18.5/19.5kgs/1.9'

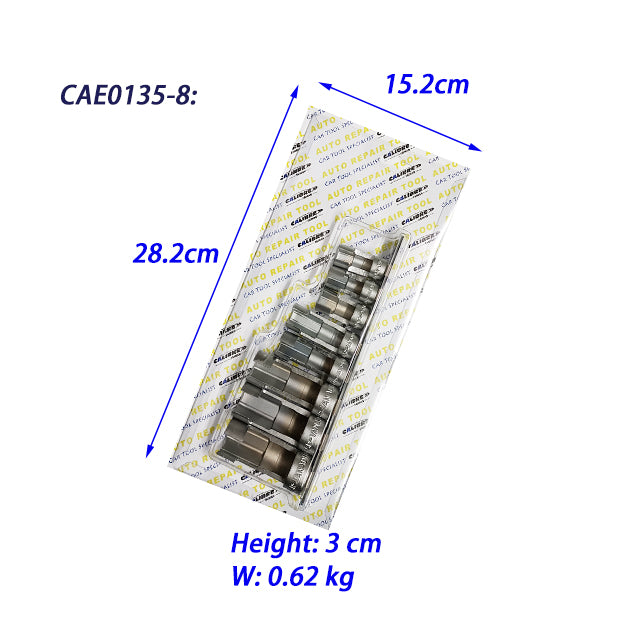

  • CAE0135-8:1Set/Sliding Card
    6/24Set/14.9/15.9kgs/1.4'
  • CAE0135-14:1Set/Blow Mould Case
