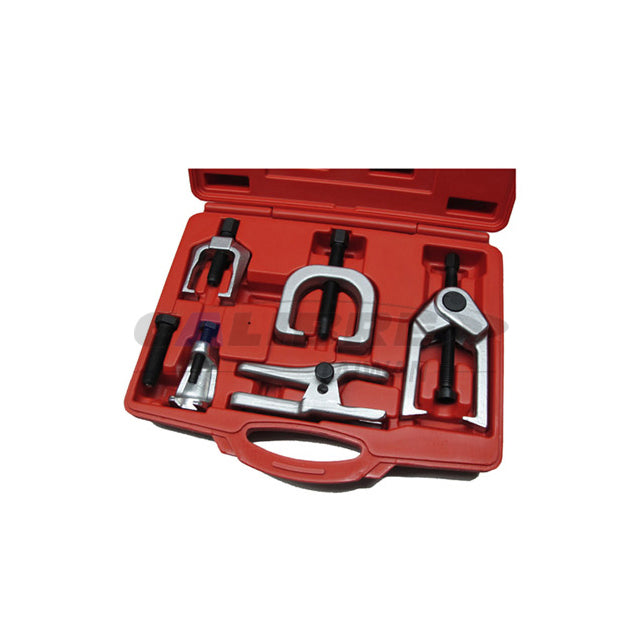

CAE0001 TAIWAN CALIBRE 5pc Front End Service Tool Kit Ball Joint Tie Rod Set

CAE0001 TAIWAN CALIBRE 5pc Front End Service Tool Kit Ball Joint Tie Rod Set

Ball joint tie rods

Ball joint tie rods removal is made easier with this 5-piece front-end service tool kit. Designed for removing pitman arms, tie rods, and ball joints, the set provides versatile solutions for steering and suspension maintenance. Select the appropriate puller for the component, then apply pressure to separate it. Additionally, the press-type ball joint separator helps prevent damage to protective boots and surrounding parts during removal.

Contents:

  • 1pc Ball Joint Separator (22mm)
  • 1pc Pitman Arm Puller (1-5/16”, 33mm)
  • 1pc Pitman Arm Puller (1-1/16”, 27mm)
  • 1pc Outer Tie Rod Remover
  • 1pc Universal Tie Rod End Tool (19mm)

Ball Joint Separator Description:

  • Additionally, the specially designed 2-stage operation suits ball joints in the steering and suspension systems of most cars and light trucks.
  • Furthermore, the tempered drop-forged steel body and offset lever provide excellent performance and long-lasting durability.
  • Moreover, the offset lever permits maximum jaw openings of 30mm (1-3/16") and 56mm (2-3/16"), with a jaw opening of 22mm.

Pitman Arm Puller (1-5/16”, 33mm) Description:

  • Additionally, the Pitman arm puller is designed to handle the toughest Pitman arm pulling jobs on passenger cars and light trucks.
  • Furthermore, this puller features specially forged jaws shaped to fit the job, ensuring a secure grip while leaving your hands free during operation.
  • To begin, simply remove the retaining nut, place the puller jaws behind the Pitman arm, and then tighten the forcing screw.
  • Finally, mechanical power does the rest!

Pitman Arm Puller (1-1/16”, 27mm) Description:

  • For the safe easy removal of pitman arm assembly from compact automobiles.
  • Forged, heat-treated yoke with extra heavy center screw.
  • 1- 1/16" opening and 1- 3/4" pull.

Outer Tie Rod Remover Description:

  • Works on imports and domestics; front or rear wheel drives; and castor stamped steel steering knuckles.
  • You can apply up to 5 tons of force to this puller to break the tie rod free from the steering knuckle without damaging either.
  • The special design of this puller also helps prevent the jaws from slopping on the steering knuckle when force is applied.

Universal Tie Rod End Tool (19mm) Description:

  • Heat treated drop forged steel body & thrust bolt.
  • Fits most cars, simply insert tool between spindle arm and tie rod, turn thrust bolt with
  • 3/4"(19mm) socket or spanner to spread tie rod easily.
  • Fork 18mm(11/16").

Feature:

  • This versatile set allows for easy removal of the most popular types of pitman arm, tie rods and ball joints.
  • Press type ball joint separator allows for ball joint removal without damage to boots and other parts that fork type removers may cause.
Packaging:
  • 1Set/Blow Mould Case
  • 3Set/16/17kgs/1.2’
