CAD0024 TAIWAN CALIBRE Heavy-Duty Ratchet Crimping Tool Set

CAD0024 TAIWAN CALIBRE Heavy-Duty Ratchet Crimping Tool Set

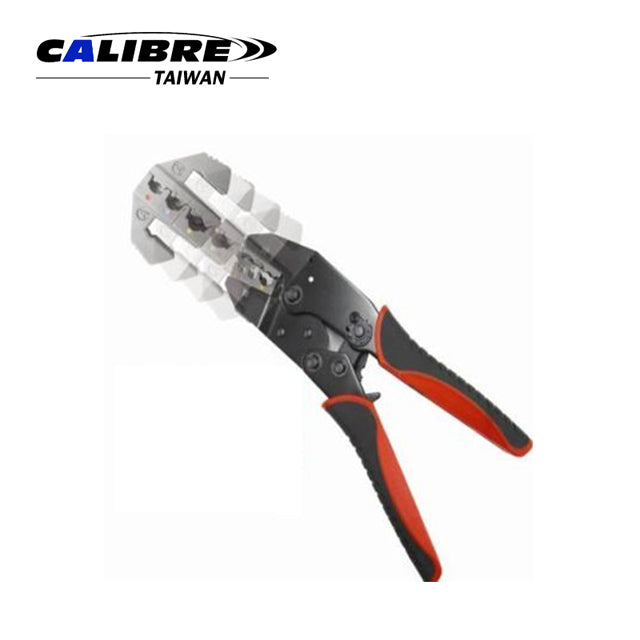

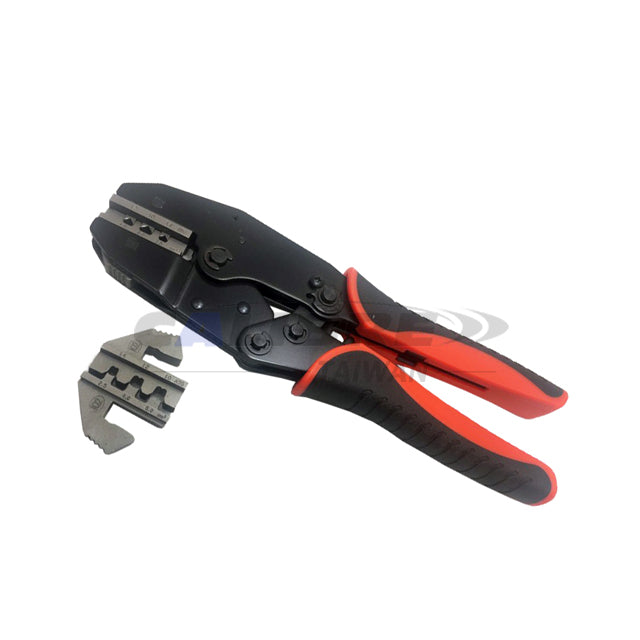

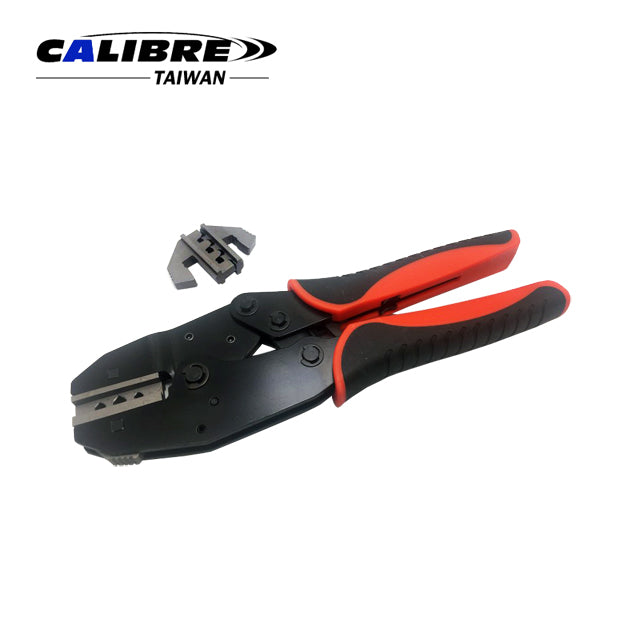

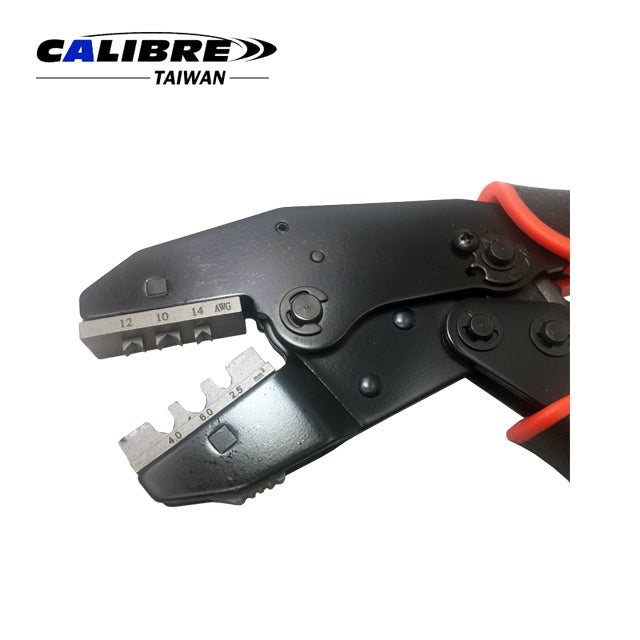

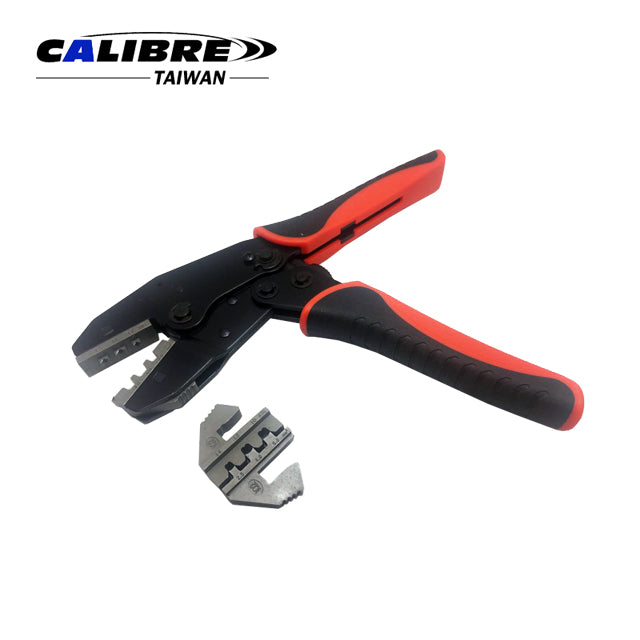

Ratchet crimper tool

Ratchet crimper tool provides secure crimping for MC3 and MC4 solar terminals. First, select the correct solar die for the wire size. Next, install the die by hand using the quick-change mechanism. Then, position the terminal and wire securely. Finally, squeeze the ratchet handles until the crimping cycle is complete. The tool supports AWG 14, 12, 10 and DIN 2.5, 4, 6 mm² wires.

Contents:

  • 1 quick change ratchet crimper

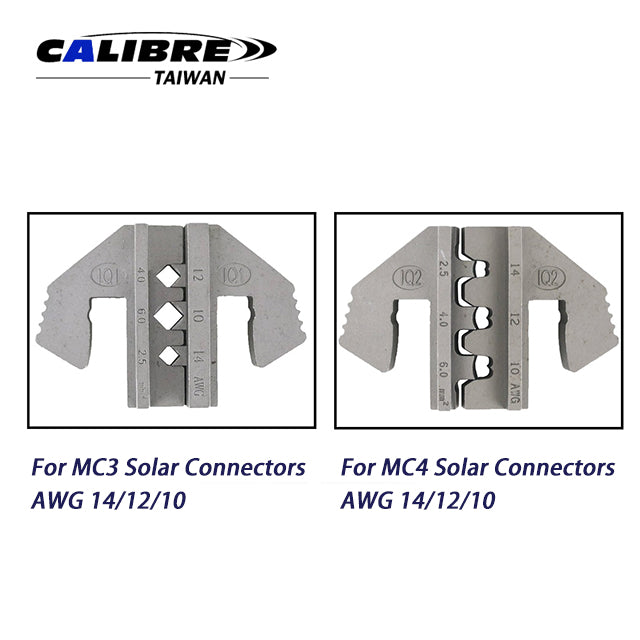

  • 1 MC3 solar die
  • 1 MC4 solar die

Feature:

  • Solar terminal crimper for MC3/MC4

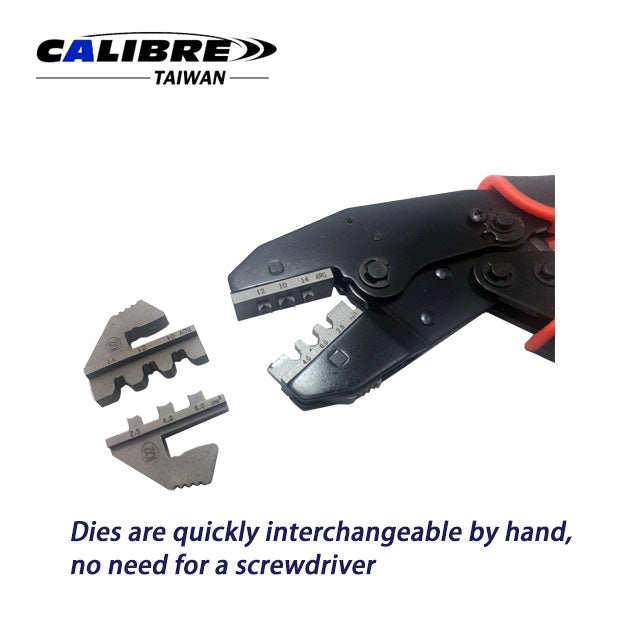

  • Dies are quickly interchangeable by hand, no need for a screwdriver.

Suitable for:

  • AWG 14 / 12 / 10
  • DIN 2.5/ 4 / 6 mm2

Material:

  • Die:
    AISI-4140
    Procedure: metal injection molding (min)
    Treatment: finished with heat treatment
    Surface treatment: zinc phosphate
  • Quick Change Ratchet Crimper:
    Body: carbon steel
    Handle: PP+TPR (PAHS approved)
Packaging:
  • 1Set/Sliding Card
  • 12/24Set/14.9/15.9kgs/1.3'
