Projen Taiwan - Auto Tools, Hand Tools manufacturer

CAD0019 - CALIBRE 6pc Quick Change Ratchet Crimper Kit

CAD0019 - CALIBRE 6pc Quick Change Ratchet Crimper Kit

Contents:

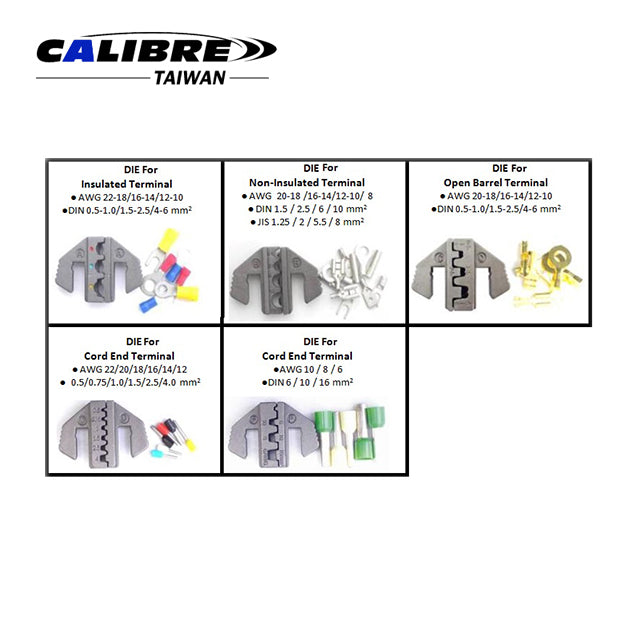

  • 1pc - Die for Insulated Terminal [AWG 22-18 / 16-14 / 12-10] [DIN 0.5-1.0 / 1.5-2.5 / 4-6 mm2]
  • 1pc - Die for Non-Insulated Terminal [AWG 20-18 / 16-14 / 12-10 / 8] [DIN 1.5 / 2.5 / 6 / 10mm2) (JIS 1.25 / 2 / 5.5 / 8 mm2)
  • 1pc - Die for Open Barrel Terminal [AWG 22-18 / 16-14 / 12-10] [DIN 0.5-1.0 / 1.5-2.5 / 4-6 mm2]
  • 1pc - Die for Cord-End Terminal [AWG 22-18 / 16-14 / 12-10] [DIN 0.5 / 0.75 / 1.0 / 1.5 / 2.5 / 4.0 mm2]
  • 1pc - Die for Cord-End Terminal [AWG 10 / 8 / 6] [DIN 6 / 10 / 16 mm2]

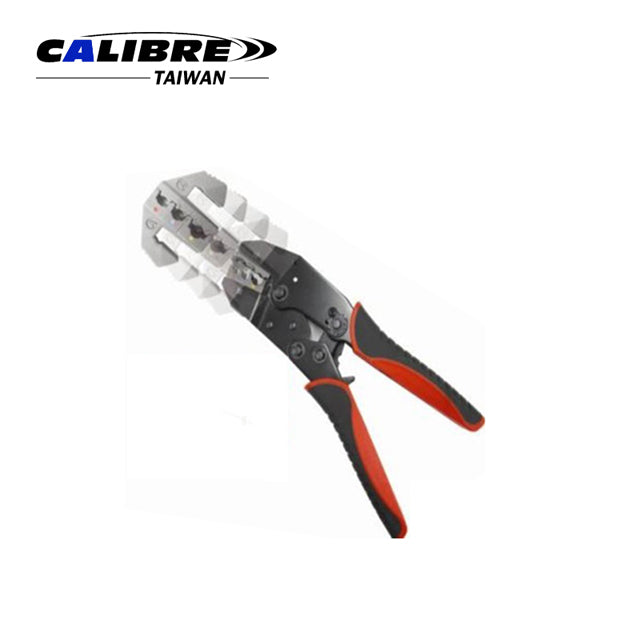

  • 1pc - Quick Change Ratchet Crimper
Die Material:
  • AISI-4140
  • Procedure: Precision and Wax-Lost Casting
  • Treatment: Finished with Heat Treatment
  • Surface Treatment: Zinc Phosphate
  • Quick Change Ratchet Crimper Material:Body: Carbon Steel
  • Handle: PP+TPR (PAHS Approved)
Packaging:

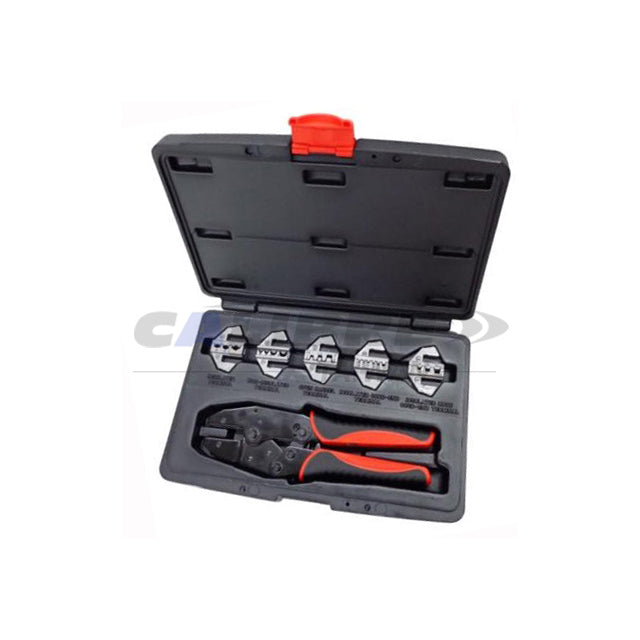

  • 1Set/Blow Mould Case
  • 10Set/12/13kgs/1.2'
