CAD0001 CALIBRE 439pc AISI Quick Change Crimper Kit

CAD0001 CALIBRE 439pc AISI Quick Change Crimper Kit

Die:
  • Material: AISI-4140
  • Precision and Wax-Lost Casting
  • Treatment: Finished with Heat Treatment (HRC 43°~45°),
  • Surface treatment: Zinc Phosphate

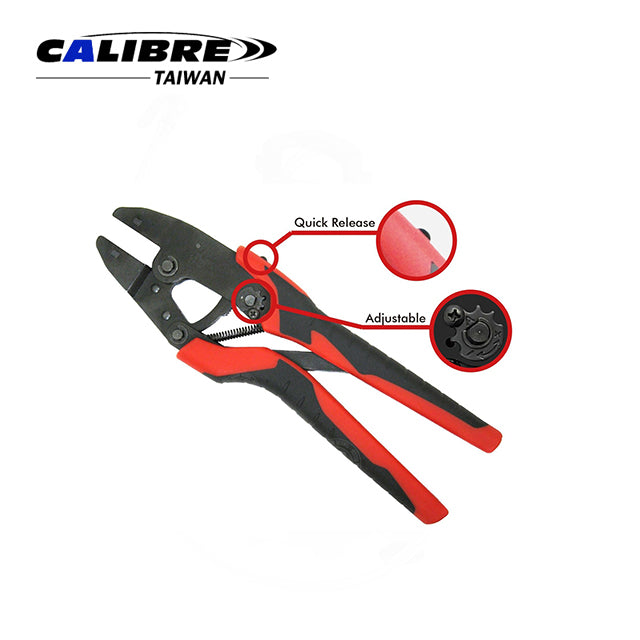

10” Ratchet crimper:
  • Body: Carbon Steel
  • Handle: PP+TPR(PAHS Approved)

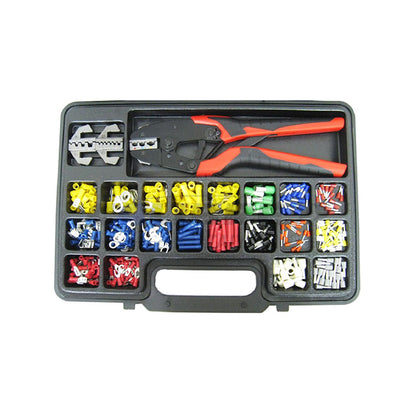

Contents:
  • 10" Quick Change Ratchet Crimper(HJ50) X 1PCE
  • Die for Insulated Terminal (HJ12-A) X 1Set
  • Die for Cord-End Terminal (For Small Size) (HJ12-D) X 1Set
  • Die for Cord-End Terminal (For Large Size) (HJ12-F) X 1Set
  • Ins-Butt Connectors[AWG22-16][0.5~1.5mm2] X 15PCE
  • Ins-Ring Terminal#6[AWG22-16] [0.5~1.5mm2] X 15PCE
  • Ins-Ring Terminal#8[AWG22-16] [0.5~1.5mm2] X 15PCE
  • Ins-Male Disconnectors[AWG 22-16][0.5~1.5mm2] X 15PCE
  • Ins-Female Disconnectors[AWG 22-16][0.5~1.5mm2] X 15PCE
  • Ins-Butt Connectors[AWG16-14][1.5~2.5mm2] X 15PCE
  • Ins-Ring Terminal#6[AWG16-14] [1.5~2.5mm2] X 15PCE
  • Ins-Ring Terminal#8[AWG16-14] [1.5~2.5mm2] X 15PCE
  • Ins-Spade Terminal#1/4[AWG12-10][4~6mm2] X 15PCE
  • Ins-SpadeTerminal#8[AWG22-16] [0.5~1.5mm2] X 15PCE
  • Ins-Butt Connectors[AWG12-10][4~6mm2] X 15PCE
  • Ins-Male Disconnectors[AWG12-10][4~6mm2] X 15PCE
  • Ins-Female Disconnectors[AWG12-10][4~6mm2] X 15PCE
  • Ins-Spade Terminal#10[AWG16-14][1.5~2.5mm2] X 15PCE
  • Ins-Ring Terminal#5/16[AWG12-10][4~6mm2] X 15PCE
  • Ins-Ring Terminal#1/4[AWG12-10][4~6mm2] X 15PCE
  • Ins-Male Disconnectors[AWG 16-14][1.5~2.5mm2] X 15PCE
  • Ins-Female Disconnectors[AWG 16-14][1.5~2.5mm2] X 15PCE
  • Ins-Piggy Back Disconnectors[AWG22-16][0.5~1.5mm2] X 15PCE
  • Ins-Piggy Back Disconnectors[AWG 16-14][1.5~2.5mm2] X 15PCE
  • Cord End 0.5mm2/L:8mm [Orange] X 15PCE
  • Cord End 0.75mm2/L:8mm [White] X 15PCE
  • Cord End 1.0mm2/L:8mm[Yellow] X 15PCE
  • Cord End 1.5mm2/L:8mm [Red] X 15PCE
  • Cord End 2.5mm2/L:8mm [Blue] X 15PCE
  • Cord End 4.0mm2/L:10mm[Grey] X 15PCE
  • Cord End 6.0mm2/L:12mm[Black] X 15PCE
  • Cord End 10mm2/L:12mm [Ivory] X 15PCE
  • Cord End 16mm2/L:12mm [Green] X 15PCE
Packaging:
  • 1Set/Blow Mould Case
  • 10Set/18.4/19.4KGS/2.7’
