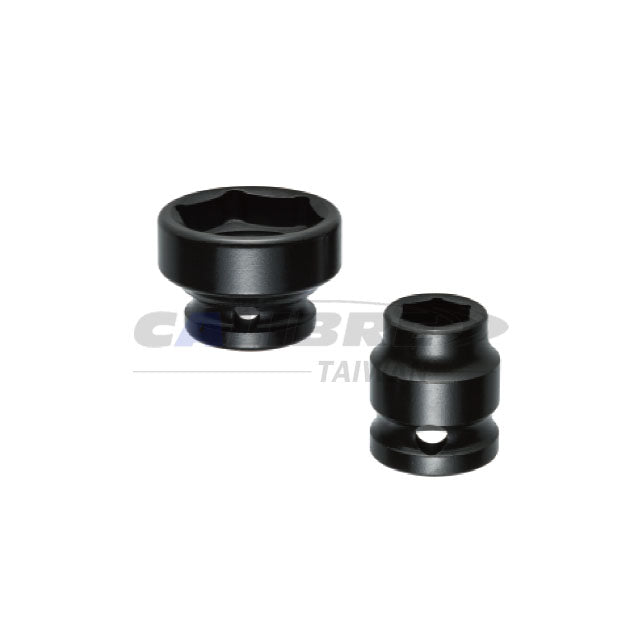

CAC80013 TAIWAN Extra short Impact Sockets 3/8", 6pt & 12pt, MM & SAE sizes

CAC80013 TAIWAN Extra short Impact Sockets 3/8", 6pt & 12pt, MM & SAE sizes

impact socket 3 8

3/8" Extra short Impact Socket (MM) 6PT, 8-24mm

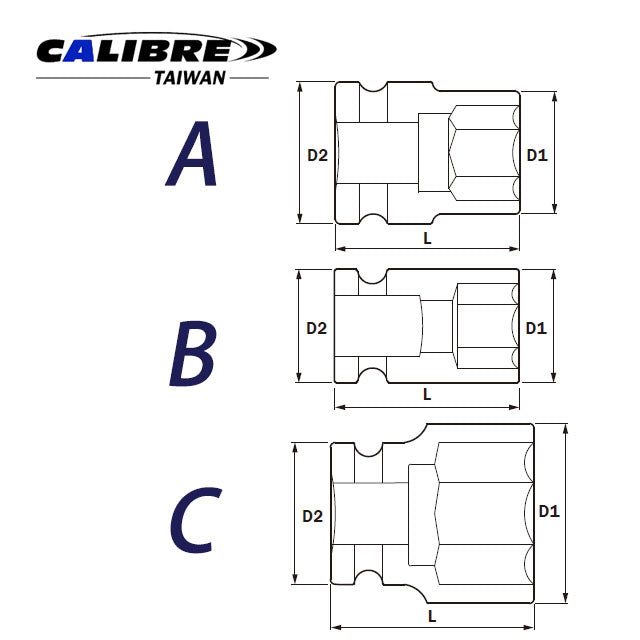

TYPE SIZE L (MM) D2 D1
A 8 22 19 13.5
9 22 19 14.5
10 22 19 15.8
11 22 19 17
12 22 19 18.2
13 22 22 19.5
14 22 22 20.8
B 15 22 22 22
C 16 22 22 23.8
17 22 22 23.8
18 22 22 25.8
19 22 22 27.8
20 22 22 27.8
21 22 22 29.8
22 22 22 31.8
23 22 22 31.8
24 22 22 33.8


3/8" Extra short Impact Socket (SAE) 12PT, 1/4"-1"


TYPE SIZE L(MM) D2 D1
A 1/4" 22 19 11.3
5/16" 22 19 13.5
3/8" 22 19 14.6
7/16" 22 19 17.1
1/2" 22 19 19
B 9/16" 22 22 22
C 5/8" 22 22 23.5
11/16" 22 22 24
3/4" 22 22 28
13/16" 22 22 30
7/8" 22 22 32
15/16" 22 22 32
1" 22 22 34


Material:

  • CRMO

Feature:

  • Made in Taiwan
Packaging:
  • 1pc/Bulk
