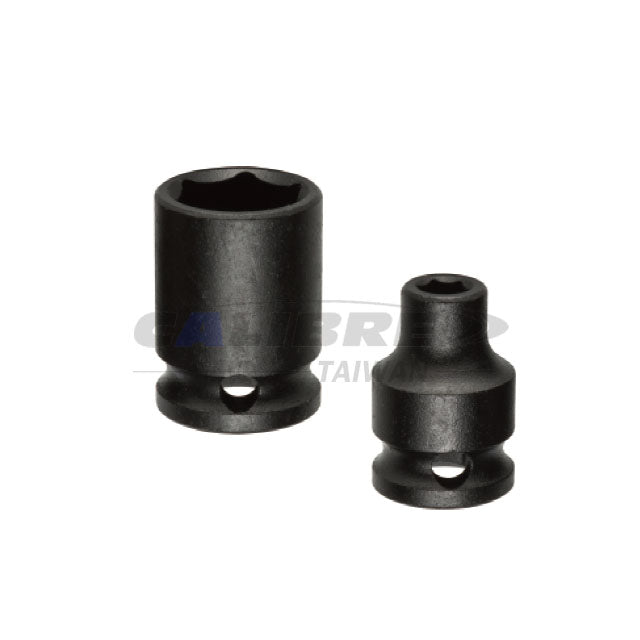

CAC80011 TAIWAN Impact Sockets 3/8", 6pt & 12pt, MM & SAE sizes

CAC80011 TAIWAN Impact Sockets 3/8", 6pt & 12pt, MM & SAE sizes

impact socket 3 8

3/8" Impact Socket (MM) 6PT & 12PT, 6-24mm

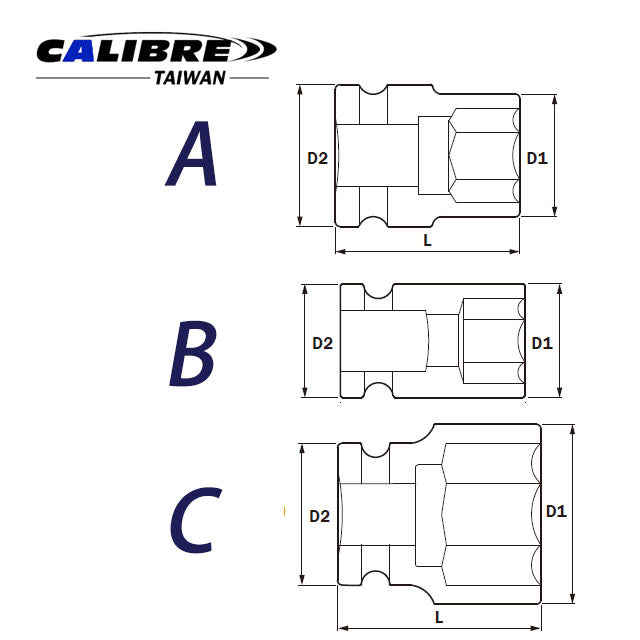

TYPE SIZE L (MM) D2 D1
A 6 28 19 11.3
7 28 19 12.1
8 28 19 13.5
9 28 19 14.5
10 28 19 15.8
11 30 19 17
12 30 19 18.2
13 30 22 19.5
14 30 22 20.8
B 15 30 22 22
C 16 30 22 23.8
17 30 22 23.8
18 30 22 25.8
19 30 22 27.8
20 30 22 27.8
21 30 22 29.8
22 30 22 31.8
23 30 22 31.8
24 32 22 33.8


3/8" Impact Socket (SAE) 6PT & 12PT, 1/4"-1"



類型  尺寸 L(MM) D2 D1
A 1/4" 28 19 11.3
5/16" 28 19 13.5
3/8" 28 19 14.6
7/16" 30 19 17.1
1/2" 30 19 19
B 9/16" 30 22 22
C 5/8" 30 22 23.5
11/16" 30 22 24
3/4" 30 22 28
13/16" 30 22 30
7/8" 30 22 32
15/16" 32 22 32
1" 32 22 34


Material:

  • CRMO

Feature:

  • Made in Taiwan
Packaging:
  • 1pc/Bulk
