Projen Taiwan

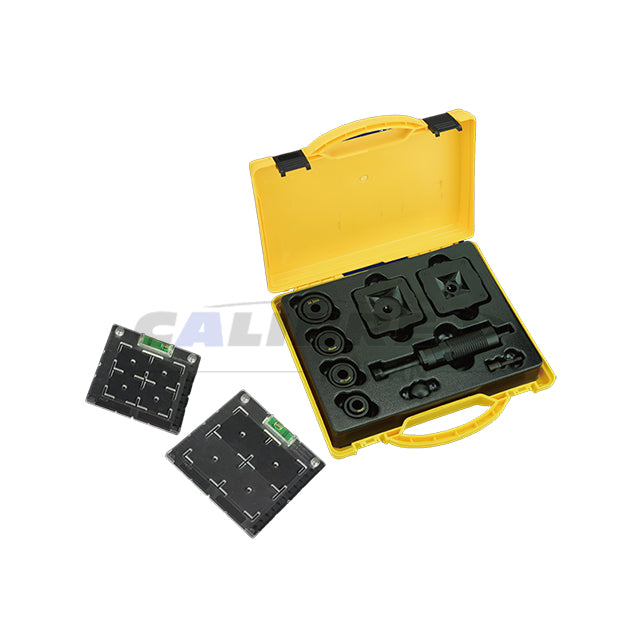

CAC520001B TAIWAN CALIBRE Knockout Punch Set (Round Hole & Square Hole)

CAC520001B TAIWAN CALIBRE Knockout Punch Set (Round Hole & Square Hole)

Knockout punch

Knockout punch: Designed for punching clean round or square holes in sheet metal for electrical boxes and panels. Works with 14.4V+ impact drivers. Cuts stainless (1.2 mm) and mild steel (1.6 mm). Lightweight, safe, and efficient.

Size:

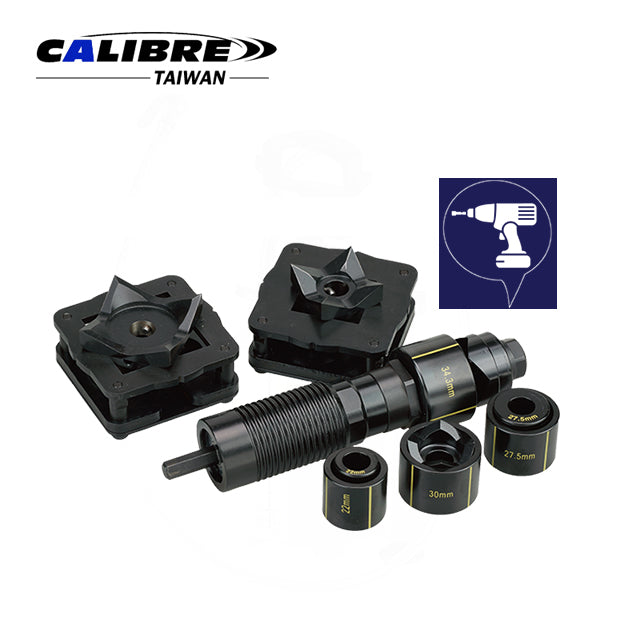

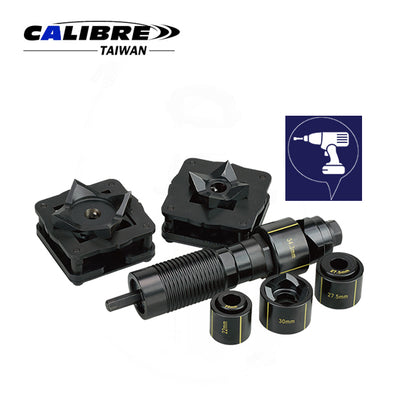

  • Punch dies: Ø22、27.5、30、34.3mm
  • Square Punch die: 33.5x33.5mm、45x45m
  • Square Ruler: 68x68mm、92x92mm

Material:

  • Punch dies: SKD-61
  • Square Ruler: PC & magnet

Feature:

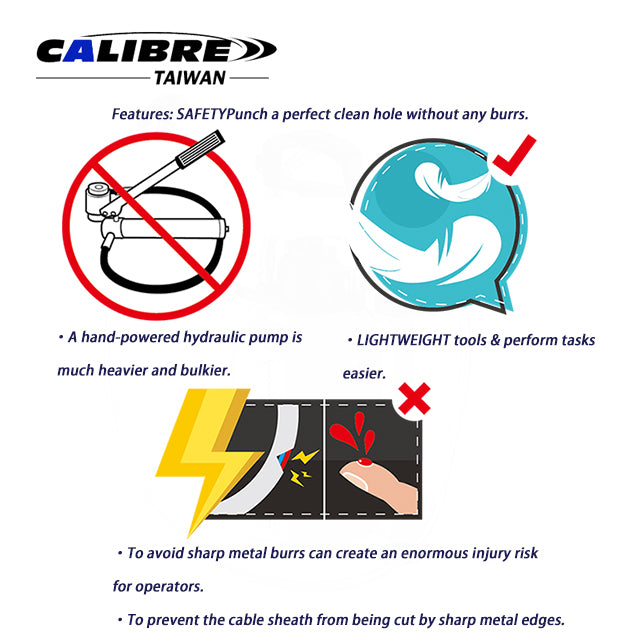

  • Safety- Punch a perfect clean round or square hole without any burrs.
  • Cutting capacity 1.2mm stainless steel; 1.6mm mild steel
  • Lightweight tools and perform tasks easier.
  • For use with 14.4V or the higher voltage impact driver (Torque range 120~150Nm)

Application:

  • Punch round holes and square holes in sheet metal.
  • Ideal for electricity controlling boxes, panels.

Specification:

  • Square Punch die 45x45mm: Punch 2 times for 45*92mm square hole; Punch 4 times for 92*92mm square hole
  • Ø12.3mm bearing driving bolt (w/groove) with 19mm set nut
    Bolt: SCM-415; Body: Aluminum alloy ADC-12
  • Extra 19mm set nut
  • Adaptor: 1/4" Hex Shank, 8*L45mm
Packaging:
  • 1Set/Blow Mould Case
  • 6Set/15.8/16.8kgs/1.11'
