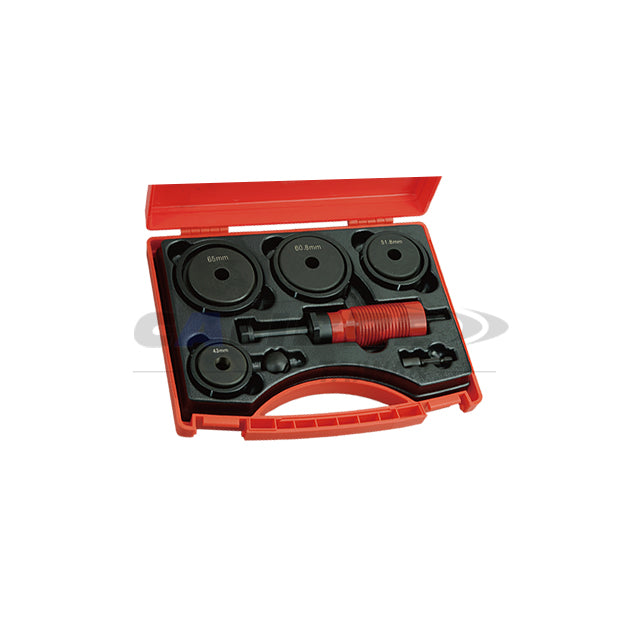

CAC520001A TAIWAN CALIBRE Knockout Punch Set (Round Hole)

CAC520001A TAIWAN CALIBRE Knockout Punch Set (Round Hole)

Knockout punch set

Knockout punch set: Punch clean round holes in sheet metal for electrical boxes and panels. Use appropriate SKD-61 punch die with impact driver (14.4V+). Two-step method for Ø65 mm. Cuts stainless (1.2 mm) and mild steel (1.6 mm) safely. Lightweight, easy handling.

Size:

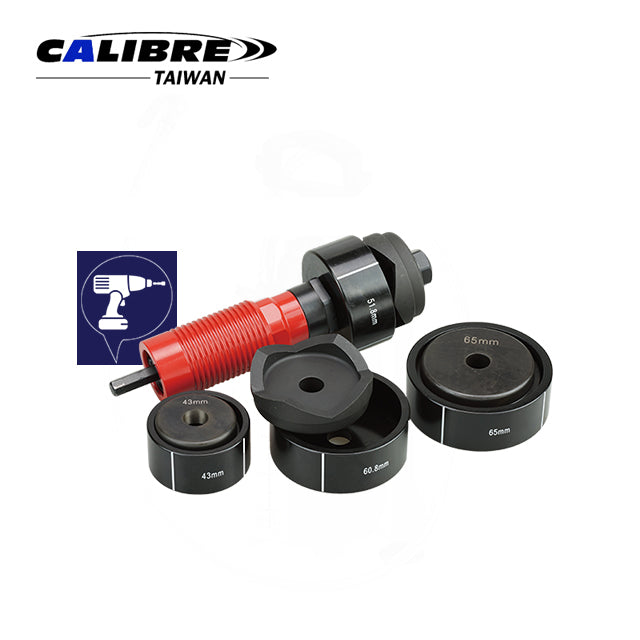

  • Punch dies: Ø43、51.8、60.8、65mm

Material:

  • SKD-61

Feature:

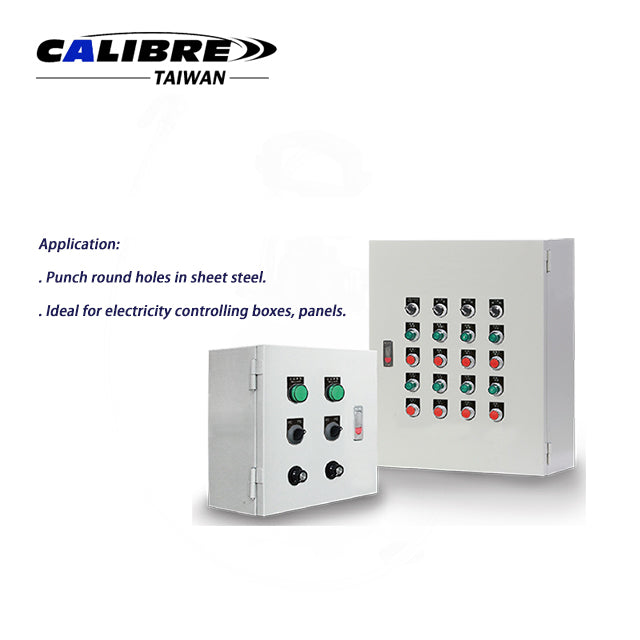

  • Punch round holes in sheet metal. Ideal for electricity controlling boxes, panels.

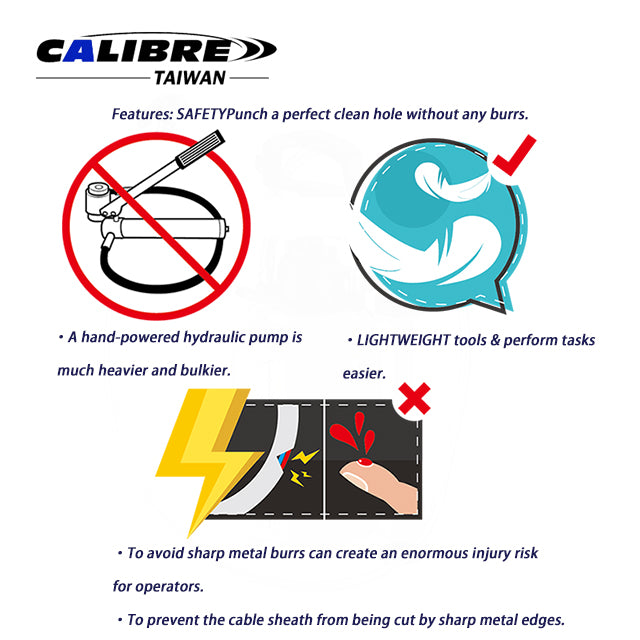

  • Safety- Punch a perfect clean round hole without any burrs.
  • Cutting capacity 1.2mm stainless steel; 1.6mm mild steel
  • Lightweight tools and perform tasks easier.
  • For use with 14.4V or the higher voltage impact driver (Torque range 120~150Nm)

Specification:

  • Two-step punching for large-hole φ65mm:
    Step 1 - punch a Ø43mm hole,
    Step 2 - enlarge hole with a Ø65mm Punch dies
  • Ø12.3mm bearing driving bolt with 19mm set nut
    Bolt: SCM-415; Body: Aluminum alloy ADC-12
  • Extra 19mm set nut
  • Adaptor: 1/4" Hex Shank, 8*L45mm
Packaging:
  • 1Set/Blow Mould Case
  • 6Set/15.8/16.8kgs/0.72'
