Projen Taiwan

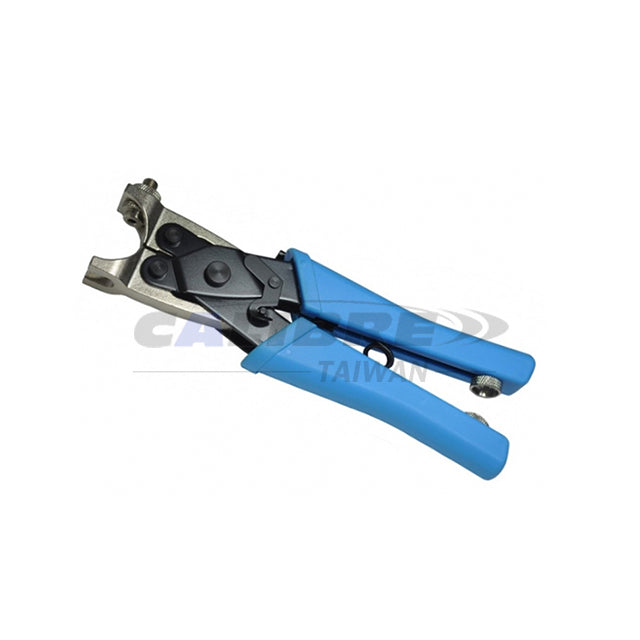

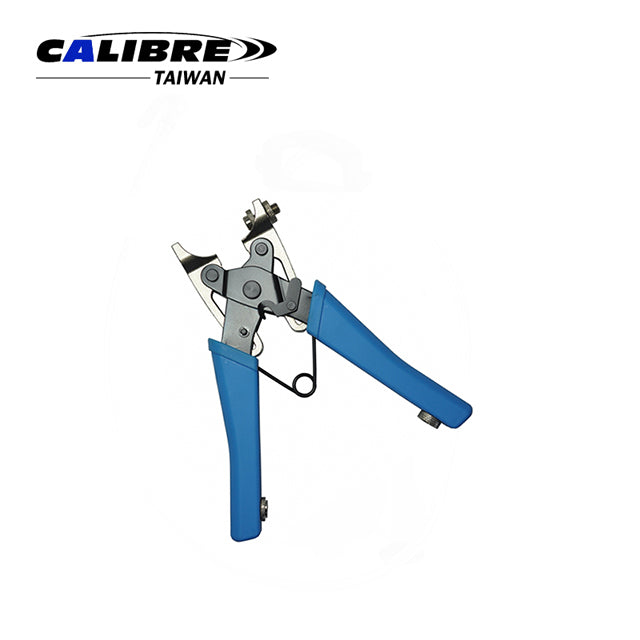

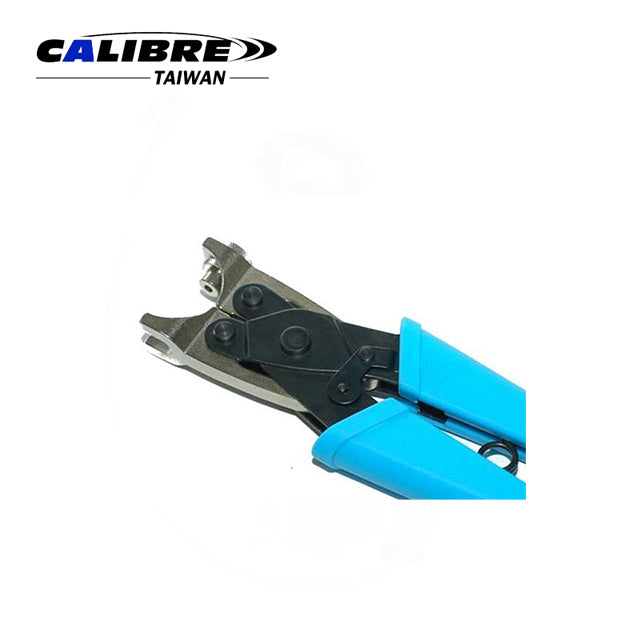

CAC510001 TAIWAN CALIBRE Waterproof Connector Crimper

CAC510001 TAIWAN CALIBRE Waterproof Connector Crimper

Connector crimping

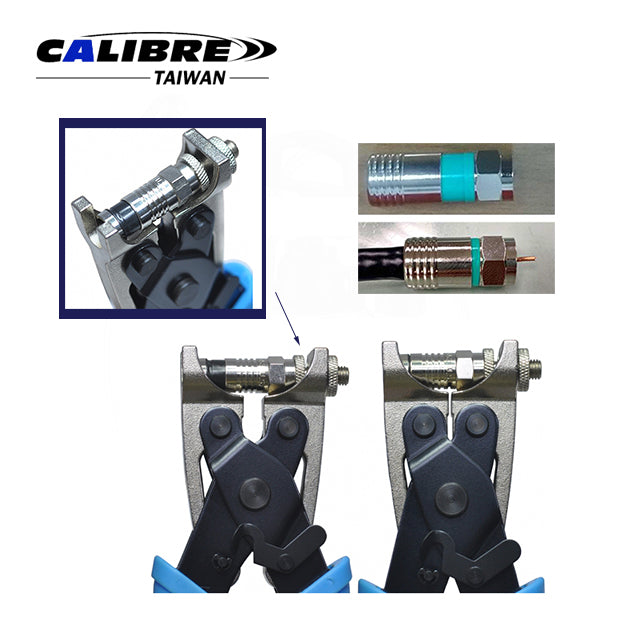

Connector crimping instructions for CAC510001: Align the cable and waterproof F, RCA, or BNC component using RG-59 or RG-6 coax. Adjust the tool height for your specific compression fitting. Insert the assembly into the carbon steel jaws, then squeeze the grips completely. The parallel mechanism ensures a precise, secure, and weatherproof connection.

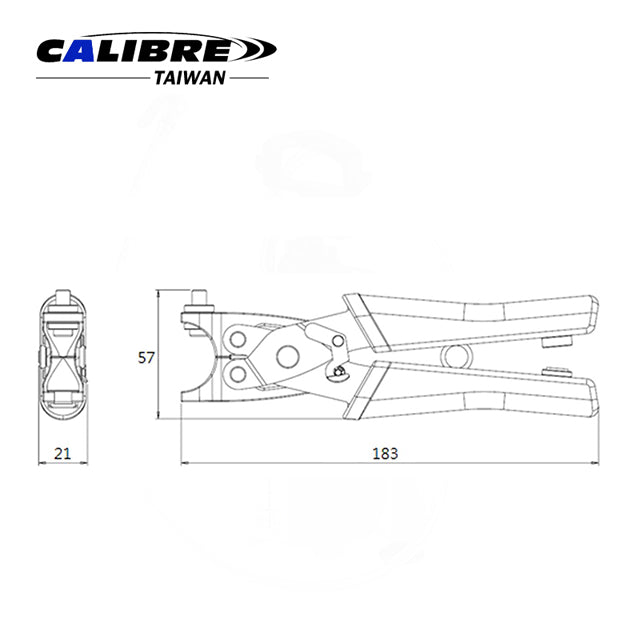

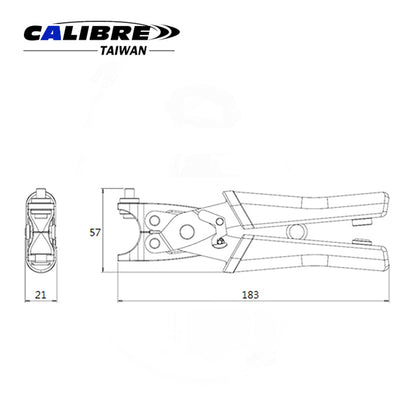

Size:

  • Length: 183mm
  • Width: 57mm
  • Thickness: 21mm
  • Weight: 301g

Material:

  • Body: Carbon steel
  • Crimper: Medium carbon steel
  • Grip: PP+PE

Feature:

  • For F, RCA, BNC waterproof connectors with RG-59(4C), RG-6(5C).
  • Height is adjustable for compression connectors.
  • Parallel crimping structure to ensure precise performance.
Packaging:
  • 1pc/White Box
  • 40pc/13.5/14.5kgs/0.9'
