• 6” Vacuum Mounting Cup
  • 6” Vacuum Mounting Cup
1 2

Projen Taiwan

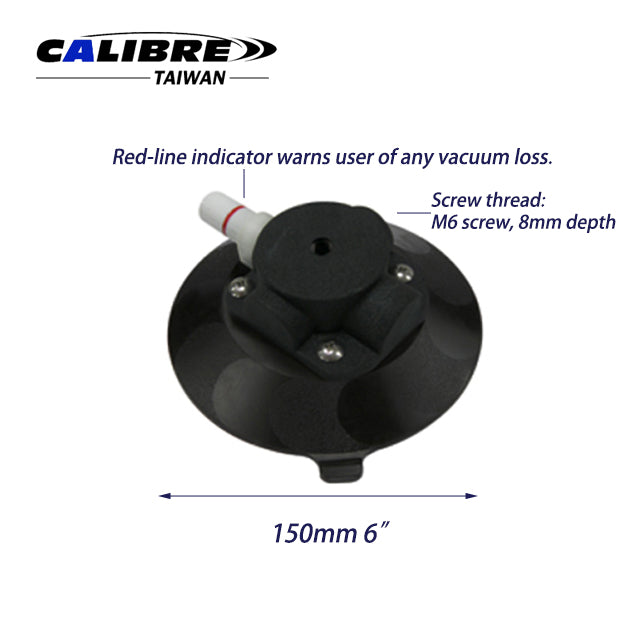

CAC0021 TAIWAN CALIBRE 6” Vacuum Mounting Cup

CAC0021 TAIWAN CALIBRE 6” Vacuum Mounting Cup

Suction cup for window

Suction cup for window usage provides instant holding power. First, clean smooth surfaces. Next, press the vacuum pad firmly against flat or curved glass. Then, pump the mechanism repeatedly until the red-line indicator fully disappears. Subsequently, attach equipment via the M6 threaded stud safely up to 30kgs. Finally, pull lift tabs for quick release and place the protector.

Size:

  • Diameter: 150mm,6”
  • Loading capacity: 30kgs
  • Weight: 50kgs
  • Screw thread: M6 screw, 8mm depth

Feature:

  • Durable polycarbonate accessory mount with threaded stud for attaching equipment.
  • Studs available in various lengths and threads, including metric size.
  • Provide a reliable, temporary vacuum mount, without drilling holes.
  • Rubber vacuum pad will not mark or damage most surfaces.
  • Attaches to flat or curved, smooth, nonporous surfaces.
  • Red-line indicator warns user of any vacuum loss.
  • Check valve allows repumping without loss of remaining vacuum.
  • Lift tabs on vacuum pad edges permit instant release.
  • Supplied with vacuum pad protector.

Material:

  • Main Body: Plastic
Packaging:
  • 1pc/Corrugated Box
  • 20pc/9/10kgs/2.75'
