CAB600027 TAIWAN CALIBRE VDE Insulated Torque Wrench

CAB600027 TAIWAN CALIBRE VDE Insulated Torque Wrench

Size

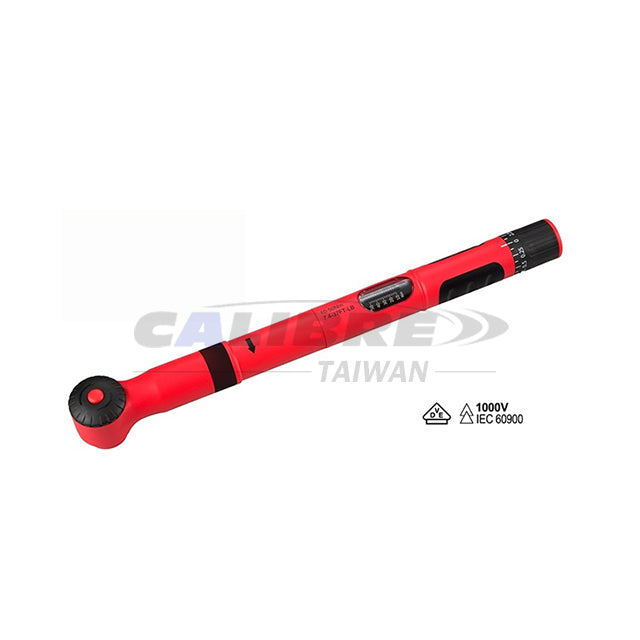

Insulated torque wrench

An insulated torque wrench like the TAIWAN CALIBRE VDE ensures safety up to 1000V AC. First, select the proper drive size and scale. Subsequently, pull out the collar to adjust the torque accurately. Meanwhile, verify the settings via the dual-scale window. Furthermore, lock it back securely. Finally, apply it clockwise or counterclockwise until it clicks, thereby achieving a +/-3% precise fastening.

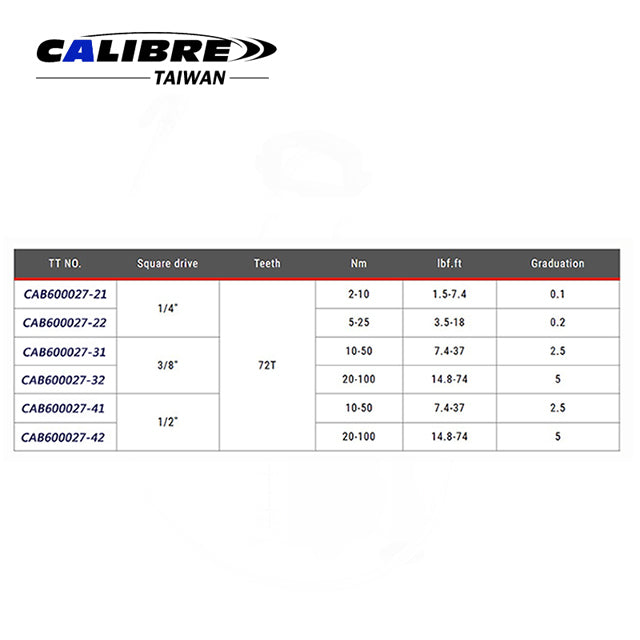

Size:

  • CAB600027-21: 1/4" Dr. 72T, 2~10Nm / 1.5~7.4 lbf.ft
  • CAB600027-22: 1/4" Dr. 72T, 5~25Nm / 3.5~18 lbf.ft
  • CAB600027-31: 3/8" Dr. 72T, 10~50Nm / 7.4~37 lbf.ft
  • CAB600027-32: 3/8" Dr. 72T, 20~100Nm / 14.8~74 lbf.ft
  • CAB600027-41: 1/2" Dr. 72T, 10~50Nm / 7.4~37 lbf.ft
  • CAB600027-42: 1/2" Dr. 72T, 20-100Nm / 14.8~74 lbf.ft

Feature:

  • Tolerance of torque +/-3%.

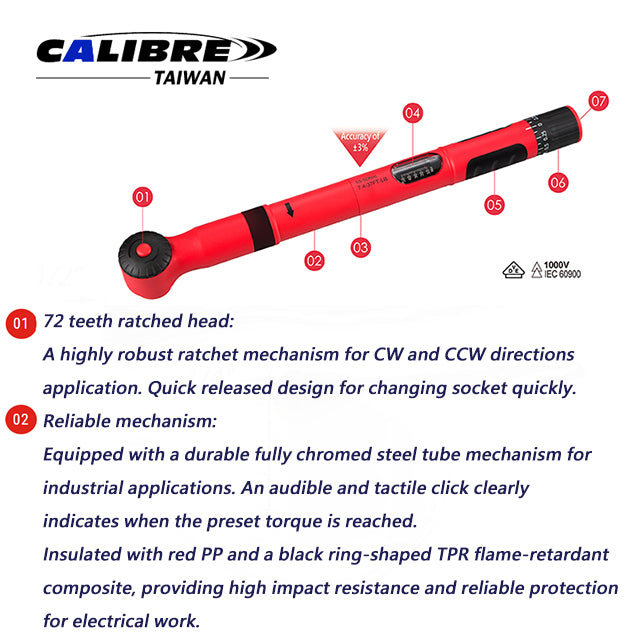

  • Insulated click types torque wrench with robust 72 teeth ratchet.
  • Quick release design.

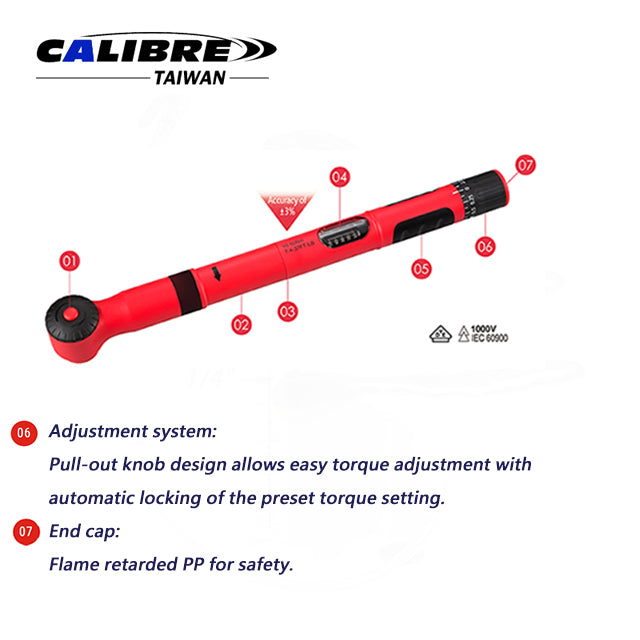

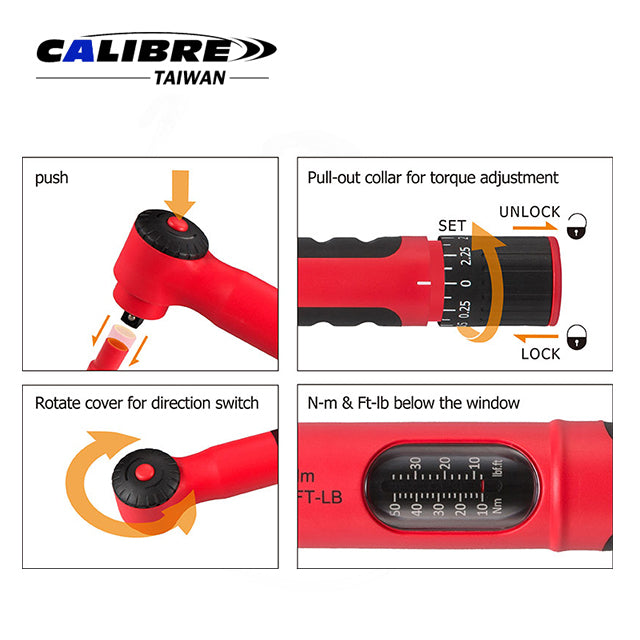

  • Consequently, the pull-out collar design simplifies torque adjustment, thereby saving energy.
  • Additional micrometer scale for accurate torque setting.

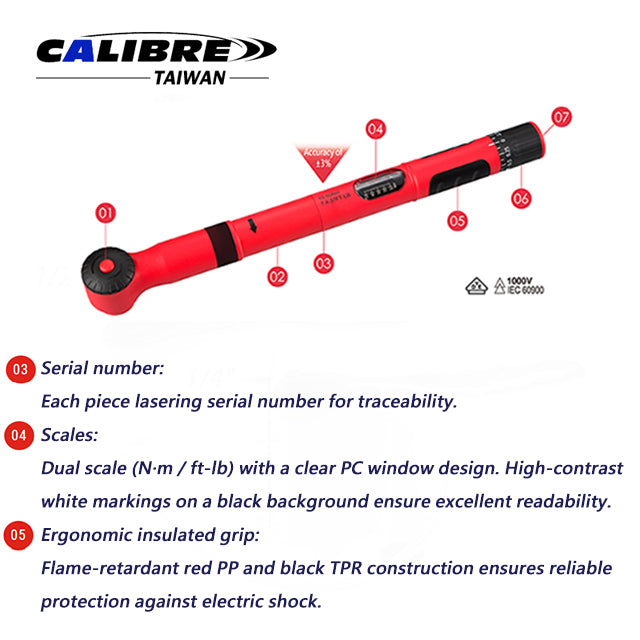

  • Easy-to-read dual scale N-m and Ft-lb below the window.
  • Applied to both clockwise and counterclockwise directions.
  • Ensure safety on electrical equipment up to 1000V AC or 1500V DC.
  • Ideal for use on hybrid and electric vehicles.
  • Ergonomic insulated grip provides protection against electric shock.
  • Quality meets VDE international standard - IEC 60900.
  • Quality meets DIN ISO 6789 & ASME B107.300.2010.
Packaging:

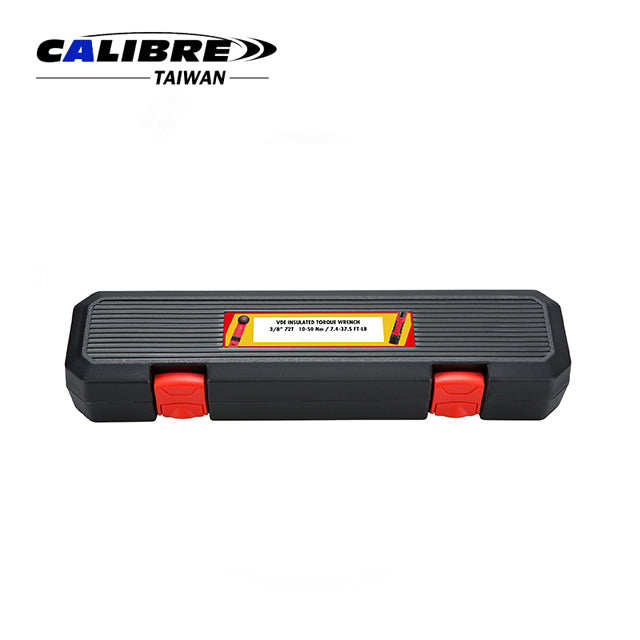

  • 1pc/Blow Mould Case
  • 12pc/14.86/15.66kgs/1.84'
